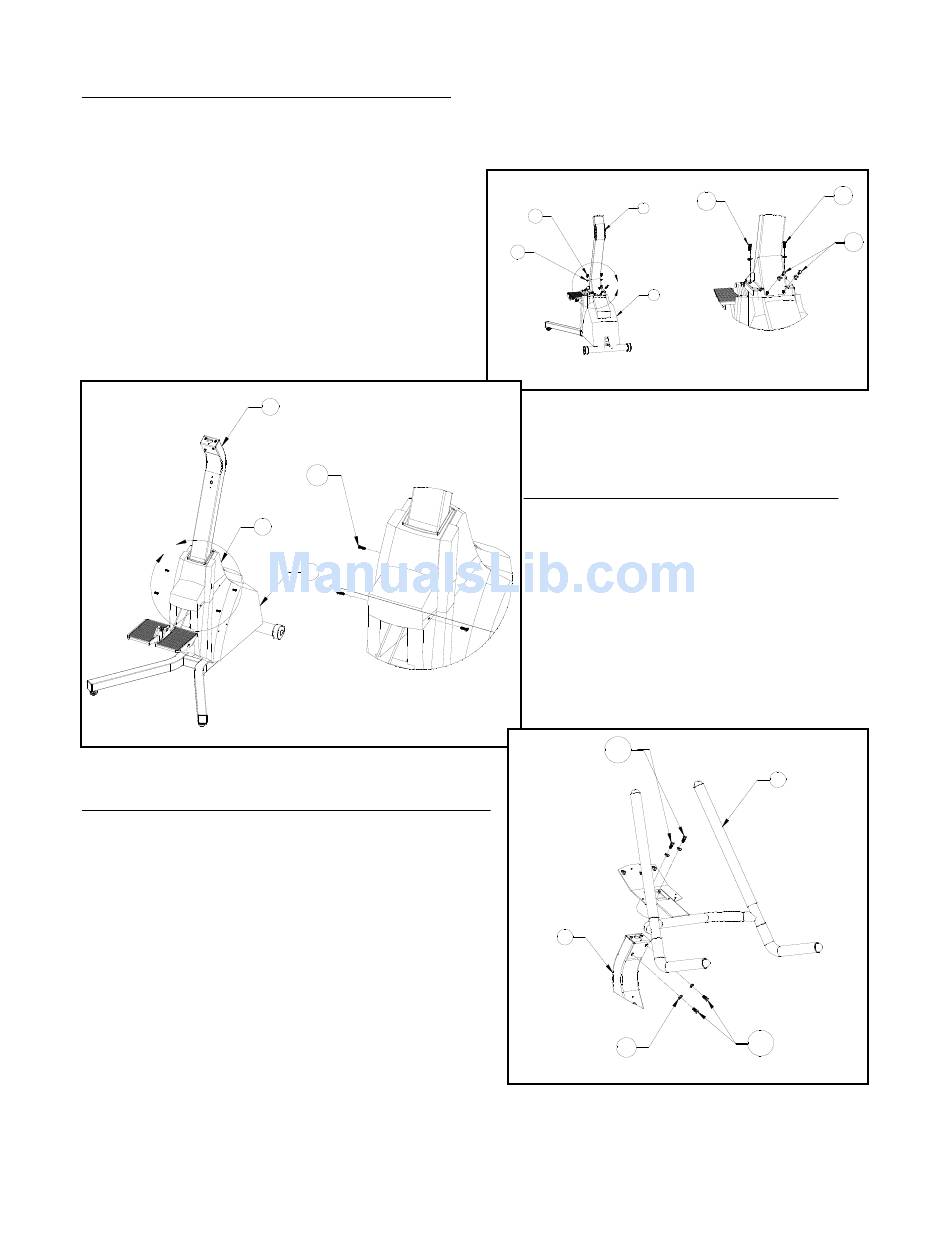

Attaching the Display Upright to the Base

Attach the display cable on the bottom of the display upright (2) to the end of the display
cable on the base frame (1). Make sure the cable connector latches snap into place.
Attach the display upright (2) to the base frame
(1) using four 5/16" screws (14) and four 5/16"
lock was hers (15). Tighten all screws by hand
first, then tighten the screws labeled 14a with a
wrench, followed by the screws labeled 14b.
See Figure 2.
4
3A
Figure 3 - Attaching the Display Upright Collar

Attaching the Handrails to the Display Upright

Place the handrails (3) on the end of the display
upright (2), as shown in Figure 4. Make sure the
handrail bracket hooks over the tab on the end of
the display upright, and the display cable passes
through the handrail bracket. This keeps the
handrails in place until the you tighten the screws.
Install the four 5/16" screws (14) and four 5/16"
lock washers (15), tightening them all by hand.
Finish tightening the screws with a wrench,
tightening the screws labeled 14a first, then those
labeled 14b.
Cybex 800S Stepper Owner's Manual
2
16
1
DETAIL 3A
Page 2-3
2
14
15
2A
1
Figure 2 - Attaching Display Upright

Installing the Display Upright Collar

Slide the display upright collar (4) down
over the display upright (2) and attach to
the base frame cover (1) using four #10
screws (16), as shown in Figure 3.
14d
2
15
Figure 4 - Attaching the Handrails
14b
14b
14a
DETAIL 2A
3
14c
