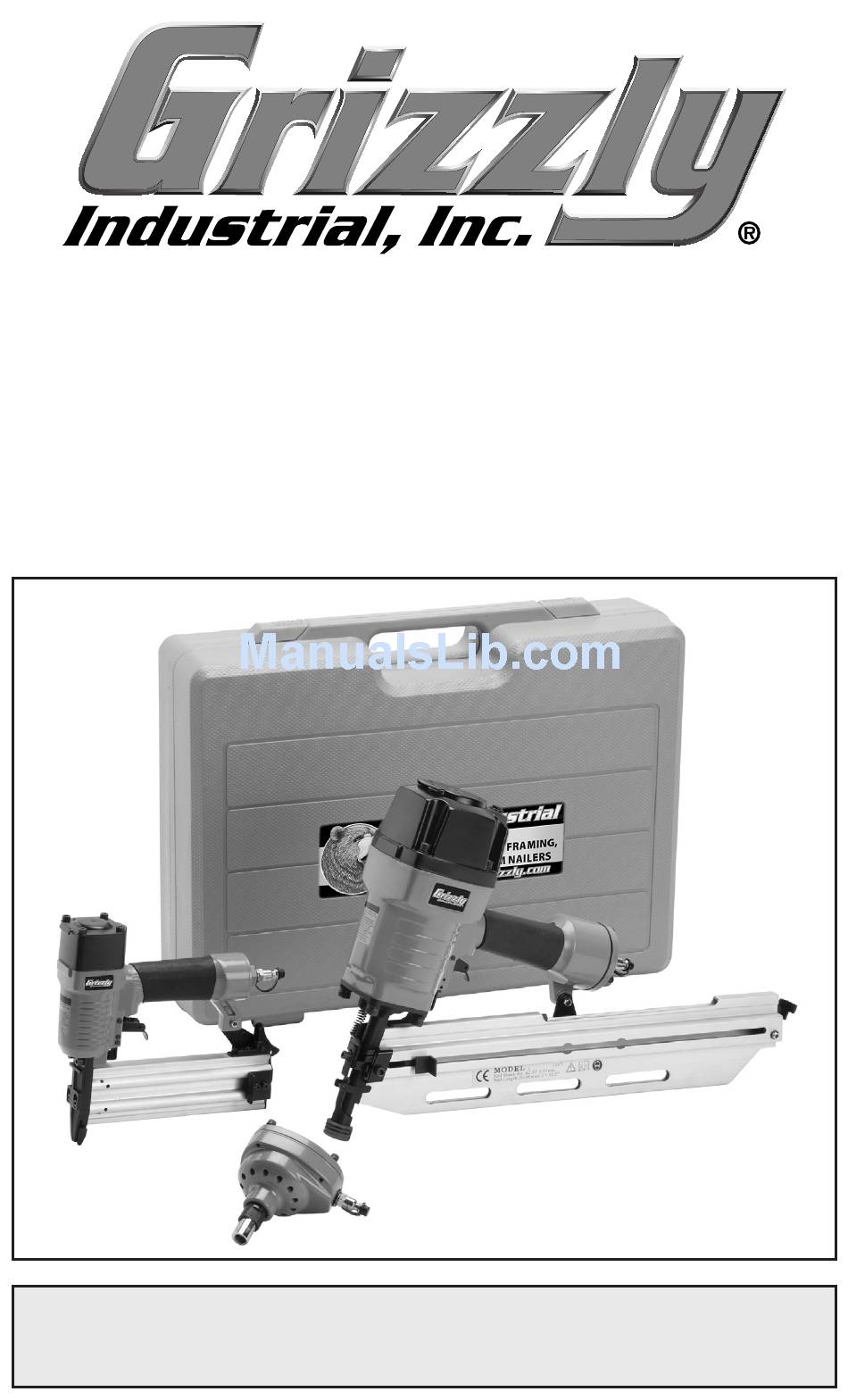

3-piece framing/brad/palm nailer kit

Advertisement

Quick Links

MODEL H8235
3-PIECE FRAMING/BRAD/PALM
NAILER KIT
OWNER'S MANUAL
COPYRIGHT © SEPTEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TS9832 PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H8235 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grizzly H8235

  • Page 1 3-PIECE FRAMING/BRAD/PALM NAILER KIT OWNER'S MANUAL COPYRIGHT © SEPTEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #TS9832 PRINTED IN CHINA...
  • Page 2 ���� ������ �������� �������� ������ ������������ �� ��� ������ ������ ���������� ����������� ��� ������� �� ���� ������������������ ������� �� ����� ���������� ��� ������ ��� ������������ ����� �� ���� ������ ��� ������ �� ������� �������� ������� ��������� ����������� ������������� �� ������ ���...
  • Page 3: Safety Instructions For Pneumatic Tools

    Keep work area well lighted. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit SAFETY Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
  • Page 4 24. BE AWARE OF HOSE LOCATION WHEN RISK TOOLS. Hoses can easily become a tripping hazard when laid across the floor or spread out in a disorganized fashion. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit TOOLS before RECOMMENDED recommended ALLOW UNTRAINED...
  • Page 5: Additional Safety Instructions For Nailers

    5. CHECK VALVE: Do not use a check valve or any other fitting that allows air to remain in the tool. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit 6. HOSE USAGE: Make sure your air hose is designed for the tool in use, is in good condition, and is long enough to reach your work without stretching.
  • Page 6 Use this and other tools with caution and respect. Failure to do so could result in seri- ous personal injury, damage to equip- ment or poor work results. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit...
  • Page 7: Tool Data

    Foreword The specifications, details, and photo- graphs in this manual represent the Model H8235 as supplied when the manual was prepared. However, owing to Grizzly’s pol- icy of continuous improvement, changes may be made at any time with no obliga- tion on the part of Grizzly.
  • Page 8 D. Carrying Case ... 1 E. Palm Nailer ... 1 F. Hex Wrench Set (3–6mm) ... 1 G. Tool Oil Bottle ... 1 H. Leather Palm Nailer Pouch ... 1 Figure 1. Model H8235 inventory. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit Inventory...
  • Page 9: Compressed Air System

    Compressed Air System The Model H8235 is designed to be oper- ated at the following air pressures using clean, dry, regulated, compressed air: Nailer Operating Air Pressure Framing ... 80–100 PSI Brad ... 60–100 PSI Palm ... 70–100 PSI DO NOT exceed the 120 PSI maximum operating pressure for your nailer.
  • Page 10 DO NOT attempt to modify or bypass the safety nose mechanism to make the nailers fire without pushing the safety nose down. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit...
  • Page 11 Loading When replacing nails in your Model H8235 framing and brad nailers follow these guidelines: Framing Nailer Nail Size ... ⁄ Nail Strip Angle ...21º Round Head Length...2"–3 Magazine Capacity ... 60 Nails To load your framing nailer: 1. DISCONNECT NAILER FROM THE AIR SUPPLY! 2.
  • Page 12 — If the nail drove into the wood far enough, continue with your intended operations. — If the nail either went too far or not far enough, then go to the Adjusting Depth section on the next page. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit knots, foreign...
  • Page 13 Doing so could cause the safety nose mechanism to malfunction and cause personal injury. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit Adjusting Framing Nailer Depth Depending on the type of stock and nails you are using, it may be necessary to adjust the depth of nail penetration for your framing nailer.
  • Page 14: Clearing Jammed Nails

    DO NOT use dirty or damaged nails! 8. Push the magazine cover all the way forward until the magazine latch locks it in place. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit...
  • Page 15: Replacing Pistons/O-Rings

    During mainte- nance, a nailer connected to air may fire accidentally, causing serious per- sonal injury! Model H8235 3-Piece Framing/Brad/Palm Nailer Kit Framing & Brad Nailer To replace a piston for your framing or brad nailer: 1. DISCONNECT NAILER FROM THE AIR SUPPLY! 2.
  • Page 16 19mm wrench to tighten the nose piece. Note: For more assistance, or to install a complete O-ring set, refer to the appropriate breakdown diagram in the back of this manual for component locations. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit...
  • Page 17: Cleaning And Lubrication

    Ignoring this warning may lead to serious personal injury or even death! Model H8235 3-Piece Framing/Brad/Palm Nailer Kit Lubricating Standard pneumatic tool oil has been included with your new Grizzly nailer to help maintain its useful life.
  • Page 18 �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� Model H8235 3-Piece Framing/Brad/Palm Nailer Kit �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��...
  • Page 19 PH7665044 COMPRESSION SPRING PH7665045 SAFETY YOKE PSB03M CAP SCREW M5-.8 X 8 PW02M FLAT WASHER 5MM PH7665048 SAFETY NOSE Model H8235 3-Piece Framing/Brad/Palm Nailer Kit REF PART # DESCRIPTION PH7665049 DEPTH ADJUSTMENT NUT PH7665050 COPPER COLLAR PH7665051 SAFETY NOSE CASE PORS060 O-RING 59.5 X 2.0 S60...
  • Page 20 Brad Nailer Parts Breakdown Model H8235 3-Piece Framing/Brad/Palm Nailer Kit...
  • Page 21 PORP011-2 O-RING 11 X 2.4 P11.2 PH8235129 COMPRESSION SPRING PH8235130 STEP PIN PH8235131 TRIGGER PEC01M E-CLIP 3MM PH8235133 SAFETY PLATE Model H8235 3-Piece Framing/Brad/Palm Nailer Kit REF PART # DESCRIPTION PH8235134 PIN PH8235135 BRACKET PH8235136 COMPRESSION SPRING PH8235137 SAFETY NOSE...
  • Page 22 PH6141019 SPECIAL WASHER 9 X 20 X 1 PH6141020 COMPRESSION SPRING PH6141021 DEPTH GUIDE PH6141022 MAGNET PH6141023 NOSE PIECE M20-1.5 X 37 PW02M PH6141025 LEATHER POUCH PH6141026 PISTON REPAIR KIT PH6141027 O-RING REPAIR KIT Model H8235 3-Piece Framing/Brad/Palm Nailer Kit ��� DESCRIPTION FLAT WASHER 5MM...
  • Page 23: Troubleshooting

    Nailer does not fire. 1. Nailer is not lubricated. 2. Nail is jammed in magazine or 3. Piston shaft is damaged. 4. Air pressure too low. Model H8235 3-Piece Framing/Brad/Palm Nailer Kit are damaged. from moving freely in maga- zine.
  • Page 24: Warranty And Returns

    WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of mainte- nance.
