Page 1: Instruction Manual

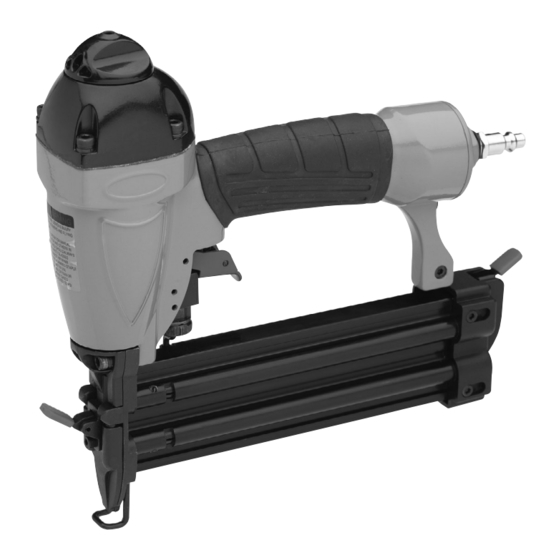

2" NAILER KIT MODEL H7679 INSTRUCTION MANUAL COPYRIGHT © JUNE, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED DECEMBER, 2007 (TS) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. -
Page 2: Safety Instructions For Pneumatic Tools
For Your Own Safety Read Instruction Manual Before Operating This Equipment The purpose of safety symbols is to attract your attention to possible hazard- ous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. - Page 3 UNINTENTIONAL STARTING. Do not carry tool with hand on trig- ger and always disconnect from air when not in use. H7679 2" Nailer Kit 17. DISCONNECT TOOLS before ser- vicing, changing accessories, or moving to another location. 18. DO NOT OVERREACH. Keep proper footing and balance at all times.
-
Page 4: Additional Safety Instructions For Nailers
COMPRESSED AIR RATING: Do not connect the nailer to com- pressed air that exceeds 120 PSI. CHECK VALVE: Do not use a check valve or any other fitting that allows air to remain in the tool. H7679 2" Nailer Kit... - Page 5 90 deci- bels. To protect your hearing, always wear ANSI approved ear protection when operating this nailer. H7679 2" Nailer Kit Never point this nailer at yourself or another person! Always pay attention to the direction this nailer is pointed.
-
Page 6: Contact Info
INTRODUCTION Foreword We are proud to offer the Grizzly Model H7679 2" Nailer Kit. This model is part of a growing Grizzly family of fine pneumatic tools. When used according to the guide- lines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commit-... - Page 7 Unpacking Your Model H7679 left our warehouse in a carefully packed box. If you discover the nailer is damaged after you have signed for delivery, please immediately call Customer Service at (570) 546-9663 for advice. Save the containers and all packing mate- rials for possible inspection by the car- rier or its agent.
-
Page 8: Compressed Air System
Compressed Air System The Model H7679 is designed to be oper- ated at 60–100 PSI using clean, dry, regu- lated, compressed air. DO NOT exceed the maximum operating pressure for your model. Before using your new nailer, regulate the air pressure on your air compressor to the minimum PSI for your model. - Page 9 — If the nailer fires when the trigger is pulled, without the safety nose mechanism being depressed, then immediately disconnect the nailer from the air supply and call Grizzly Technical Support at (570) 546- 9663 for help. — If you find that the safety nose...
- Page 10 Loading When replacing nails in your Model H7679, follow these guidelines: Gauge: Length: ⁄ " – 2" Capacity: 100 To load your nailer: 1. DISCONNECT NAILER FROM THE AIR SUPPLY! 2. Sliding magazine pusher back, as shown in Figure 3, to lock the catch lever in place.
-
Page 11: Adjusting Depth
— If the nail either went too far or not far enough, then go to the Adjusting Depth subsection on this page. H7679 2" Nailer Kit Adjusting Depth A depth adjustment knob is attached to the nose for setting the nail depth. - Page 12 Throw the damaged nail away and insert a new nail stick that only contains clean, undamaged nails. DO NOT use dirty or damaged nails! Push the magazine all the way in until the catch lever locks. H7679 2" Nailer Kit Lever...
-
Page 13: Replacing Pistons/O- Rings
The piston repair kit part number for the Model H7679 is #PH7679085. For your convenience, refer to the parts breakdown during this procedure to identify parts and their locations inside the nailer. -
Page 14: Cleaning And Lubrication
Lubricating Special oil has been included with your new Grizzly nailer to help maintain its useful life. Place two to six drops of oil in the nailer air inlet (as shown in Figure 8) every 2 hours of continuous use. - Page 15 � �� � �� � �� � �� � �� �� �� �� �� �� �� �� �� H7679 2" Nailer Kit �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��...
- Page 16 RUBBER HANDLE CASE PH7679079 O-RING 40 X 2.65 PH7679080 END CAP PH7679081 AIR INLET PLUG 1/4" NPT PH7679082 CARRYING CASE PAW03M HEX WRENCH 3MM PAW04M HEX WRENCH 4MM PH7679085 PISTON REPAIR KIT* * ITEM NOT SHOWN IN BREAKDOWN H7679 2" Nailer Kit...
-
Page 17: Troubleshooting
4. Driver or driver guide are worn Nailer does not fire. 1. Nail is jammed in magazine or 2. Piston shaft is damaged. 3. Air pressure too low. H7679 2" Nailer Kit ing are damaged. from moving freely in maga- zine. of lubrication. -
Page 18: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. -
Page 19: Warranty Card
____20-29 ____50-59 How long have you been a woodworker/metalworker? ____0-2 Years How many of your machines or tools are Grizzly? ____0-2 Do you think your machine represents a good value? ____Yes Would you recommend Grizzly Industrial to a friend? ____Yes Would you allow us to use your name as a reference for our customers in your area? Note: We never use names more than 3 times. - Page 20 Send a Grizzly Catalog to a friend: Name________________________________ Street________________________________ City______________State______Zip_______ FOLD ALONG DOTTED LINE GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
