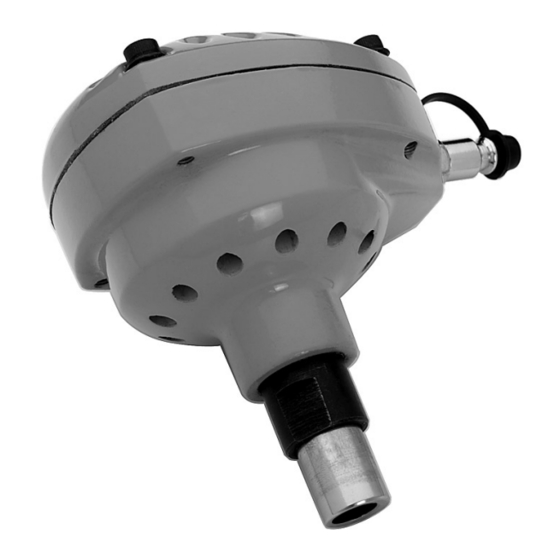

- Page 1 MODEL H6141 AIR PALM NAILER OWNER'S MANUAL COPYRIGHT © DECEMBER, 2005 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER, 2007 (TS) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
-
Page 2: Safety Instructions For Pneumatic Tools
DO NOT FORCE TOOL. It will do the job better and safer at the rate for which it was designed. USE THE RIGHT TOOL. Do not force tool or attachment to do a job for which it was not designed. WORKSHOP CHILD H6141 Air Palm Nailer... - Page 3 14. MAINTAIN TOOLS WITH CARE. Keep tools lubricated and clean for best and safest performance. Follow instructions for lubricating and changing accessories. H6141 Air Palm Nailer 15. DISCONNECT TOOLS before ser- vicing, changing accessories, or moving to another location. 16. USE ACCESSORIES.
-
Page 4: Additional Safety Instructions For Nailers
Standards Institute (ANSI) approved safety glasses or goggles when oper- ating this equipment. In addition, this nailer discharges at up to 85-90 deci- bels. To protect your hearing, always wear ANSI approved ear protection when operating this nailer. H6141 Air Palm Nailer RATING:... -
Page 5: Contact Info
INTRODUCTION Foreword We are proud to offer the Grizzly Model H6141 Air Palm Nailer. This model is part of a growing Grizzly family of fine pneu- matic tools. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoy- able operation and proof of Grizzly’s com-... - Page 6 Unpacking Your Model H6141 left our warehouse in a carefully packed box. If you discover the nailer is damaged after you have signed for delivery, please immediately call Customer Service at (570) 546-9663 for advice. Save the containers and all packing mate- rials for possible inspection by the car- rier or its agent.
-
Page 7: Compressed Air System
Compressed Air System The Model H6141 is designed to be oper- ated at 60-100 PSI using clean, dry, regu- lated, compressed air. DO NOT exceed the 120 PSI maximum operating pres- sure for your model. Before using your new nailer, regulate the air pressure on your air compressor to the minimum PSI for your model. -
Page 8: General Operations
Note: The air palm nailer will automati- cally countersink all nails to a depth of around 2mm or ⁄ ". H6141 Air Palm Nailer... -
Page 9: Replacing Pistons/O- Rings
4. Remove the four cap screws and washers on the back of the nailer. 5. Remove the cap. H6141 Air Palm Nailer 6. Push the ram pin towards the inside of the nailer. This will push the cylinder free of the housing. -
Page 10: Cleaning And Lubrication
Lubricating Special oil has been included with your new Grizzly nailer to help maintain its useful life. Place two to six drops of oil in the nailer air inlet (as shown in Figure 4) before every use, or after 2 hours of continuous use. - Page 11 O-RING 53.5 X 2.6 PH6141007 CYLINDER COLLAR PH6141008 SEALING RING PH6141009 CYLINDER PH6141010 CYLINDER COVER PH6141011 O-RING 43 X 2.6 PH6141012 PISTON H6141 Air Palm Nailer �� �� �� �� �� �� �� �� �� �� �� �� PART #...
-
Page 12: Troubleshooting
3. Check fitting, hose, compres- sor and air pressure. 4. Replace piston O-ring. Lubricate. 5. Replace gasket. 1. Replace spring. 2. Tighten nose piece and use teflon tape. 1. Replace piston shaft. 2. Check/increase air pressure. H6141 Air Palm Nailer... -
Page 14: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. -
Page 15: Warranty Card
____20-29 ____50-59 How long have you been a woodworker/metalworker? ____0-2 Years How many of your machines or tools are Grizzly? ____0-2 Do you think your machine represents a good value? ____Yes Would you recommend Grizzly Industrial to a friend? ____Yes Would you allow us to use your name as a reference for our customers in your area? Note: We never use names more than 3 times. - Page 16 Send a Grizzly Catalog to a friend: Name________________________________ Street________________________________ City______________State______Zip_______ FOLD ALONG DOTTED LINE GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
