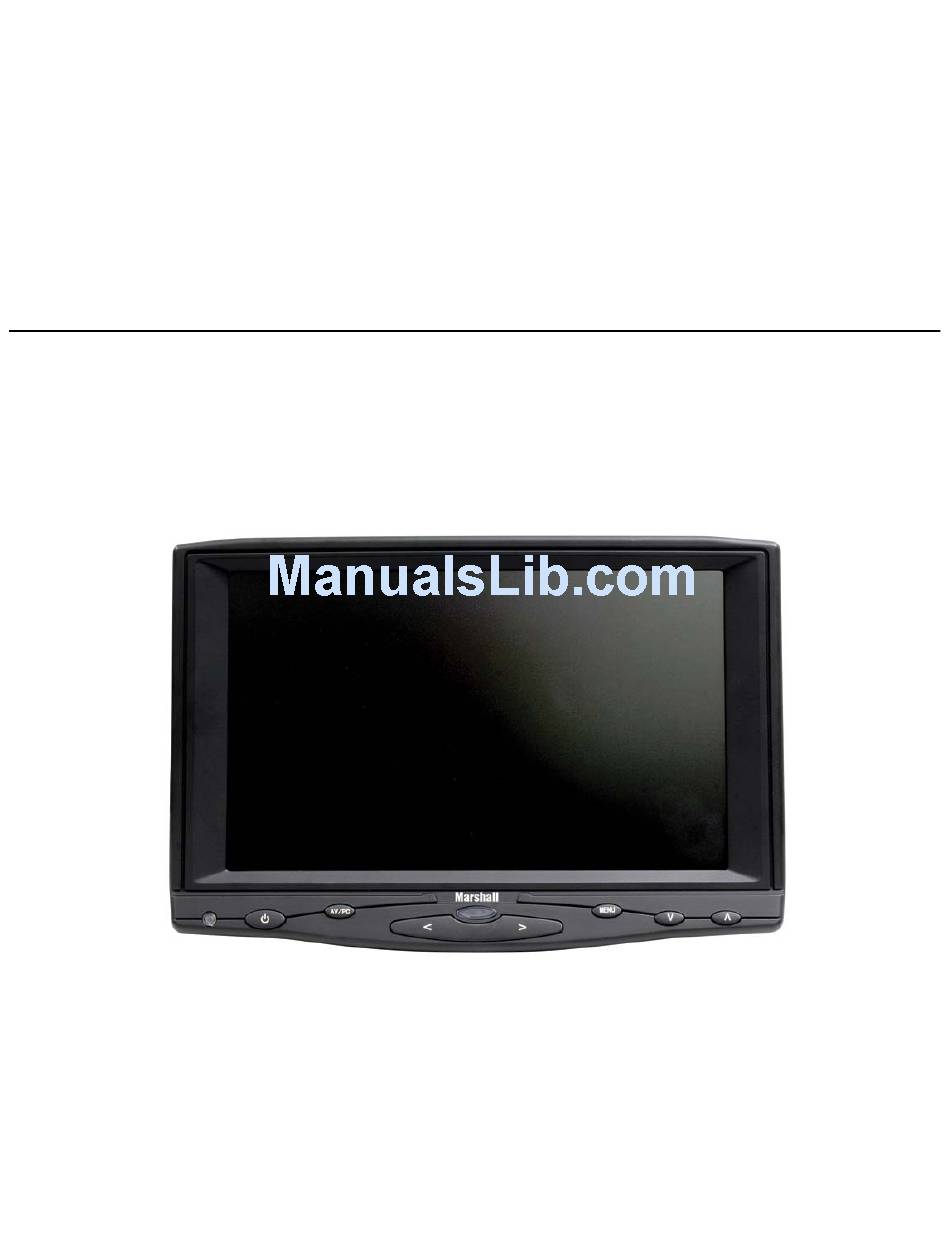

Page 1: User Manual
Marshall Electronics M-LCD7-HDI M-LCD7-HDI-B-C511 M-LCD7-HDI-B-CE6 M-LCD7-HDI-B-NEL3 Portable 7’’ HDMI TFT LCD Monitor User Manual... -
Page 2: Product Overview

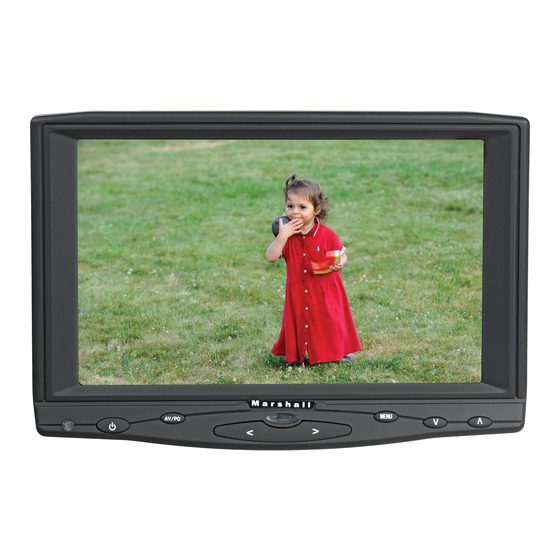

Product Overview The M-LCD7-HDI is a 7” high-definition widescreen LCD monitor featuring our completely digital TFT-MegaPixel active matrix LCD platform. This monitor is ideal as a light-weight high resolution viewfinder or focus-assist monitor. Our proprietary digital signal processing features, along with multi- format compatibility, accommodate multiple video formats including NTSC and PAL. - Page 3 Unpacking Carefully unpack the M-LCD7-HDI monitor and verify that the following items are included: ■ AC model (M-LCD7-HDI) includes: ƒ M-LCD7-HDI Monitor ƒ AC Power Supply ƒ HDMI Cable ƒ HDNI – MINI HDMI Cable ƒ Car Cigarette Adapter ƒ Table Stand ƒ...
-
Page 4: Table Of Contents
: Volume up or to adjust the value of setting function 7. MENU: To activate OSD menu : Selection key, to adjust phase directly : Selection key, to adjust brightness directly 10. DC12V: DC12V input jack 11. HDMI: HDMI input jack 12. SKS: SKS input jack M-LCD7-HDI Manual... -
Page 5: X83; Remote Control
1. SKS input connector to be connected to SKS input jack on monitor 2. Male 9-pin plug for VGA signal 3. DC12V power 4. Yellow RCA jack for video 1 5. White RCA jack for audio Picture 3 (AV cable) 6. Red RCA jack for video 2 M-LCD7-HDI Manual... -
Page 6: X83; Connection
4. Yellow RCA jack connects to video signal 1 5. White RCA jack connects to audio signal 6. Red RCA jack connects to video signal 2 Please use the included DC adapter. (Note that the power consumption should be less or equal to 10W.) M-LCD7-HDI Manual... -
Page 7: Operating Instructions
(Menu), (Edit), (Volume), and confirm by pressing “ ” or ” ” on the unit or on the remote control. Then push “ ” or ” ” again to adjust the values. Push “ ” to exit the OSD after your adjustment. M-LCD7-HDI Manual... - Page 8 “Color Temp,” then choose a color temperature such as 6500 Ks, 7500 Ks or 9300 Ks by pressing “ ” or ” ”. You can also adjust color temperature by selecting “USER” and adjusting the RED, GREEN, and BLUE by pushing “ ” or “ ” until desired color value is achieved. M-LCD7-HDI Manual...
- Page 9 If the auto adjust is not satisfactory, use manual adjust. ƒ H Position: To adjust the picture horizontally ƒ V Position: To adjust the picture vertically ƒ Phase: To adjust the phase ƒ Clock: To adjust the clock for field and line synchronization ■ (OSD): M-LCD7-HDI Manual...
- Page 10 ƒ Reset: Back to the original factory setting ƒ Display Ratio: To change the display ratio: 16:9, 4:3 ƒ LR Rotation: To change the picture left/right ƒ UD Rotation: To change the picture up/down ■ Sound Volume: To adjust the volume. M-LCD7-HDI Manual...
- Page 11 ■ Language: 8 languages for OSD as shown above: ƒ H Position: To adjust the picture in horizontal ƒ V Position: To adjust the picture in vertical ƒ OSD Time out: To adjust the clock ƒ Transparent: To adjust the level of transparency M-LCD7-HDI Manual...
- Page 12 ƒ Reset: Manufacturer default setting ƒ Display Ratio: To change the display ratio: 16:9, 4:3 ƒ LR Rotation: To change the picture (mirror image flip) ƒ UD Rotation: To change the picture up/down ■ Sound: Volume: To adjust the volume M-LCD7-HDI Manual...
-
Page 13: Specifications
188(L) x 129(W) x 40(H) Weight (w/o battery) 12 oz. Battery Compatibility 7-BP970G-CM Canon BP-970G Battery assembly 7-BN-V438U-JM JVC BN-V438U Battery assembly 7-CGS-D54-PM Panasonic CGA-D54 Battery assembly 7-VW-VBG6-PV Panasonic VW-VBG6 Battery assembly 7-NP-QM91-SM Sony NP-QM91 Battery assembly 7-NP-F970-SL Sony NP-F970 Battery assembly M-LCD7-HDI Manual... -
Page 14: Troubleshooting
■ Other problems ƒ If intermittent image occurs, it may be that the VGA signal frequency isn’t matched with normal standard. ƒ It is a normal for some bright lines to appear on screen when you turn the unit. M-LCD7-HDI Manual... -
Page 15: Warranty
If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the prod- uct exterior or cosmetics. - Page 16 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.marshall-usa.com MLCD7HDMI-BManV1...
