- Page 1 Marshall Electronics 1910 East Maple Ave. El Segundo, CA 90245 Tel.: 800-800-6608 • 310-333-0606 Fax: 310-333-0688 www.LCDRacks.com Email: sales@lcdracks.com V-R70P-SD Users Guide Users Guide Product Overview Standard Accessories Optional Accessories Electrical Specifications Mechanical Specification Faceplate Cleaning Operational Setup Input Connectors Switch Settings, Functions and Indicators Features Warranty...
-
Page 2: Product Overview

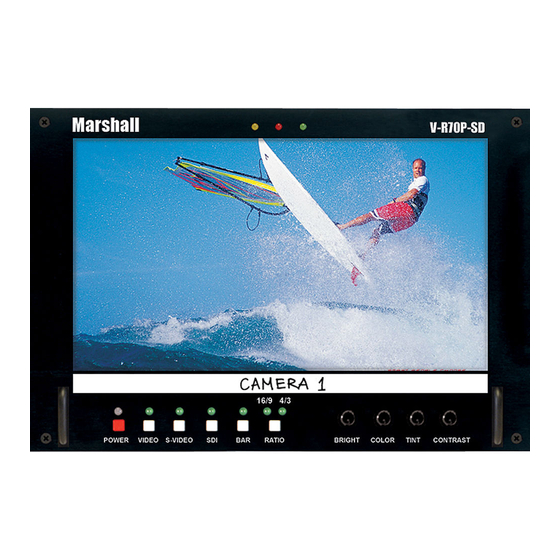

Product Overview The V-R70P-SD features Marshall’s proprietary TFT-MegaPixel™ display system and represents leading edge technology in LCD imaging for broadcast and professional video applications. This is a low cost stand alone monitor and is constructed with a durable enclosure featuring an optical grade polycarbonate protective cover for the antiglare/antireflective screen. A V-Mount battery adapt- er is also included and the monitor can be powered for over 5 hours with a 50WH battery. -
Page 3: Faceplate Cleaning
Faceplate Cleaning When cleaning the faceplate it is very important to use non-abrasive and ammonia free cleaning agents and a clean micro fiber clothe, or cheese clothe. Do not use paper towels. Paper towel fibers are coarse and may scratch the sur- face of the Polycarbonate faceplate. - Page 4 Optional Accessories (continued) Sequential 2 channel charger IDX-VL-2Plus Sequential 4 channel charger IDX-VL-4 Simultaneous 4 channel charger IDX-VL-4S 55 W Lithium Battery IDX-E50S 55 W Lithium Battery with Power Link IDX-E50 82 W Lithium Battery IDX-E80S 82 W Lithium Battery IDX-E80 with Power Link Protective Carry Case...
-
Page 5: Electrical Specifications
Electrical Specifi cations Display (Viewing Area) Viewing Angles Resolution (RGB Dots) Contrast Ratio Color temperature Color Gamut Gamma Luma Linearity Dot Pitch Pixel Response Screen Refresh Rate Backlight Type / Life Brightness System Inputs Active Outputs Available when power is applied to monitor Mechanical Specifi... - Page 6 Switch Settings, Functions and Indicators Tally Indicators Power On/Off switch Image Adjustment Controls Illuminates red when system power Note: Tint only functions when NTSC is present Video or S-Video are selected Illuminates Green when monitor is ON HDSDI/SDI Signal indication Lights for active format Screen aspect ratio switch 4:3 or 16:9 selector and indicators 16:9 Aspect 4:3 Aspect...
