Page 1: Operating Instructions

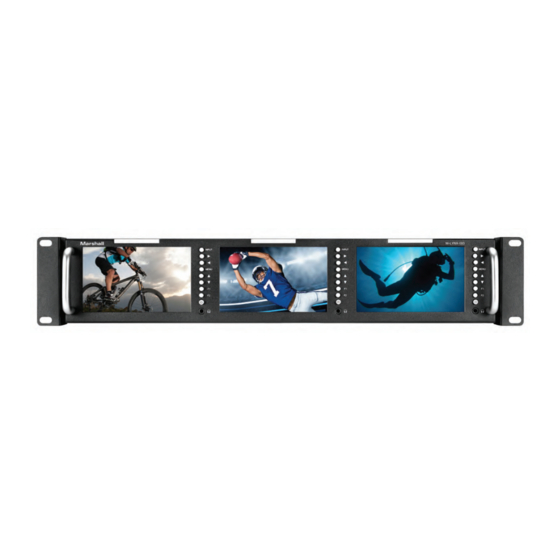

Marshall Electronics B r o a d c a s t A / V D i v i s i o n Model No. M-LYNX-503 Triple 5” Rackmountable Monitor with HDMI, 3G-SDI and Composite Inputs Operating Instructions V.1.0... - Page 2 The tally light above each monitor is controlled by grounding the appropriate pin on the Tally The M-LYNX-503 is designed to mount in a standard 19” equipment rack using the pre-installed connector as shown in the table. Caution: External power should never be applied to the Tally mounting ears.
- Page 3 3. MARKERS 4. USER FUNCTION When main power is fi rst applied to the M-LYNX-503, the input selection defaults to the last used source. To see other sources, press the Input button to cycle through three choices: HDMI, SDI and AV (composite analog).
-
Page 4: Specifications
Marshall Electronics M-LYNX-503 / Operating Instructions 5. SpecIfIcatIONS No Signal: Select the color background that appears when there is no video input. OSD Trans: Adjust whether On Screen Display text is transparent. Panel size 5.0-inch TFT LCD OSD H: Adjust horizontal position of On Screen Display text. - Page 5 If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer.
