Summary of Contents for Marshall Electronics V-MD702
-

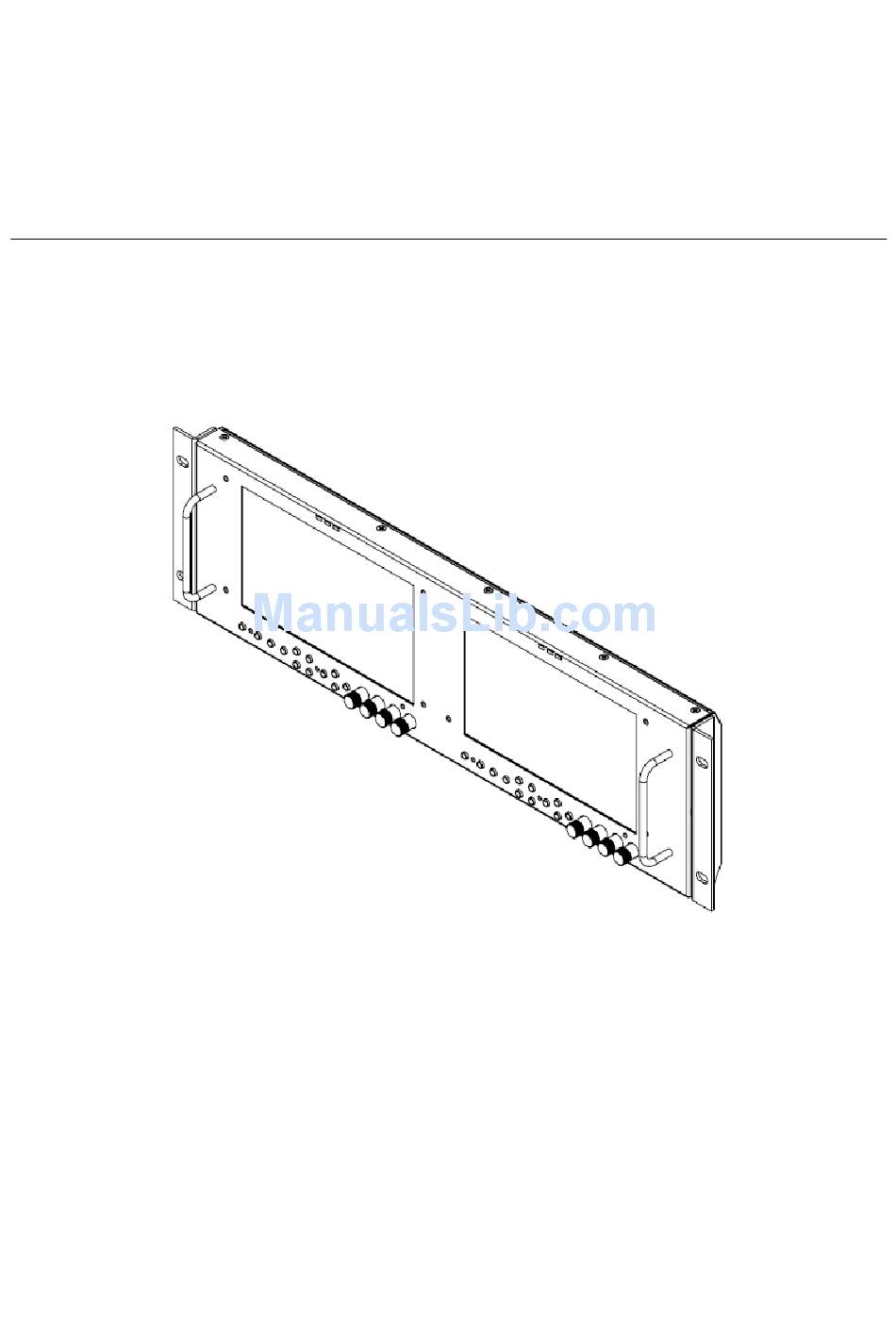

Page 1: Operating Instructions
Marshall Electronics V-MD702 Model No. Dual 7” Rack Mount Monitor Operating Instructions... -
Page 2: Table Of Contents
Product Overview Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. -
Page 3: Installation And Accessories
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-0606. - Page 4 V-MD702 Monitor Tally LED Monitor Keypad Modular / Video Inputs Tally / Ethernet / Power V-MD702 Operating Instructions...
-
Page 5: Monitor Front
Note: The TINT function is only available for for direct access to various settings. Functions NTSC VIDEO signals. are assigned using the on-screen menu Monitor Number This silkscreened number will indicate the panel number on the V-MD system. V-MD702 Operating Instructions... -
Page 6: Monitor Rear
Pin 1: +12 VDC The Network Port is used to access the Network Pin 2: GND Control Page for the V-MD702 monitor. Use a regular RJ45 Ethernet cable to connect the V-MD Module Slot monitor to your network. Please see the... -
Page 7: Compatible Input Formats
Compatible Input Formats The following standards are supported by the V-MD702 monitors and available input modules: MD-3GSDI-B – 3G/HD/SDI Input Module SD-SDI – 480i 59.94, 576i 50 HD-SDI – 720p (60 / 59.94 / 50 / 30 / 29.97 / 25) 1080i (60 / 59.94 / 50) -
Page 8: Menu And Navigation
•Exit the main menu by pressing MENU. The menu will automatically time out after 15 seconds. Only unit screen 1 will have the Network Configuration option available. All network settings can be configured from unit screen 1. Video Configuration Submenu Video Configuration Submenu V-MD702 Operating Instructions... -
Page 9: Color Temperature
Locate the pluge pattern (super black, black, and gray bars) at the lower-right corner of the screen. Adjust the Brightness button until there is no visible difference between the super black and black bars, but the gray bar is still visible. V-MD702 Operating Instructions... -
Page 10: Ratio Settings
Disable Blue Check Field mode. ■ Ratio Settings Use to switch between Full Screen, 4:3 and 16:9 aspect ratios. As the V-MD702 monitor has a native resolution of 800 x 480 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 11: Marker Configuration Submenu
Use these settings to superimpose one of 12 markers on the screen when in 16:9 mode. • • 13:9 • 14:9 • 1.85:1 • 2.35:1 • 95% Safe • 93% Safe • 90%Safe • 88% Safe • 85% Safe • 80% Safe V-MD702 Operating Instructions... -
Page 12: Full Screen Markers
Image area beyond the marker is shown at 50% intensity. • 75% Image area beyond the marker is shown at 75% intensity. • 100% Image area beyond the marker is shown at 100% intensity (black). Example (80% Marker in 4:3 Mode): V-MD702 Operating Instructions... - Page 13 0% Background 100% Background V-MD702 Operating Instructions...
-
Page 14: Filter Configuration Submenu
■ False Colors The V-MD702 has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external equipment. -
Page 15: System Configuration Submenu
Use this option to change the curtain color on the monitor. This curtain color is what you see when there is no signal input to the monitor. ■ Splash Screen Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first powered on. ■ Freeze Use the Freeze function to “freeze”... -
Page 16: Function Presets Submenu
Use the Function on F1, F2 , F3 and F4 menu items to define each function button on the front panel of the monitor. The following options are available for each button: • Ratio • Check Field • Mosquito Filter • False Colors • Freeze Input • Aspect Markers • Center Marker • Marker Enable • Pixel-to-Pixel V-MD702 Operating Instructions... -
Page 17: Imd & Tally Configuration
■ LED Tally Use the LED Tally option to turn the physical LED tally lights ON or OFF. ■ On-Screen Tally Use the On-Screen Tally option to turn the On-Screen tally ON or OFF. ■ Text Tally V-MD702 Operating Instructions... -
Page 18: System Information Submenu
This shows your module type and the firmware version of your module. If no module is present, the words MODULE NOT INSTALLED will appear in parentheses. Network Configuration Submenu The Network Configuration Submenu only appears on the first display of each V-MD702 monitor. This Submenu is responsible for the network settings of the entire monitor. V-MD702 Operating Instructions... -
Page 19: Configuration Mode
Use this field to turn Web Authentication ON or OFF. If turned on, you will be asked to select a Username and Password in the subsequent fields. Username:15 Alphanumeric character string Password: 15 Alphanumeric character string ■ MAC Address This field will show the MAC address associated with the particular monitor in question. V-MD702 Operating Instructions... -
Page 20: Network Control
The V-MD702 monitor allows you to fully control all settings via the standard Lan100 ethernet port on the rear of the monitor. Simply connect the V-MD702 monitor to your network with an Ethernet patch cable and access the monitor’s host name or IP Address via any web browser on your computer and take control. -
Page 21: Menu
This shows the Power Module firmware version of your monitor. ■ Input Module This text field determines the type of module present on the system as well as its firmware version. If there is no module installed, the text will read “No Module v0.00.” Menu V-MD702 Operating Instructions... -
Page 22: Aspect Ratio
Use this row to determine the current state of the Pixel-to-Pixel feature of the monitor. Pressing one of the boxes under each Screen type will either turn Pixel-to-Pixel mode OFF or ON. This can also be changed on the global level under the GLOBAL column. V-MD702 Operating Instructions... -
Page 23: Marker Enable
Use this row to determine the current status of the transparency settings of the screen markers on each individual panel. The drop down menus in this row can also be used to change your transparency values. This can also be done on the global level under the GLOBAL column. Filter Config V-MD702 Operating Instructions... -
Page 24: Freeze Input
GLOBAL column. ■ Freeze Input Use this row to turn the freeze input function on each individual panel ON or OFF. This can also be changed on the global level under the GLOBAL column. ■ Contrast/Backlight V-MD702 Operating Instructions... - Page 25 Save setup options previously mentioned. ■ Power-On Setup Use this row to select the settings to be loaded when power is applied to the V-MD702 monitor. This can be selected for each individual panel or globally in the GLOBAL column.
-
Page 26: Tally Source
Use this to turn the On-Screen Tally lights ON or OFF. This can be changed individually or globally. ■ Text Tally Use this to turn the Text Tally function ON or OFF. This can be changed individually or globally. Image Adjust V-MD702 Operating Instructions... - Page 27 Use this section to adjust the Gain and Bias for the Red, Green and Blue components of the video signal. This can be done for each individual screen or globally. To enter a value manually, type in a number from 0-100 in the dialogue box and press Set. Backlight V-MD702 Operating Instructions...
- Page 28 Use the keypad portion of the Network Control page to access all aspects of the physical keypad from the Network Control page. The GLOBAL column allows you to control a virtual Global Keypad that is like using all three keypads at the same time. Tally V-MD702 Operating Instructions...
-
Page 29: Network Configuration
Use the Tally page, in conjunction with the LAN100 tally source, to control the LED and soft tally on the V-MD702 monitor. The Tally can be controlled individually for each tally set above each panel. The radio buttons allow for customization of tally lights to be used by the monitor. You can select between using all possible colors, one color per screen or one color per unit. - Page 30 Host Name. ■ Web Authentication Fill in the Web Authentication box to protect the V-MD702 monitor from being accessed by a user without a User Name and Password. Filling this box in will enable the Username and Password fields below.
- Page 31 Navigator The Network Control page’s Navigator allows you to scan your network for other V-MD702 monitors or any other Marshall Electronics Web Enabled MD monitors. From the navigator, you can find and sort all monitors by their Host Name, IP Address or Model number. You can also access each monitor’s Network Control page.
- Page 32 Global Use the Global tab to control multiple Marshall Electronics MD monitors simultaneously. To control a monitor, highlight an MD monitor by clicking on its Host Name, IP Address or Model. Monitors being controlled will be highlighted in blue. Global...
-
Page 33: Specifications
■ ELECTRICAL ■ Modular Inputs Power Consumption 21 W Voltage Requirement 12 VDC Marshall Electronics Type B Input Modules V-PS12-5V-1 Power Supply: Input 100V-240V, 1.5A, 50-60Hz ■ CONNECTORS Output 12VDC, 5A, 60W Max Power Input ■... -
Page 34: Maintenance
Warranty Marshall Electronics warranties to the first consumer that this V-MD702 LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. - Page 35 This page intentionally left blank V-MD702 Operating Instructions...
- Page 36 This page intentionally left blank V-MD702 Operating Instructions...
- Page 37 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com V-MD702 Operating Instructions...
