- Page 1 Marshall Lynx LCD Universal Monitors 10” User Manual Marshall Industrial Video/Security Div. For more information, contact Marshall Electronics, Industrial Video & Security (800) 800-6608...
-
Page 2: Table Of Contents
(servicing) instructions. Warning– To Prevent Fire or Shock Hazard, DO NOT Expose this Monitor to Rain or Moisture This product must be grounded. Product specifications are subject to change without notice. -
Page 3: Important Safeguards
Lynx monitors are not recommended for outdoor use. 5. Accessories: Always ensure that the monitor is placed on a solid, steady surface/stand. To avoid any possible danger and/or damage, do not place the monitor on an unsteady stand, stool, or other surface that could result in the monitor falling. -
Page 4: Introduction
Lynx LCD Monitor User Manual INTRODUCTION Thank you for purchasing the Marshall Lynx 10” LCD Monitor. The Lynx Series of Universal Monitors offers high performance features and excellent picture quality for use in a variety of industrial/commercial applications. The information contained in this instruction manual covers the installation and operation of the monitors, and we encourage you to read it carefully. -

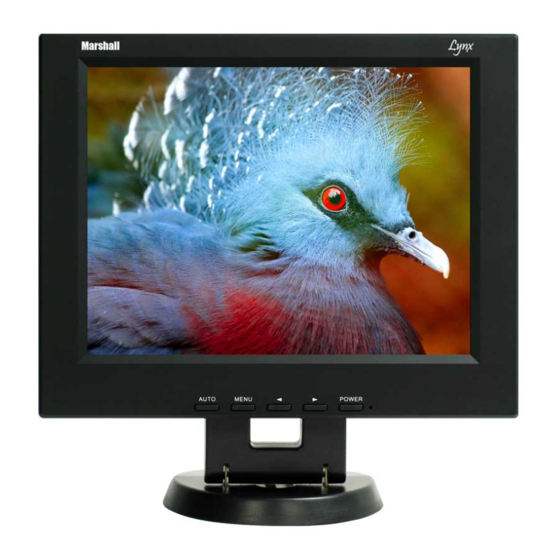

Page 5: Front Panel Components And Controls
Carefully unpack the items from the box. After finding a suitable and secure location for the monitor, plug the power cord and AC adaptor into the rear power input (DC12v) and plug the AC adaptor cord into a power source. Turn the monitor on via the power button on the front panel (LED will be green). -
Page 6: Video Main Menu
(PAL, NTSC, etc), Lan- guage, OSD Horizontal Position (OSD H-POS), OSD Vertical Position (OSD-V- POS), turn the Blue screen on or off, or Reset the monitor back to the original factory settings. -
Page 7: Vga Mode
To access the Function screen, press the Menu button again. The Function screen allows you to change Language, OSD Horizontal Position (OSD H-POS), OSD Vertical Position (OSD-V-POS), Auto Source and Reset the monitor back to the original factory settings. Scroll through the options using the ◄► buttons on the front panel. To select an item, press the Auto Button on the front panel. -
Page 8: Troubleshooting
Lynx LCD Monitor User Manual FRONT PANEL COMPONENTS AND CONTROLS VIDEO S VIDEO AUDIO 1 IN 2 IN TROUBLESHOOTING No picture on the screen Make sure the power cord is securely connected and that the front LED is green. No Power Make sure the power cord is securely connected to the adapter and that the light on the adapter is green.
