Page 1: Operating Instructions

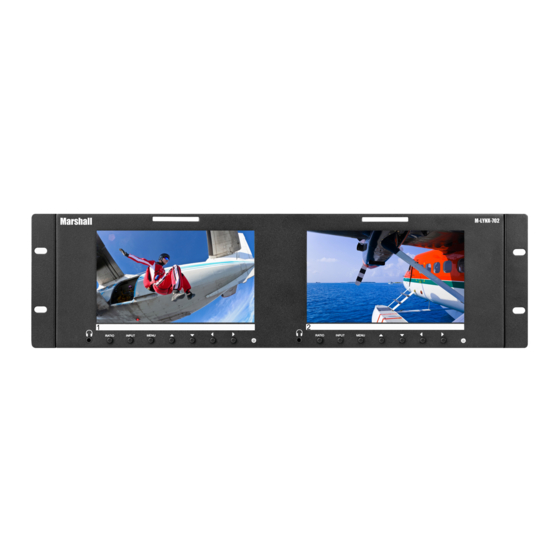

Marshall Electronics Model No. M-LYNX-702 Dual 7” High Resolution Rack Mount Display Operating Instructions... -
Page 2: Table Of Contents
Table of Contents Installation and Accessories........................3 Control Panel Area..........................3 Rear Connections............................4 On Screen Menu............................5 Compatible Input Formats........................9 Monitor Specifications..........................10 Dimensions............................11 Warranty..............................12... -
Page 3: Installation And Accessories
Installation and Accessories Unpacking Carefully unpack the M-LYNX-702 monitor and verify that the following items are included: M-LYNX-702 Monitor Power Supply Operating Instructions Control Panel Area Headphone Jack Arrow Keys (up/down and left/right) The Headphone jack on the front panel takes two channels of embedded audio from HDMI or SDI sources. -
Page 4: Rear Connections
USB port The USB port is used for service functions. Contact 3G/SDI Input Marshall Electronics for further information. Connect serial digital source here. It is compatible with HDMI Input SDI, HD SDI or 3G SDI sources. Active loop out allows daisy-chaining to other devices. -
Page 5: On Screen Menu
On Screen Menu Access the main menu by pressing the Menu button on the front panel. Use the Up/Down arrow keys to move within a menu. Use the Right arrow key to access a sub-menu and the left arrow key to move back out of the sub-menu Once in a sub-menu, use the Up/Down arrow keys to select an item to adjust and use the Left/Right keys to change values within their range. - Page 6 Aspect Ratio 16:9 (Display is set to exact 16:9 aspect ratio) 14:9 (Display is set to exact 14:9 aspect ratio) Zoom1 (The picture is expanded) Zoom2 (The picture is expanded twice as much as Zoom1) Panorama (Display is set for wide aspect ratio) Pixel to Pix (Incoming video pixels are mapped 1:1 to display pixels.
- Page 7 ■ Audio Volume (0 – 100, 50 = default) Balance (-10 - +10, 0 = default) ■ Setting Screen Markers (OFF = Default) Center Marker (OFF = Default) (Places red cross-hairs in middle of screen) Horizontal Position (0 - 10, 5 = default) (Shifts picture left or right) Vertical Position (0 - 10, 5 = default)
- Page 8 Component (Component video input is selected as the 2 picture) Upper Left picture appears in the upper-left corner of the screen) Upper Right picture appears in the upper-right corner of the screen) Lower Right picture appears in the lower-right corner of the screen) Lower Left picture appears in the lower-left corner of the screen) PIP Swap...
-
Page 9: Compatible Input Formats
Compatible Input Formats SDI / HDSDI 480i 59.94 576i 50 720p 25, 29.97, 30, 50, 59.94, 60 1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30 1080i 50, 59.94, 60 HDMI 480i 59.94, 480p 59.94 576i 50 576p 50 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30, 50, 59.94, 60 Component Analog... -
Page 10: Monitor Specifications
(Included power supply meets this requirement) Burn-In Warning Customer-supplied power supply, if used, should be The M-LYNX-702 uses a high quality TFT LCD panel. rated at 3 Amps or higher. However, if a static image is left on the screen for 48 hours, there may be a 10 to 20 minute recovery period for the panel. -
Page 11: Dimensions
Dimensions... -
Page 12: Warranty
Warranty Marshall Electronics warranties to the first consumer that this M-LYNX-702 LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
