Summary of Contents for Marshall Electronics M-CT7

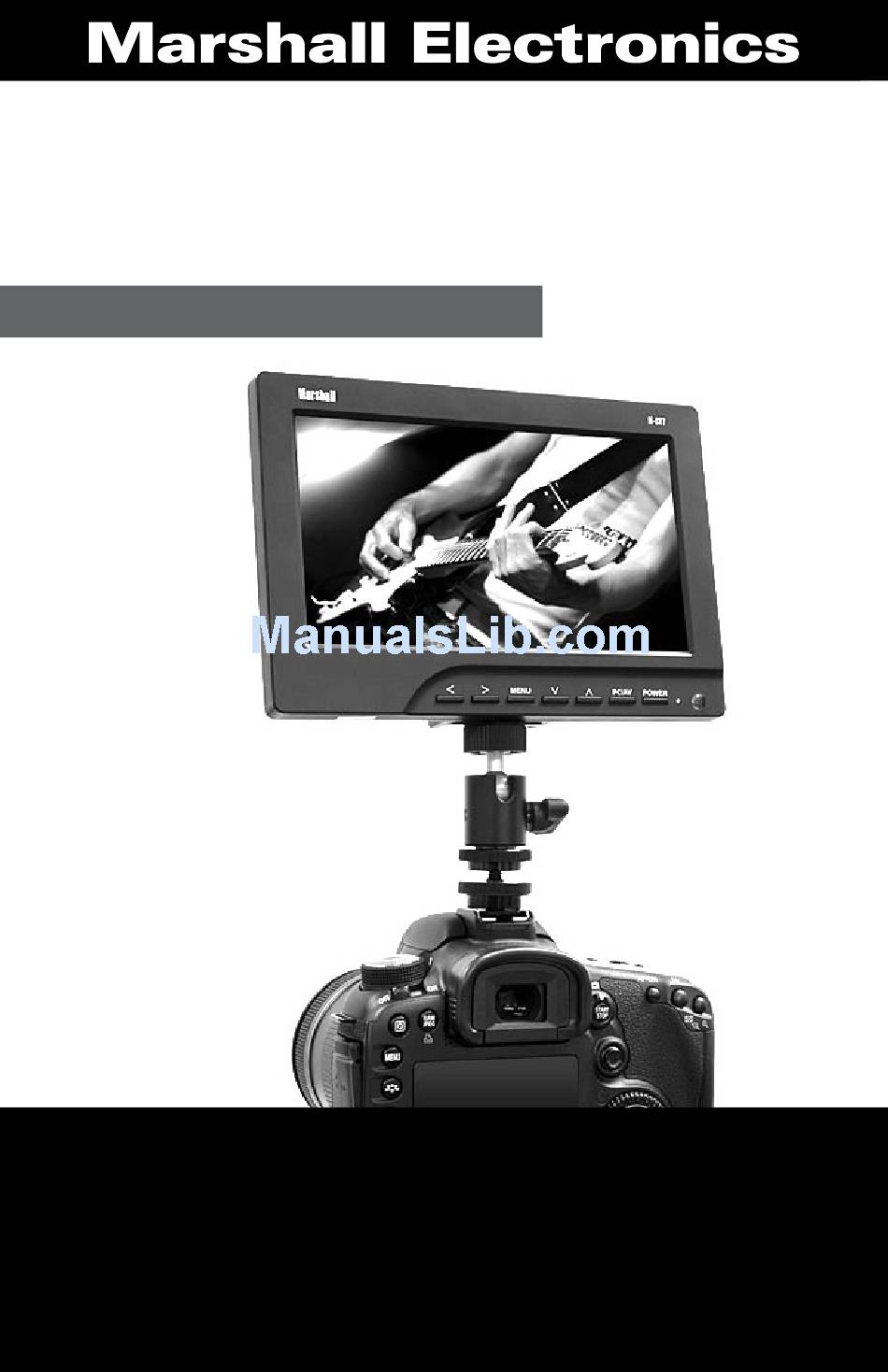

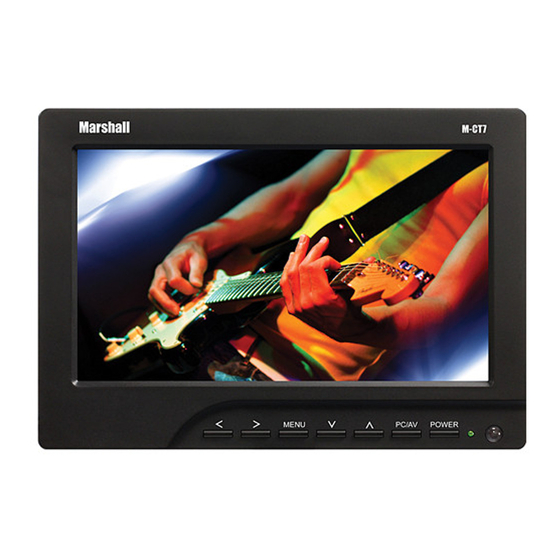

- Page 1 Marshall M-CT7 Camera-Top Monitor Owner’s Manual M-CT7 C a m e r a - To p M o n i t o r Owner’s Manual...
- Page 2 It is conveniently sized for easy transportation, and it is perfect for difficult shooting situations. To obtain the best results with your new M-CT7, please take the time to read this manual. CAUTION • Please use the supplied power sources.
-
Page 3: Table Of Contents
Marshall M-CT7 Camera-Top Monitor Owner’s Manual CONTENTS PRO D U CT OV ERV IE W .....3 - 4 M O NI TO R ......3 R EM OT E C O N T RO L . -
Page 4: Remote Control
Marshall M-CT7 Camera-Top Monitor Owner’s Manual REMOTE CONTROL MUTE Power ON / OFF Activate OSD menu Volume UP / adjust value of setting function Volume DOWN / adjust value of setting function Selection key / adjust brightness directly Selection key / adjust phase directly... -
Page 5: Menu Oper Ation
Marshall M-CT7 Camera-Top Monitor Owner’s Manual MENU OPER ATION After connecting power, the unit will be in standby mode, which is indicated by a red light. Press "POWER" on the unit or on the remote control, and the buttons on the unit will illuminate in blue when the unit is operational. - Page 6 Marshall M-CT7 Camera-Top Monitor Owner’s Manual COLOR (HDMI / PC MOD E ) After selecting "Color" mode on the OSD, use to select and then push to adjust. 1. Brightness: adjusts the brightness of the image 2. Contrast: adjusts the contrast of image 3.
- Page 7 Marshall M-CT7 Camera-Top Monitor Owner’s Manual A D JUST (PC MOD E ) 1. Auto Config: adjusts settings automatically 2. H Position: adjusts the picture horizontally 3. V Position: adjusts the picture vertically 4. Phase: adjusts the phase 5. Clock: adjusts the clock, make field, and line synchronization...
- Page 8 Marshall M-CT7 Camera-Top Monitor Owner’s Manual FUNCTION ( A LL MOD ES) 1. Reset: resets the monitor to the original factory settings 2. Zoom: changes the aspect ration from 4:3 to 16:9 (4:3 is default) 3. LR: flip image horizontally (Mirror image) 4.
-
Page 9: Specifications
Marshall M-CT7 Camera-Top Monitor Owner’s Manual SPECIFICATIONS Display Panel 7-inch TFT LCD (1,152,000 pixels) Resolution 800x480 (VGA) Upscaled Resolution 1920x1440 (VGA) Brightness 400 cd/m Contrast 500:1 Viewing Angles 75°/75° (Left/Right) 50°/70° (Up/Down) Video Signal Input 0.7 ~ 1.4Vp-p / 75Ω... -
Page 10: Includ Ed Acces Sories
Broken or loose pins in the cable connector can cause a bad connection. The remote control does not work: Check the battery to make sure the battery is installed properly. If you are still experiencing problems, contact Marshall Electronics technical support at: (800) 800-6608 or +1 (310) 333-0606... -
Page 11: Bat Tery Compatibilit Y
Marshall M-CT7 Camera-Top Monitor Owner’s Manual BAT TERY COMPATIBILIT Y This camera-top monitor is compatible with a variety of different DSLR and camcorder batteries, depending upon which option is purchased: DSLR Batteries Canon BP511 Canon E6 Nikon EL3 Camcorder Batteries... - Page 12 Marshall M-CT7 Camera-Top Monitor Owner’s Manual Marshall Electronics 1910 E. Maple Avenue El Segundo, CA 90245 USA Phone: 310-333-0606 • 800-800-6608 • Fax: 310-333-0688 www.marshall-usa.com...
