- Page 1 Marshall Electronics B r o a d c a s t A / V D i v i s i o n Model No. M-LYNX-702W Dual 7” High Resolution Rack Mount Display with Waveform Operating Instructions V.1.0...

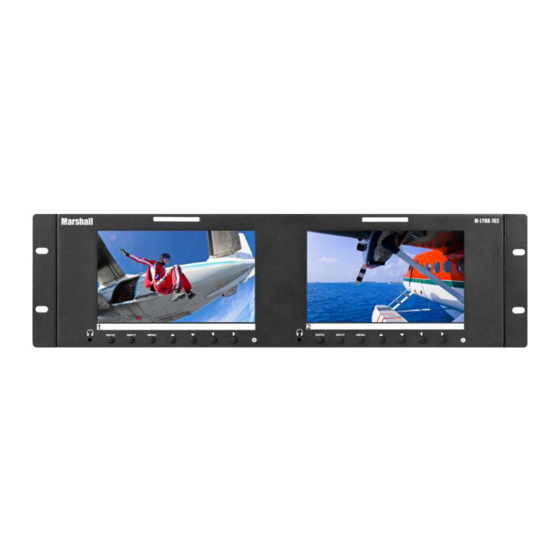

- Page 2 Marshall Electronics M-LYNX-702W / Product Description 1. PRODUCT DESCRIPTION Table of Contents FRONT PANEL FEATURES 1. PRODUCT DESCRIPTION ..........3 2. MENU SETTING .............. 6 3. SPECIFICATIONS ............11 4. INCLUDED ACCESSORIES ..........11 5. TROUBLE SHOOTING ............ 11 1. Rackmount ears with tilt capability 2. Handle...
- Page 3 Marshall Electronics M-LYNX-702W / Product Description 3. Barrel Power Connector BACK PANEL FEATURES 12V DC power input barrel connector. Plug the supplied DC power adapter here. (Center pin is +) Important: Please connect only one type of power supply at a time to this monitor. 4. Analog Audio “RCA” Connectors Audio left and right inputs. These audio inputs are active whenever Video or YPbPr are selected as the video sources. This audio may be monitored at the Headphone jack. 5. Component Analog “BNC” Connectors YPbPr input for component analog video sources YPbPr loop out.
- Page 4 Marshall Electronics M-LYNX-702W / Menu Settings 2. MENU SETTINGS Marker Enable – this is the master control to turn all markers on or off. Center Marker – places a “+” mark in the exact center of the display. (Useful for checking camera or Press MENU knob on the monitor and function menus will pop-up on the screen. Rotate left or graphics positioning.) right to select an option. Then press the knob again to open the selection. When an arrow pointer Aspect Marker – places borders on screen representing various typical video and cinema aspect ratios. appears in the menu, turn the Menu knob again to access the item or to confirm a selection. This does not change the displayed aspect ratio. That setting is in the Video menu. 1. PICTURE Screen Marker – places a border around the edge of the screen to be used as a guide during video This page provides controls for typical picture production. adjustments. Short Cut: Most of these selections are also Marker Color – the Center, Aspect and Screen marker colors can be changed. directly available from the front panel by turning the Menu Marker Mat – changes the background just behind the markers. knob without pressing it first. Thickness – sets the width of the markers. Adjust as desired for best visibility.
- Page 5 Marshall Electronics M-LYNX-702W / Menu Settings 4. CAMERA AUX & AUDIO YCbCr – a graphic representation of the Luminance plus the color components in the video signal. Useful This page offers settings to assist with camera setup, for equipment adjustment and confirming proper operation. focus and exposure adjustments. Audio metering can be RGB – a graphic representation of the three primary color components of video picture. Useful for making set here as well. equipment adjustments. Vector – a graphic representation of the colors in a picture. Brightness levels are not shown. The vector ITEMS OPTIONS display is used with color charts or test signals. It is of little value during a video production. Peaking ON / OFF Peaking Color OFF / H&V / H / V Default – creates reduced size representations of each waveform listed above. In this mode, the video Peaking Level OFF/ Mono / Red / Green / Blue picture is visible at the same time as the waveforms.
- Page 6 Marshall Electronics M-LYNX-702W / Specifications Backlight – adjusts the brightness of the LCD backlight. This is different from the “Brightness” control. 3. SPECIFICATIONS Backlight is adjusted to compensate for room lighting without upsetting Contrast and Brightness adjustments. Panel Size 7 inch x 2 Reset – sets all menu items back to the way the unit ships from the factory. Panel Resolution 1280 × 800 pixels OSD – adjusts the position of the on-screen display messages and menus. The amount of time menus Brightness 400 cd/m remain on screen can also be adjusted. Contrast 800: 1 IP Config – opens a sub-menu where the monitor’s IP address can be set. Viewing Angle 178° / 178°(H/V) System – displays status messages only. There are no adjustments...
- Page 7 Warranty Marshall Electronics warranties to the first consumer that this M-LYNX-702W, dual 7” rackmount- able monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty. No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above. Note: Due to constant effort to improve products and product features, specifications may change without prior notice. Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDracks.com support@marshall-usa.com...
