INTRODUCTION

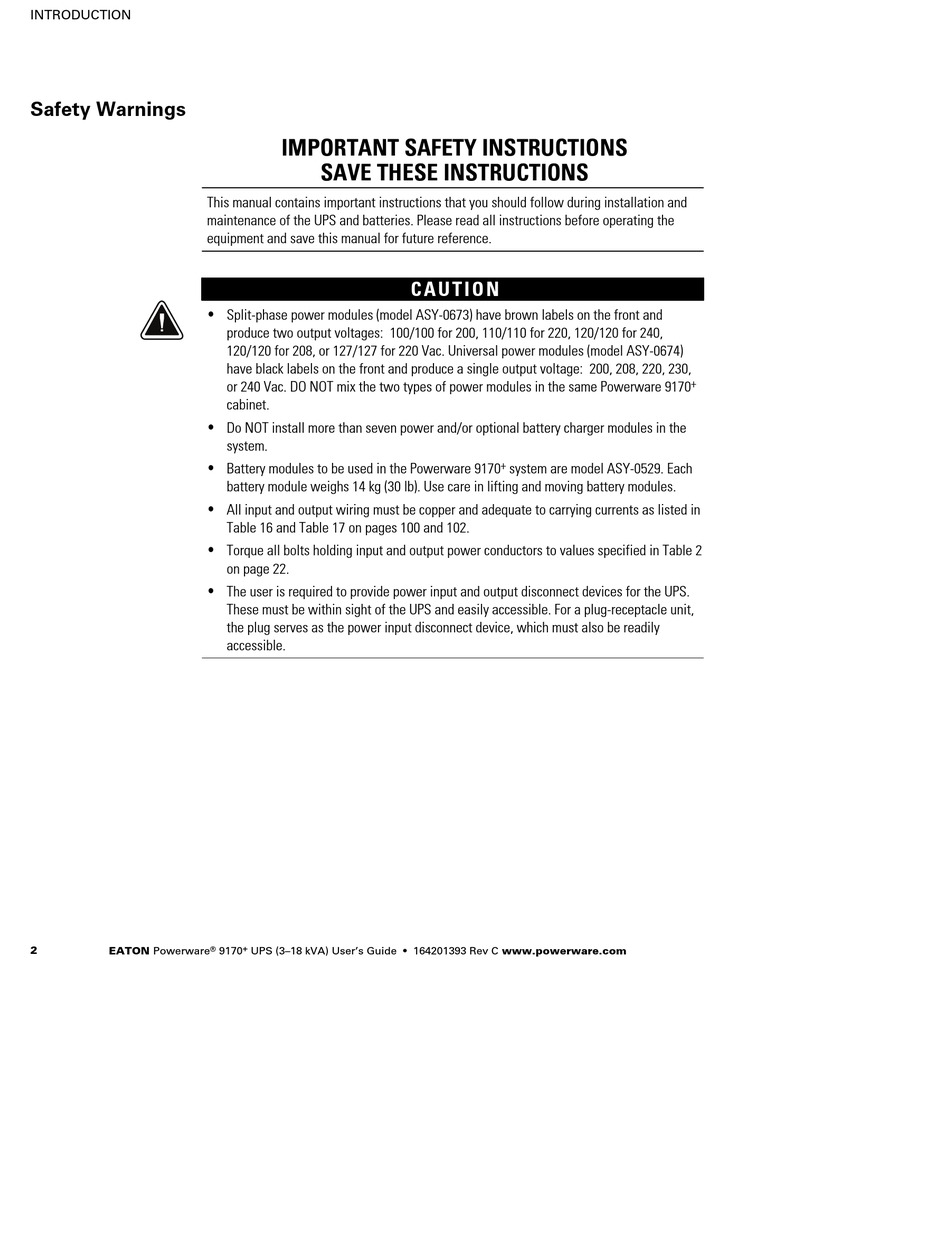

Safety Warnings

This manual contains important instructions that you should follow during installation and
maintenance of the UPS and batteries. Please read all instructions before operating the
equipment and save this manual for future reference.
S
S
S
S
S
S
2
EATON Powerware
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Split-phase power modules (model ASY-0673) have brown labels on the front and
produce two output voltages: 100/100 for 200, 110/110 for 220, 120/120 for 240,
120/120 for 208, or 127/127 for 220 Vac. Universal power modules (model ASY-0674)
have black labels on the front and produce a single output voltage: 200, 208, 220, 230,
or 240 Vac. DO NOT mix the two types of power modules in the same Powerware 9170
cabinet.
Do NOT install more than seven power and/or optional battery charger modules in the
system.
Battery modules to be used in the Powerware 9170
battery module weighs 14 kg (30 lb). Use care in lifting and moving battery modules.
All input and output wiring must be copper and adequate to carrying currents as listed in
Table 16 and Table 17 on pages 100 and 102.
Torque all bolts holding input and output power conductors to values specified in Table 2
on page 22.
The user is required to provide power input and output disconnect devices for the UPS.
These must be within sight of the UPS and easily accessible. For a plug-receptacle unit,
the plug serves as the power input disconnect device, which must also be readily
accessible.
+
®
9170 UPS (3–18 kVA) User's Guide
C A U T I O N
+
system are model ASY-0529. Each
S
164201393 Rev C www.powerware.com
+
