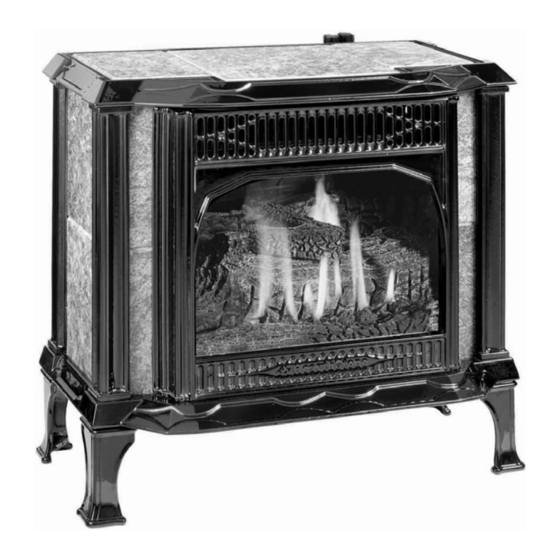

Gas-fired direct vent heater

Advertisement

Owner's Manual & Installation Guide
Sterling-Ht
for the
GAS-FIRED DIRECT VENT HEATER
WARNING: If the information in these instructions
is not followed exactly, a fire, or explosion may
result causing property damage, personal injury, or
loss of life.
Do not store, or use gasoline, or other
flammable vapors and liquids near this or
any other gas appliance!
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch electrical switches; do not use the
phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow your gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
A qualified installer, service agency, or gas
supplier must perform installation and service.
In the Commonwealth of Massachusetts, all
installation of gas lines and gas fitting shall only
be done by a licensed gas fitter or licensed
plumber.
317 Stafford Avenue,
Morrisville, Vermont 05661-8695
E-Mail:
inquiry@hearthstonestoves.com.
READ THIS OWNER'S
MANUAL
Operate and maintain this gas heater according to
(8532)
this instruction manual.
Read This Manual In Its Entirety
AVERTISSEMENT: Assurez-vous de bien suivre les
instructions donné dans cette notice pour réduire au
minimum le risque d'incendie ou pour éviter tout
dommage matéeriel, toute blessure ou la mort.
Ne pas entresposer ni utiliser d'essence ni
d'autre vaperurs ou liquides inflammables dans
le voisinage de cet apprareil ou de tout autre
appareil!
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service dos incendies.
L'installation et service doit être exécuté par un
qualifié installer, agence de service ou le
fournisseur de gaz.
Model # 8532
01-04-2005
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sterling-Ht 8532 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HearthStone Sterling-Ht 8532

  • Page 1 READ THIS OWNER’S Owner’s Manual & Installation Guide MANUAL Sterling-Ht for the Operate and maintain this gas heater according to (8532) this instruction manual. GAS-FIRED DIRECT VENT HEATER Read This Manual In Its Entirety WARNING: If the information in these instructions AVERTISSEMENT: Assurez-vous de bien suivre les is not followed exactly, a fire, or explosion may instructions donné...
  • Page 2: Service Record

    HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater INFORMATION SHEET Use this page to record all relevant information concerning the purchase, installation, and maintenance of your STERLING Ht Gas-Fired Direct Vent Heater. This information will facilitate servicing, purchase of replacement parts, and warranty claims (if necessary).
  • Page 3: Table Of Contents

    HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater ABLE OF ONTENTS ELCOME ........... 2 ELCOME Congratulations on your purchase of HearthStone’s Sterling Ht Gas-Fired Direct Vent heater. The ’ ......3 WNER NFORMATION Sterling incorporates the latest in balanced vent gas .........4...
  • Page 4: Owner ' S Information

    More frequent not use any components other than those approved cleaning may be required due to excessive lint by HearthStone Quality Home Heating Products, from carpeting, bedding material, pets, etc. It Inc., otherwise all warranties are void. Do not...
  • Page 5: Lighting Instructions

    Remote thermostats, or wall switches are available than air and will settle on the floor. If you smell for purchase from your local HearthStone dealer. gas immediately follow the What To Do If You Once the thermostat is installed and properly Smell Gas! warning on the cover of this Manual.
  • Page 6: Installer

    If the decorative ceramic logs supplied with the Sterling are damaged, they must be replaced. The manufacturer, through your local HearthStone dealer, supplies replacement parts. Do not replace ceramic logs with any materials not approved by HearthStone Quality Home Heating Products, Inc. NPACKING AND NSPECTION...
  • Page 7: Stove Dimensions & C

    HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater ! Do not operate the stove with ARNING the glass front removed, cracked, or broken. TEMS EQUIRED FOR NSTALLATION * External regulator (for propane/L.P.G. only) * Piping which complies with all codes * Pipe sealant approved for use with propane/L.P.G.
  • Page 8: Specifications

    HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater 18" (458mm) 2" (51mm) 2" (51mm) 4" (102mm) Parallel Installations 1" (26mm) 14" (355mm) 3" (76mm) 3" (76mm) 2" (51mm) Floor Corner Installations Alcove or Mantel Installations LEARANCE TO OMBUSTIBLES...
  • Page 10: Venting Information

    HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater Vinyl Siding Standoff 4 x 6 5/8” ENTING NFORMATION Round Ceiling Support Wall Thimble Covers The Sterling is approved for installation only Wall thimble with the following venting manuafcturers products.
  • Page 11 HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater A. Fireplace & Existing Chimney Installation The use of an existing chimney as an air intake is not covered under the ANSI Z21.88-1998•CSA 2.33-M98 test methods and the resulting ITS/WHI product certification. The code Authority...
  • Page 12 HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater Horizontal Terminations for 5"x 8" Pipe...
  • Page 13 HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater Horizontal Terminations for 4"x 6" Pipe (Requires the use of Top Exit Kit, # 95-60320) Note: All top exit configurations require a minimum of a 24” section of pipe directly off the unit Vertical Terminations - Straight or (2) 45 Elbows (4"x 6”...
  • Page 14 HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater...
  • Page 15 HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater Vertical Terminations - (1) or (2) 90 Elbows (4"x 6" Pipe)
  • Page 16: Attaching Your Venting

    HearthStone Quality Home Heating Products, STERLING-Ht Gas-Fired Direct Vent heater unit is cool before touching any part of the stove TTACHING ENTING or venting. Refer to the Venting Configurations for recommended restriction plate positions. Follow the instructions in either of the 5”x8”...
  • Page 17: Gas Connections

    STERLING Ht Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc Conditionally approved for purchased mobile home installation. This appliance may be installed in an aftermarket permanently Cet appareil peut être installé dans un maison located, manufactured (mobile) home, where préfabriquée (mobile) déjà...
  • Page 18: Log Placement

    Use of a dedicated sediment trap is required by code, ember burner. Do not use any other type of ceramic and by Hearthstone. Damage to components caused logs, wood logs, or other materials in the firebox. If by the lack of a sediment trap is not covered by the original log set is damaged, or broken, contact warranty.
  • Page 19: Removal Of The Log Set

    STERLING Ht Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc 4) Gently place the Left Log (2) in the firebox, on EMOVAL OF THE the ember burner. On the underside of the log there is an “L-shaped” cutout that lines up the...
  • Page 20: Lighting The Unit For The Initial Adjustments

    STERLING Ht Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc some gases (LPG) are heavier than air and will settle on the floor. If you smell gas, check for leaks. Use only your hand to turn the gas control knob. Never...
  • Page 21: Gas Conversions

    STERLING Ht Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc are adjustable. The right one (while facing the front of the stove) is for the low burn portion of the ember burner and the left one (while facing the front of the...
  • Page 22 STERLING Ht Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc Wiring Diagram - Sterling-Ht DV 30 c 50 60 70 80 90 HearthStone 50 70 90 Wiring Color KEY: IRING NSTRUCTIONS Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
  • Page 23 STERLING Ht Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc ARTS ISTS Part No. Description Part No. Description 1541-330 STONE: TOP SIDE 5532-075 LOW FLAME KNOB, EXTENSION ROD 1541-340 STONE: TOP, CENTER 5532-077 HIGH FLAME KNOB, EXTENSION ROD 1546-462A STONE: POL,8"x9-1/2", STG...
  • Page 24 115 VOLTS @ 60Hz, LESS THAN 2.0A EDGE OF SIDE TO: SIDEWALL 4” / 100 mm Several Optional kits are available through HearthStone or your local HearthStone dealer. A blower assembly may be used (kit# 95-57320) , spark screen (kit# 95-69320), top exit(kit# 95-60320), and two different remote controls (kit #90-56912 &...
  • Page 25: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Symptom Possible Cause Corrective Action 1. Pilot will not A. Insufficient gas pressure, A. Using the piezo sparker, try to light the light. air in the pilot line, or dirty or pilot. If it will not light, check the inlet gas kinked gas line.
  • Page 26 Symptom Possible Cause Corrective Action 3. Pilot burning, no A. Thermostat switch or A. Check thermostat/wiring for proper gas to main burner, wires defective. connections. Place jumper wire across valve knob in the terminals at thermostat. If burner comes on, "ON"...
  • Page 27 Symptom Possible Cause Corrective Action 8. Floating flames, A. Potentially dangerous A. Check the appliance input rate and reduce lazy ill-defined, incomplete combustion due if necessary. The air intake/exhaust flow quiet flames, which to incorrect air to fuel ratio system may be too restrictive or blocked (the roll around, (lack of combustion air or rate at which the exhaust leaves [draft]...
  • Page 28: Limited Warranties

    Original Purchaser purchases the Stove (the “Purchase Date”). LIMITED LIFETIME WARRANTY HearthStone warrants the following parts of the Stove against the following occurrences that result from defects in material and workmanship: All cast iron parts, including the cast iron heat exchanger – against breakage, cracking or burn-through.
  • Page 29 9. A defect in any part of the Stove if the Original Purchaser fails to comply with HearthStone’s or a Dealer’s request to ship the part or the Stove to HearthStone or a Dealer, as the case may be.
  • Page 30: Warranty Registration

    HearthStone or a Dealer, as the case may be. Thereafter, the Original Purchaser is responsible for one hundred percent (100%) of all of the shipping costs related to shipping the Stove to and from HearthStone or a Dealer, as the case may be.

Table of Contents
