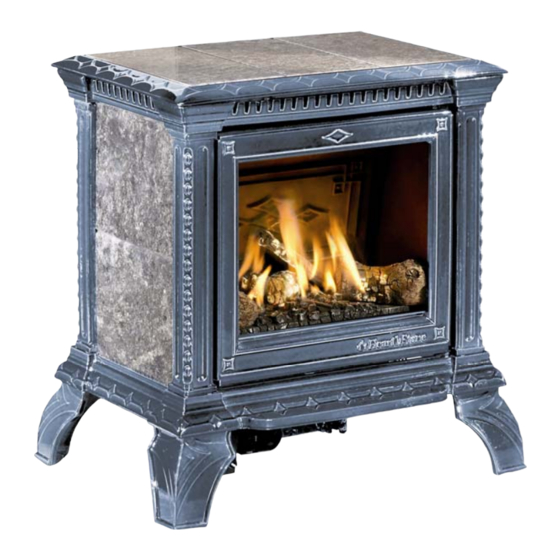

Gas-fired direct-vent heater
Hide thumbs Also See for 8050:

Advertisement

Quick Links

Owner's Manual &
Installation Guide for
Tribute DV
GAS-FIRED
(8050)
DIRECT-VENT
HEATER
WARNING:
If
the
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids near this or any other gas
appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch electrical switches; do not use
the phone in your building.
• Immediately call your gas supplier from a
neighbors phone. Follow your gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
A qualified installer, service agency or gas supplier
must perform installation and service. In the
Commonwealth of Massachusetts, all installation
of gas lines and gas fitting shall only be done by a
licensed gas fitter or licensed plumber.
HearthStone Quality Home Heating Products, Inc.
317 Stafford Avenue,
Morrisville, Vermont 05661-8695
E-Mail: Info@hearthstonestoves.com
READ THIS OWNER'S MANUAL -
maintain this gas heater according to this instruction manual.
information
in
these
AVERTISSEMENT: Assurez-vous de bien suivre
les instructions donné dans cette notice pour
réduire au minimum le risque d'incendie ou pour
éviter tout dommage matéeriel, toute blessure ou
la mort.
Ne pas entresposer ni utiliser d'essence ni d'autre
vaperurs ou liquides inflammables dans le
voisinage de cet apprareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
• Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service des incendies.
L'installation et service doit être exécuté par un
installateur qualifié, agence de service ou le
fournisseur de gaz.
Operate and
PN 6400-40423 Rev. A 4/26/06
Stove Model #8050
