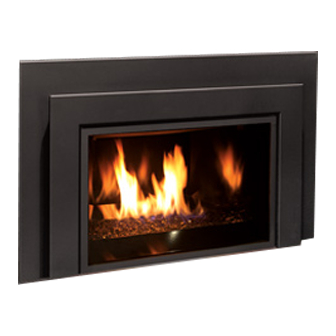

E33GI
G A S I N S E R T - G L A S S B U R N E R w / I P I
OWNER'S MANUAL
WARNING:
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage, personal
injury or loss of life. Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
Report # 0268GN022S
CERTIFIED TO/ CERTIFIÉ AUX: ANSI Z21.88-2017 / CSA2.33-2017 VENTED GAS FIREPLACE HEATERS
50-2578
Version Française: www.enviro.com/fr.html

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E33GI and is the answer not in the manual?

Questions and answers

Related Manuals for Enviro E33GI

Summary of Contents for Enviro E33GI

  • Page 1 Installation and service must be performed by a qualified installer, service agency or the gas supplier. Report # 0268GN022S CERTIFIED TO/ CERTIFIÉ AUX: ANSI Z21.88-2017 / CSA2.33-2017 VENTED GAS FIREPLACE HEATERS 50-2578 Version Française: www.enviro.com/fr.html...

  • Page 2: Safety Precautions

    Safety Precautions WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. - WHAT TO DO IF YOU SMELL GAS •...
  • Page 3 Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • All ENVIRO gas-fired appliances must be installed in • A barrier designed to reduce the risk of burns from the accordance with their instructions. Carefully read all the hot veiwing glass is provided with this appliance and shall instructions in this manual first.

  • Page 4: Table Of Contents

    Table of Contents Safety Precautions......................2 Table of Contents......................4 Codes And Approvals.......................5 Specifications........................6 Rating Label Location...................6 Dimensions......................6 Install Depth......................6 E33 Options Dimensions..................7 Operating Instructions....................8 Lighting and Turning Off Instructions..............8 Venturi Adjustment....................9 Normal Sounds During Operation.................9 Remote Control Operations..................9 System Description.....................10 Technical Data....................10 Transmitter....................10 Battery Holder.....................11 Operating Procedure...................12...

  • Page 5: Codes And Approvals

    After the unit has gone through the first burn, turn the unit off, let the unit get cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer. See “D ”...

  • Page 6: Specifications

    Specifications ating abeL ocation The rating label is located on the left side of the cabinet. imensions 22.146 9.052 9.085 *Shown with Contemporary surround & IPI Valve * 11.812 33.000 17.576 29.254 27.050 21.520 19.755 16.644 18.555 18.027 18.249 Figure 1: E33I Exterior Dimensions. nstaLL epth E33 units have a minimum install depth of 17.50”.

  • Page 7: E33 Options Dimensions

    Specifications 8 " " 4 " 2 " Figure 2: E33I Contemporary Surround with Base Shelf and Riser. Table 2: E33I Options Dimensions. Regular Surround Contemporary Surround Extruded Surround Height 26.5” (673 mm) 26.5” (673 mm) 26.5” (673 mm) Width ”...

  • Page 8: Operating Instructions

    Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ighting anD uRning nstRuctions FOR YOUR SAFETY READ BEFORE OPERATING WARNING:...

  • Page 9: Venturi Adjustment

    Operating Instructions entuRi Djustment The venturi adjustment lever is located on the right side of the unit, below the door (see Figure 4). To avoid touching hot surfaces under the unit, use the Door Tool to adjust the venturi. The venturi allows the amount of air coming into the fireplace to be adjusted in order to accommodate different climates and venting arrangements.

  • Page 10: System Description

    Operating Instructions ystem escRiption The Proflame 2 Remote Control System consists of two (2) elements: 1. Proflame 2 Transmitter. 2. Integrated Fireplace Controller (IFC) and wiring harness to connect to the gas valve, stepper motor battery holder, and convection fan. ATTENTION! - TURN “OFF”...

  • Page 11: Battery Holder

    Operating Instructions Key Lock Transmission Low battery alarm Thermostat OFF/ Room ON/SMART Temperature CPI mode Set Point Aux ON Temperature/Level/State ot used Flame ON Split Flow ot used Dimmer ON Comfort fan ot used Figure 6: Proflame 2 Transmitter LCD Screen. atteRy oLDeR The Battery Holder (Figure 7) connects directly to the IFC with a wiring harness.

  • Page 12: Operating Procedure

    Operating Instructions peRating RoceDuRe Initializing The System For The First Time Install the four (4) AA batteries into the IFC battery holder. Note the polarity of the battery and insert into the battery bay as indicated on the body of the battery holder. Press and release the reset button (see Figure 7). The IFC will “beep”...
  • Page 13 Operating Instructions Remote Flame Control The Proflame 2 GTMF has six (6) flame levels. With the system on, and the flame level at the maximum in the appliance, pressing the Down Arrow Key once will reduce the flame height by one step until the flame is turned off. The Up Arrow Key will increase the flame height each time it is pressed.
  • Page 14 Operating Instructions Split Flow Control This function is not used on the E33 and can be disregarded. Figure 14: Split Flow Control Aux Control This function is not used on the E33 and can be disregarded. Figure 15: Aux Control Key lock This function will lock the keys to avoid unsupervised operation.
  • Page 15 Operating Instructions Low Battery Power Detection Transmitter: The life span of the remote control batteries depends on various factors: quality of the batteries used, the number of ignitions of the appliance, the number of changes to the room thermostat set point, etc. When the Transmitter batteries are low, a Battery Icon will appear on the LCD display of the Transmitter (see Figure 17) before all battery power is lost.

  • Page 16: Maintenance And Service

    Maintenance And Service Warning: Failure to position the parts in accordance with this manual, or failure to use only parts specifically approved with this appliance, may result in property damage or personal injury. At least once a year, run through the following procedures to ensure the system is clean and working properly.

  • Page 17: Cleaning The Firebox

    The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed. Remove the door (see page 16). The replacement glass will come with a new gasket installed. Remove any silicone remnants from the door.

  • Page 18: Fuel Conversion

    The installation is not proper or complete until the operation of the converted appliance is checked as specified in the manufacturer’s instructions supplied with the kit. Kit Parts List for all E33GI models: 1 - Orifice (NG: #41) or (LP: #54) 1 - Servo Regulator with diaphragm...
  • Page 19 Maintenance And Service 7. Convert the SIT gas valve: a) Use a T-20 driver to remove the two screws that hold the servo regulator to the gas valve and disconnect the wire harness from the IFC. b) Remove the rubber regulator diaphragm that is situated between the servo regulator and the valve body.

  • Page 20: Initial Installation

    Initial Installation WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. LeaRances to ombustibLes Maintain sufficient clearances for operation, service Minimum Mantle Clearances and maintenance.
  • Page 21 Initial Installation QUALIFIED INSTALLERS ONLY The ENVIRO E33 may be installed and vented into any solid fuel fireplace that has been installed in accordance with the National, Provincial/State and local building codes and has been constructed of non- combustible materials. Before starting, refer to please reference the information in Table 5 and Figures 25 &...

  • Page 22: Baffle Plate Adjustment

    leak into the chimney. Refractory, glass doors, screen rails, screen mesh and log grates can be removed from the fireplace before installing the unit. Initial Installation QUALIFIED INSTALLERS ONLY The height for the vent must be between 8 ft (2.44 m) and 30 ft (9.14 m). Install a sealed vent cap to prevent leakage of room air up through chimney.

  • Page 23: Installing The Unit

    Initial Installation QUALIFIED INSTALLERS ONLY nstaLLing the • Remove the packaging from the appliance and check to make sure there is no damage. Carefully check the glass door. Do not use the unit if it is damaged. In the event damage is found, please report it to your dealer as soon as possible.
  • Page 24 Initial Installation QUALIFIED INSTALLERS ONLY 5. Stretch the Ø3” (76mm) flex vent liners to the length needed to ensure they can be easily connected to the vent terminals. M&G 6. Install the flex pipe assembly up through the chimney, DirectVent ensure that the pipe slides through far enough to connect EXCELDirect onto the vent cap.

  • Page 25: Zero Clearance Fireplace Installation

    Initial Installation QUALIFIED INSTALLERS ONLY 14. As you push the unit into its final position in the fireplace, if the vent collar plate was removed, reinstall it on the stove by pulling it into the brackets on top and reinstall the 5/16” screw. 15.

  • Page 26: Electrical Requirements

    Initial Installation QUALIFIED INSTALLERS ONLY LectRicaL equiRements The fireplace must be electrically connected and grounded in accordance with local codes or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code Part 1, Safety Standards For Electrical Installations, or The National Electrical Code ANSI / NFPA 70 in the US.

  • Page 27: Gas Line Connection

    ½ psig (3.45 KPa) or the valve will be damaged. Figure 35: Gas valve with cover removed Table 7: Orifice and Pressure Information. E33GI with Glass Burner Main Burner Natural Gas Propane Gas Orifice: #41 DMS #54 DMS Max.

  • Page 28: Adjusting The Pilot Flame

    Initial Installation QUALIFIED INSTALLERS ONLY TO TEST VALVE PRESSURES (INPUT RATES): The pressure taps are located on the front side of the valve (see Figure 36). 1. Using a long flat bladed screwdriver, turn set screw one (1) turn counter-clockwise to loosen. 2.

  • Page 29: Secondary Installation

    Secondary Installation afety cReen nstaLLation emoVaL To install the safety screen hold it upright in front of the fireplace with four (4) hooks pointing towards the fireplace. Slide the hooks into the corresponding brackets on each side of the cabinet (see figures 38a and 38b).

  • Page 30: Surround Panel Screw Installation

    Secondary Installation uRRounD aneL cRew nstaLLation Trimmable Panel Install: The trimmable panel is installed by sliding slots in the bottom of the panel into screws on the stove. Two screws must be installed at the bottom of the cabinet sides as shown. : Using a T20 screwdriver, instaLLation screw one (1) #8-32 x .5”...

  • Page 31: Surround Panel Installation

    Secondary Installation uRRounD aneL nstaLLation WARNING: The surround becomes hot when the unit is operating; ensure that the unit is turned off, and that it has cooled to room temperature before beginning this installation. Height Width 3-Sided Surround ” (673 mm) 44 ”...

  • Page 32: Firebox Liner And Burner Tray Removal / Installation

    WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. 1. Ensure the E33GI is turned off and allow the unit to completely cool. 2. Remove the glass door as shown in the m...

  • Page 33: Glass Burner Media Installation

    Secondary Installation nstaLLing the Lass uRneR eDia Pour the supplied glass media into the tray and evenly distribute over the entire tray area as shown in Figure 48. There is 3.5lbs of glass included which is just enough for a 0.250” - 0.375” thin layer to cover the area shown.

  • Page 34: Troubleshooting

    TroubleShooting iagnostic Lash oDes 1. Fail to ignite: If there is no positive ignition, the board will go into lock out and the LED will blink 3 times in intervals until the system is reset. 2. Low battery condition (<4V): the LED indicator will blink one (1) time in intervals. 3.
  • Page 35 Trouble Shooting Problem Possible Cause Solution The pilot flame has gone out · Turn it ON Thermostat The On/Off switch is turn to OFF does not work The thermostat is set too high · Set the thermostat to a lower temperature ·...
  • Page 36 Trouble Shooting Problem Possible Cause Solution · Turn the system off by pressing the ON/OFF button on the transmitter · After approximately 2 seconds press the ON/OFF button on the transmitter again. · In the manual flame control mode, use the down arrow button to reduce the flame to off, indicated by the word OFF displayed on the transmitter LCD screen.

  • Page 37: Parts List

    Reference Part Description Part Number Number E33 DV Flue Adaptor Bottom Gasket 50-2516 E33GI Owner’s Manual 50-2578 E33GI Conversion Kit NG to LP 50-2489 E33GI Conversion Kit LP to NG 50-2539 Door Release Tool 50-2510 Domestic Power Cord (115V) EC-042...

  • Page 38: Parts Diagram - Components

    Parts Diagram - Components...

  • Page 39: Warranty

    Sherwood Industries Ltd. (“Sherwood”) hereby warrants, subject to the terms and conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail.

  • Page 40: Installation Data Sheet

    � NATURAL GAS (NAT) PROPANE(LPG) _________________________________________ INLET GAS PRESSURE:_________in WC PHONE:___________________________________ MAIN BURNER ORIFICE:__________# DMS PILOT ORIFICE #_________OR________in diam. INSTALLER’S SIGNATURE: _________________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com October 19, 2018 C-15573...
