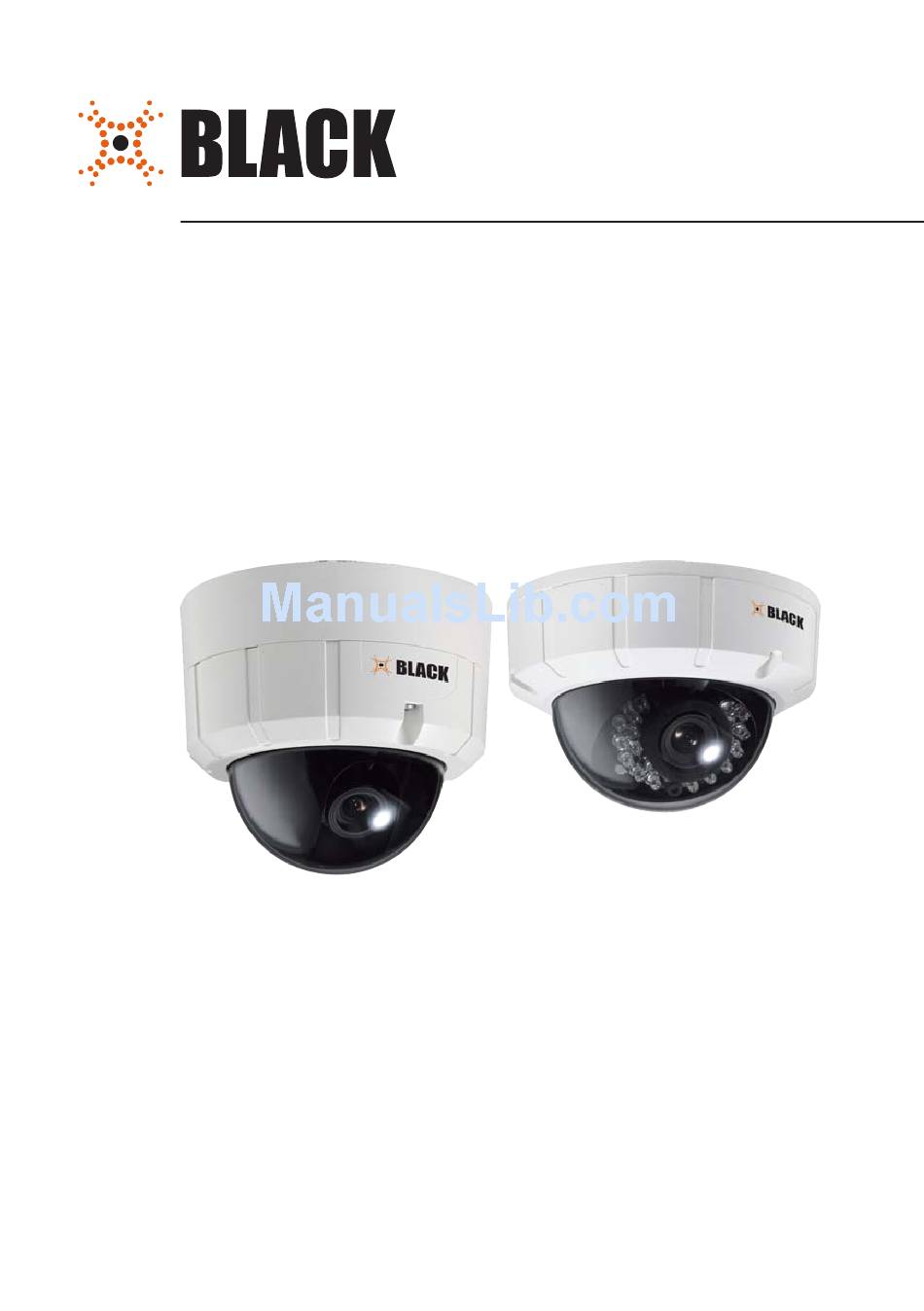

- Page 1 High Performance 690TVL Indoor/Outdoor Color CCTV Dome Camera User Manual Products: BLK-CWD208VH, BLK-CWD228VH Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-690TVL_DomeCameras_CM 3/18/11...
- Page 2 Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. WARNING To prevent electric shock and risk of fire hazards: Use a power source that is within specification only. CAUTION Do NOT expose this appliance to rain or moisture. REGULATORY NOTICE This device complies with Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Table of Contents Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv SECTION 1 Introduction . -
Page 4: Precautions
Precautions Do not install the camera in extreme temperature conditions. Use the camera in environments where temperature is between 14°F and 122°F. Ensure adequate ventilation. Do not install or use the camera in an environment where the humidity is high. It can degrade the image quality. Do not install the camera under unstable lighting conditions. -
Page 5: Introduction

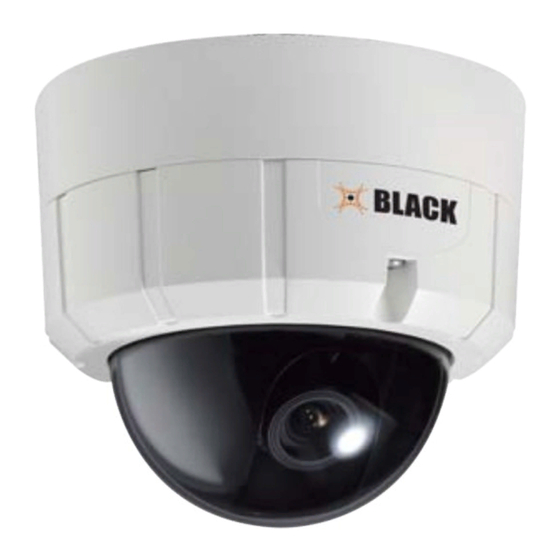

SECTION 1: INTRODUCTION SECTION 1 Introduction DIGIOP Black high performance indoor/outdoor CCTV dome cameras feature a very high resolution Pixim 1/3” High Sensitivity ® Digital sensor providing 690 TVL (color), with a 2.8 – 11mm lens, a digital wide dynamic range, dual voltage range support (24 VAC, 12 VDC), and on-screen display (OSD) for control and setup. -
Page 6: Cameras With A Vandalproof Enclosure
SECTION 1: INTRODUCTION 1.2 Cameras with a vandalproof enclosure 1.2.1 What’s in the box Your camera includes the following: Security tool • Machine screws (4) • Mounting cap • Mounting screws (4) • L-wrench • User manual • Dome bracket (optional) •... -
Page 7: Cameras With A Plastic Enclosure
SECTION 1: INTRODUCTION 1.3 Cameras with a plastic enclosure 1.3.1 What’s in the box Your camera includes the following: Mounting screws (4) • L-wrench • User manual • Dome bracket (optional) • What’s in the box Optional dome bracket High Performance 690TVL CCTV Dome Camera User Manual... -
Page 8: Installation
• Camera drop cable: The camera drop cable includes two connectors: • Power connector (black with green terminal adapter) – The connector is non-polarized. Use AC24V power source — (AC24V 1A adapter) or DC 12V power source (DC12V 1A adapter). -
Page 9: Vandalproof Camera Mounting
SECTION 2: INSTALLATION Video Coax Connector Power Connector 2.1.1 What you need To install the camera you will need: 12 VDC or 24 VAC power source • Tools for mounting the camera • 2.2 Vandalproof camera mounting The camera can be installed on a junction box or directly to a wall or ceiling. -
Page 10: Plastic Camera Mounting
SECTION 2: INSTALLATION 2.3 Plastic camera mounting Connect the dome base to the mounting surface using four (4) screws. Route the power and video cables to the camera location and attach them to the camera drop cable (see General guidelines above). 2.4 Camera adjustments Attach a video setup monitor to the yellow RCA (EXTRA VIDEO OUT) connector inside the camera assembly, or setup a remote monitor for viewing video from the camera. -
Page 11: Cleaning
SECTION 2: INSTALLATION Adjust the image with the focus and zoom levers as required. Configure your camera using the software menus in the OSD (On Screen Display). See Software Setup in the following section of this manual. Place the dome cover over the base and adjust the dome window. Tighten the captive screws that secure the cover to the base. -
Page 12: Software Setup
SECTION 3: SOFTWARE SETUP SECTION 3 Software Setup Use the SETUP joystick on the PC board to navigate through the menu system. Press the joystick down (toward the PC board) to enter the SETUP menu or select an entry, rock the stick up or down to highlight an item in the list, and left or right display the option you want to select. - Page 13 SECTION 3: SOFTWARE SETUP 3.2.1 LENS The LENS menu is used to control screen brightness. Options: DC / Video / Manual • For this camera, select only DC or MANUAL, then press the joystick in to open the LENS menu. In the LENS MENU, adjust the DC GAIN an/or AI THRESHOLD (auto iris) to produce the best image, then select PREVIOUS PAGE.
-
Page 14: Exposure Mode
SECTION 3: SOFTWARE SETUP When the rectangle is green, rock the joystick UP, DOWN, LEFT and RIGHT to expand the rectangle in different directions. Then press the joystick down to select the contraction rectangle (red). When the rectangle is red, rock the joystick UP, DOWN, LEFT and RIGHT to contract the rectangle in different directions. Then press and hold the joystick down momentarily to save your settings and return to the FOCUS DETECTOR menu. -
Page 15: Wdr
SECTION 3: SOFTWARE SETUP 3.2.8 SENS-UP The Sens-Up function, when activated, helps to maintain a clear image in dark lighting conditions. Options: 2X, 4X, 8X, 16X, 32X • OFF : Deactivates the SENS-UP function • 3.3 WDR WDR (Wide Dynamic Range) function brightens dark areas in images with large bright areas. Options: LOW / MIDDLE / HIGH •... -
Page 16: White Balance
SECTION 3: SOFTWARE SETUP WDR Off WDR ON 3.4 WHITE BALANCE White Balance (WB) is used to correct screen colors for lighting conditions. Options are: ATW : The ATW mode continuously monitors the image and adjusts WB. • INDOOR : Select this option when the color temperature is between 4000°K ~ 8500°K •... -
Page 17: Day/Night
To set up the switching time and switching speed for the AUTO mode, press SET. COLOR : The picture is displayed in color. • B/W : The picture is always displayed in black and white. • High Performance 690TVL CCTV Dome Camera User Manual... -
Page 18: Image Adj
SECTION 3: SOFTWARE SETUP 3.6 IMAGE ADJ.. Select IMAGE ADJ.. to open the IMAGE submenu. 3.6.1 FREEZE Freeze creates a still image of the screen. Options: OFF / ON • 3.6.2 FLIP Flip allows you to reverse the image horizontally, vertically, or both. Options: OFF / HORIZ / VERT / BOTH •... -
Page 19: Special
SECTION 3: SOFTWARE SETUP FLIP: OFF FLIP: HORIZ FLIP: VERT FLIP: BOTH 3.6.3 SHARPNESS The outline of the video image becomes more distinct as the level of SHARPNESS setting increases. If the SHARPNESS is set too high, noise may appear. Adjustment range: -8 ~ 8 3.6.4 COLOR GAIN Used to control the color level in the image. - Page 20 SECTION 3: SOFTWARE SETUP Select SPECIAL to open the submenu. 3.7.1 CAMERA ID You can enter a unique name for the respective camera. The maximum length of the ID is ten characters. Options: OFF : Camera ID is not displayed. •...
-
Page 21: Video Standard
SECTION 3: SOFTWARE SETUP Rock the joystick to DOWN to highlight the POSITION line. Rock the joystick to LEFT or RIGHT to change the position option. Options include: UP-LEFT / UP-CENTER / UP-RIGHT / DOWN-LEFT / DOWN-RIGHT — 3.7.2 VIDEO I/O The VIDEO I/O submenu offers several options including VIDEO STANDARD, VIDEO OUT, DIGITAL OUT, 656 OSD, and FIELD ORDER. - Page 22 SECTION 3: SOFTWARE SETUP 3.7.4 MOTION The MOTION feature is used to detect movements in the image and alert the security system observer with a banner message. The camera detects movement by sensing changes of outlines, level of brightness, and color. Options: OFF : Do not sense for motion.
- Page 23 ENABLE MASKS window. Repeat this procedure with a other masks to block other areas of the image. In the ENABLE MASKS window, select PREV. to return to the previous window. MASK COLOR : Rock the joystick LEFT or RIGHT to change the color of the mask on the image. Options: WHITE / BLACK / RED. •...
-
Page 24: Rs485 Setup
SECTION 3: SOFTWARE SETUP 3.7.6 SYNC SYNC sets the video synchronization mode. Options: INT : Internal synchronization • LL.. (EXTERNAL LINELOCK) : The line-lock feature enables you to synchronize the video signal between cameras through • adjusting the video phase of the camera signal. After the phase is adjusted, press the joystick down (toward the PC board) to save the setting. -
Page 25: Specifications
SECTION 4: SPECIFICATIONS SECTION 4 Specifications Table 1. Item Specifications Item Specification Image Sensor Piixim 1/3” High Sensitivity Digital Sensor Effective Pixels 758 (H) x 540 (V) Dynamic Range 120dB (maximum), 102dB (typical) Horizontal Resolution 690TVL effective (color), 800TVL effective (B/W) Min. -
Page 26: Appendix A Troubleshooting
APPENDIX A: TROUBLESHOOTING APPENDIX A Troubleshooting Problem Solution - Check the power connections. Nothing appears on the screen. - Check the video cable connections. - Ensure that the lens mode is set to DC (VIDEO). - Clean the lens with a soft, clean cloth. The video image is not clear. -
Page 27: Appendix B Camera Dimensions
APPENDIX B: CAMERA DIMENSIONS APPENDIX B Camera Dimensions Camera with vandalproof housing 2.95" Camera with plastic housing 3.29" High Performance 690TVL CCTV Dome Camera User Manual...
