- Page 1 High Performance Indoor/Outdoor Color CCTV Dome Camera User Manual Products: BLK-CCD203VS, BLK-CCD205VH, BLK-CPD206VH, BLK-CCD223VS, BLK-CCD225VH, BLK-CPD226VH Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference.
- Page 2 Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. WARNING To prevent electric shock and risk of fire hazards: Use a power source that is within specification only. CAUTION Do NOT expose this appliance to rain or moisture. REGULATORY NOTICE This device complies with Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv SECTION 1 Introduction . -
Page 4: Precautions
PRECAUTIONS Precautions Do not install the camera in extreme temperature conditions. Use the camera in environments where temperature is between 14°F and 122°F. Ensure adequate ventilation. Do not install or use the camera in an environment where the humidity is high. It can degrade the image quality. Do not install the camera under unstable lighting conditions. -
Page 5: Introduction

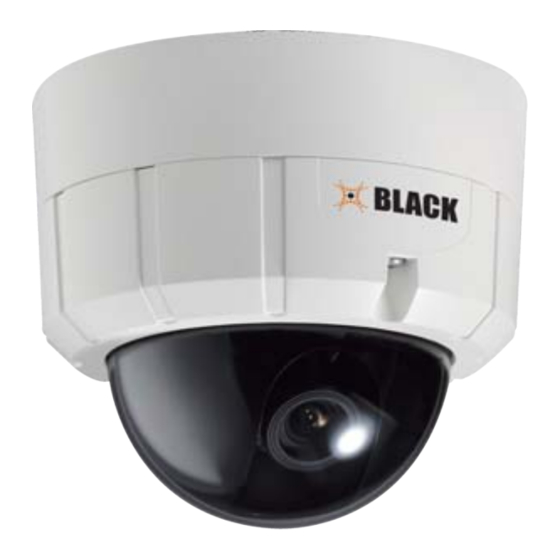

SECTION 1: INTRODUCTION SECTION 1 Introduction DIGIOP Black high performance indoor/outdoor CCTV dome cameras feature a very high resolution Sony CCD sensor providing 600 ® TVL, with a 2.8 – 11 mm lens, a digital wide dynamic range, dual voltage range support (24 VAC, 12 VDC), and on-screen display (OSD) for control and setup. -
Page 6: Cameras With A Vandalproof Enclosure
SECTION 1: INTRODUCTION Lens IR Array Focus Lever Joystick / Zoom Lever OSD Control Video Out Tilt/Pan Bracket Internal Components - Cameras With IR 1.1 Cameras with a vandalproof enclosure Vandalproof cameras are IP67 rated and include a rugged die-cast aluminum enclosure. They are flush surface mountable using the mount adaptor box supplied. -
Page 7: Cameras With A Plastic Enclosure
SECTION 1: INTRODUCTION What’s in the box Optional dome bracket for wall and ceiling mounting 1.1.2 What you need To install the camera you will need: 12 VDC or 24 VAC power source • Tools for mounting the camera • 1.2 Cameras with a plastic enclosure 1.2.1 What’s in the box Your camera includes the following:... - Page 8 SECTION 1: INTRODUCTION Mounting screws (4) • L-wrench • User manual • Dome bracket (optional) • What’s in the box Optional dome bracket www.digiop.com...
-
Page 9: Installation
• Camera drop cable: The camera drop cable includes two connectors: • Power connector (black with green terminal adapter) – The connector is non-polarized. Use AC24V power source — (AC24V 1A adapter) or DC 12V power source (DC12V 1A adapter). -
Page 10: Vandalproof Camera Mounting
SECTION 2: INSTALLATION Video Coax Power Connector Connector 2.1.1 What you need To install the camera you will need: 12 VDC or 24 VAC power source • Tools for mounting the camera • 2.2 Vandalproof camera mounting The camera can be installed on a junction box or directly to a wall or ceiling. -
Page 11: Plastic Camera Mounting
SECTION 2: INSTALLATION 2.3 Plastic camera mounting Connect the dome base to the mounting surface using four (4) screws. Route the power and video cables to the camera location and attach them to the camera drop cable (see General guidelines above). 2.4 Camera adjustments Attach a video setup monitor to the yellow RCA (EXTRA VIDEO OUT) connector inside the camera assembly, or setup a remote monitor for viewing video from the camera. - Page 12 SECTION 2: INSTALLATION Ceiling mounting Wall mounting Adjust the image with the focus and zoom levers. Configure your camera using the software menus in the OSD. See Software Setup in the following section of this manual. Place the dome cover over the base and adjust the dome window. Tighten the captive screws that secure the cover to the base.
-
Page 13: Software Setup
SECTION 3: SOFTWARE SETUP SECTION 3 Software Setup Use the SETUP joy stick on the OSD control panel to navigate through the menu system. Press the joy stick down (toward the PC board) to enter the SETUP menu or select an entry, rock the stick up or down to highlight an item in the list, and left or right display the option you want to select. -
Page 14: White Balance
SECTION 3: SOFTWARE SETUP DWDR: The DWDR feature employs intelligent light level control to compensate for strong backlight conditions. DWDR: OFF / ON DWDR OFF DWDR ON 3.3 WHITE BALANCE WHITE BAL: You can select one of the following modes: ATW1 / ATW2 / AWC g SET / MANUAL (INDOOR / OUTDOOR / MANUAL) ATW1: Automatically adjusts color according to the available lighting for temperature range: 2500°K to 9500°K. -
Page 15: Backlight
SECTION 3: SOFTWARE SETUP 3.4 BACKLIGHT BACKLIGHT: Select OFF / BLC / HLC BLC (Back Light Compensation) AREA SEL: Select AREA1, AREA2 — AREA STATE: Select OFF / ON — GAIN: Select 0 ~ 255 steps — HEIGHT: Select 0 ~ 15 steps —... -
Page 16: Day&Night
N -> D DELAY: 1 ~ 30 SEC — COLOR: Day&Night only color mode B/W: Day&Night black and white (B/W) mode BURST: OFF / ON — IR SMART: OFF / ON. This option controls the IR LED output level to compensate for object distance. The IR SMART —... -
Page 17: Dpc (Dead Pixel Compensation)
SECTION 3: SOFTWARE SETUP R GAIN: 0 ~ 255 HEIGHT: 0 ~ 15 WIDTH: 0 ~ 15 LEFT/RIGHT: 0 ~ 15 TOP/BOTTOM: 0 ~ 15 IR LEVEL: HIGH / LOW — EXT: Day&Night EXT mode 3.6 DPC (Dead Pixel Compensation) Select DPC for dead pixel compensation processing. - Page 18 SECTION 3: SOFTWARE SETUP MOTION: Select camera title menu (Text edit) AREA SEL: Select AREA1, AREA2, AREA3, AREA4 — AREA STATE: Select OFF / ON — HEIGHT: Select 0 ~ 15 steps — WIDTH: Select 0 ~ 15 steps — LEFT/RIGHT: Select 0 ~ 15 steps —...
- Page 19 SECTION 3: SOFTWARE SETUP T: You can adjust the parking line thickness. (0 ~ 15 steps) — IMAGE ADJ.: You can adjust camera image. LENS SHAD: LEVEL: 0 ~ 255 steps — 2DNR: (on-screen Digital Noise Reduction) (OFF/ON) — MIRROR: (reverse the camera image horizontally) (OFF/ON) —...
- Page 20 GAMMA: 0.05 ~ 1.00 steps PED LEVEL: 0 ~ 63 steps COLOR GAIN: 0 ~ 255 steps NEG.IMAGE: You can invert a color image, or a black and white image. (OFF/ON) — COMM ADJ.: CAM ID: Select the camera ID. 1 ~ 255 —...
-
Page 21: Specifications
BLK-CCD225VH √ BLK-CPD206VH BLK-CPD226VH √ √ TDN: True Day & Night, uses an IR cut filter instead of switching the image to black and white. IR: Built-in infrared LED array Table 2. Component Specifications Component Value Image Sensor 1/3" SONY Super HAD CCD II Total Pixels 811(H) ×... - Page 22 SECTION 4: SPECIFICATIONS Component Value All Day / Night / (0~255 steps) Day&Night Auto / Color / BW / Ext Auto Level / Delay selectable Burst off/on / IR Smart off/on (Gain/level selectable) Dead Pixels Compensation Special Title / MD / PM / Parking / Image / Comm / Language / Version Cam Title Text edit Motion...
-
Page 23: Appendix A Troubleshooting
APPENDIX A: TROUBLESHOOTING APPENDIX A Troubleshooting Problem Solution Nothing appears on the screen. - Check the power connections. - Check the video cable connections. - Ensure that the lens mode is set to DC (VIDEO). The video image is not clear. - Clean the lens with a soft, clean cloth. -
Page 24: Appendix B Camera Dimensions
APPENDIX B: CAMERA DIMENSIONS APPENDIX B Camera Dimensions Camera with vandalproof housing 2.95" Camera with plastic housing 3.29" www.digiop.com...
