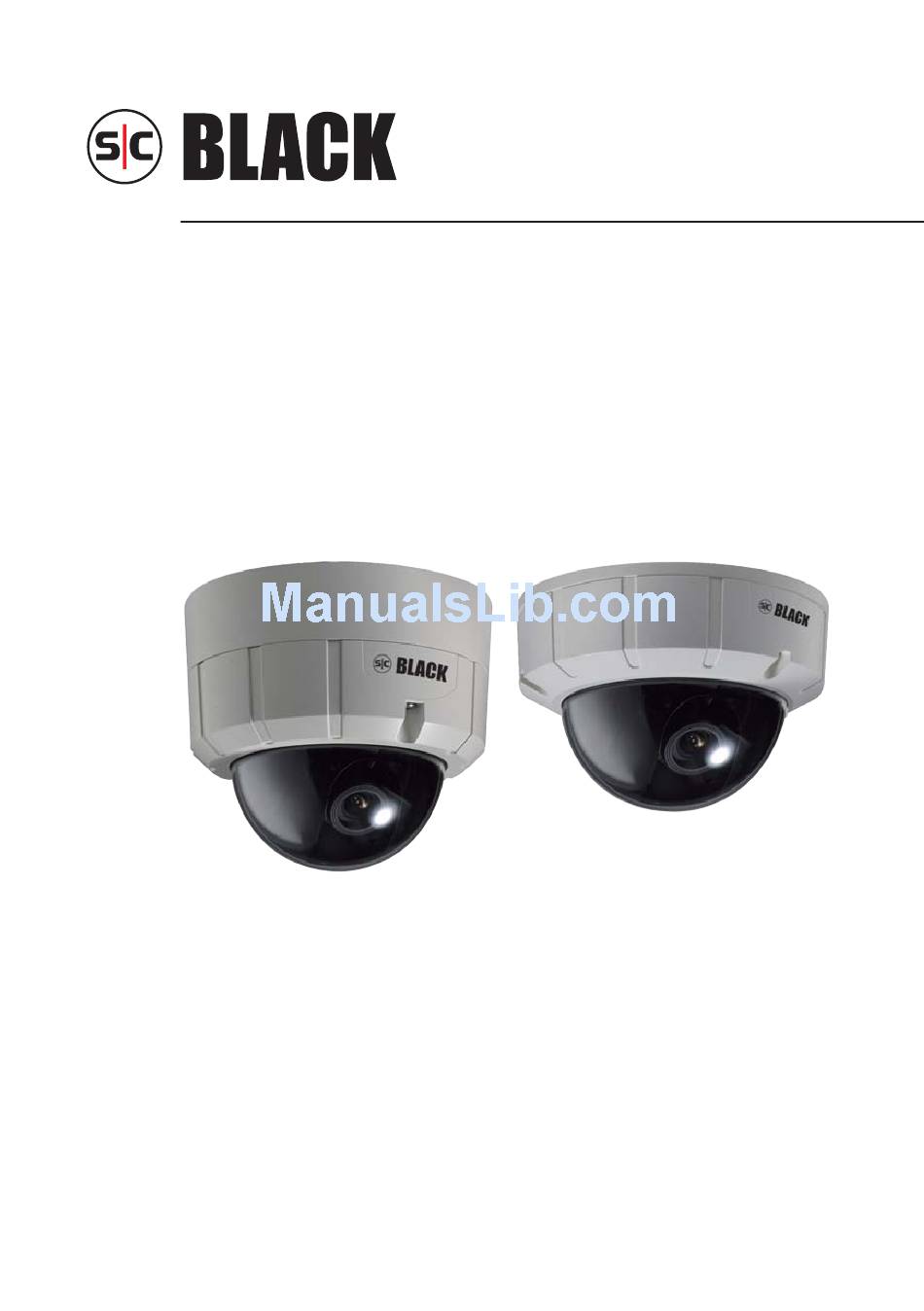

- Page 1 ® High Performance 690TVL Indoor/Outdoor Color CCTV Dome Camera User Manual Products: BLK-CWD208VH, BLK-CWD228VH Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-690TVL_DomeCameras_CM...
-
Page 2: Regulatory Notice
LEGAL NOTICE SC Black is a registered trademark of Supercircuits, Inc. Supercircuits products are designed to meet safety and performance standards with the use of specific Supercircuits authorized accessories. Supercircuits disclaims liability associated with the use of non- Supercircuits authorized accessories. -
Page 3: Table Of Contents
Table of Contents Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv Introduction. -
Page 4: Precautions
Do not expose an indoor camera to rain or spill liquids on it. If it gets wet, wipe it dry immediately. Liquids can contain minerals that corrode electronic components. Check the power source to ensure that it is within specifications before connecting it to the camera. www.sc-black.com... -
Page 5: Introduction

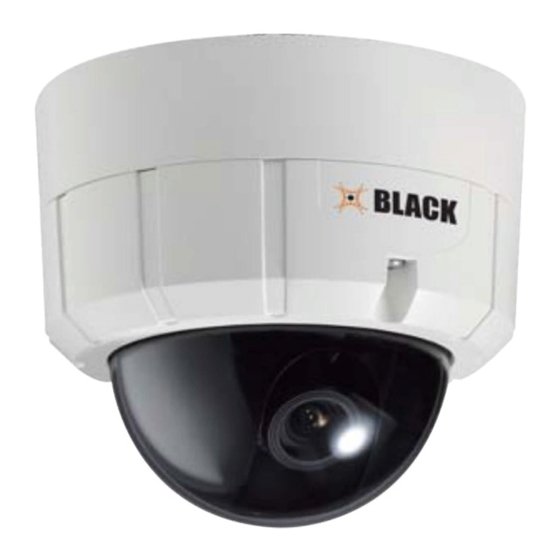

SECTION 1: INTRODUCTION SECTION 1 Introduction SC Black high performance indoor/outdoor CCTV dome cameras feature a very high resolution Pixim ® 1/3” High Sensitivity Digital sensor providing 690 TVL (color), with a 2.8 – 11mm lens, a digital wide dynamic range, dual voltage range support (24 VAC, 12 VDC), and on-screen display (OSD) for control and setup. -
Page 6: Cameras.with.a.vandalproof.enclosure
Your camera includes the following: Security tool • Machine screws (4) • Mounting cap • Mounting screws (4) • L-wrench • User manual • Dome bracket (optional) • What’s in the box Optional dome bracket for wall and ceiling mounting www.sc-black.com... -
Page 7: Cameras.with.a.plastic.enclosure
SECTION 1: INTRODUCTION 1.3 Cameras with a plastic enclosure 1.3.1 What’s in the box Your camera includes the following: Mounting screws (4) • L-wrench • User manual • Dome bracket (optional) • What’s in the box Optional dome bracket High Performance 690TVL CCTV Dome Camera User Manual... -
Page 8: Installation
• Camera drop cable: The camera drop cable includes two connectors: • Power connector (black with green terminal adapter) – The connector is non-polarized. Use — AC24V power source (AC24V 1A adapter) or DC 12V power source (DC12V 1A adapter). -
Page 9: Vandalproof.camera.mounting
SECTION 2: INSTALLATION Video Coax Power Connector Connector 2.1.1 What you need To install the camera you will need: 12 VDC or 24 VAC power source • Tools for mounting the camera • 2.2 Vandalproof camera mounting The camera can be installed on a junction box or directly to a wall or ceiling. -
Page 10: Plastic.camera.mounting
Power on the camera and video monitor. While observing video from the camera, adjust the pan/tilt swivel and PCB bracket to aim the camera in the preferred direction. Ceiling mounting Wall mounting www.sc-black.com... -
Page 11: Cleaning
SECTION 2: INSTALLATION Adjust the image with the focus and zoom levers as required. Configure your camera using the software menus in the OSD (On Screen Display). See Software Setup in the following section of this manual. Place the dome cover over the base and adjust the dome window. Tighten the captive screws that secure the cover to the base. -
Page 12: Software.setup
Change the option by rocking the joystick rocking the joystick to UP or DOWN to RIGHT or LEFT 3.1 PRESETS Options (see the screen image above): NORMAL / INDOOR / OUTDOOR • 3.2 EXPOSURE.. Selecting EXPOSURE.. opens the EXPOSURE submenu. www.sc-black.com... - Page 13 SECTION 3: SOFTWARE SETUP 3.2.1 LENS The LENS menu is used to control screen brightness. Options: DC / Video / Manual • For this camera, select only DC or MANUAL, then press the joystick in to open the LENS menu. In the LENS MENU, adjust the DC GAIN an/or AI THRESHOLD (auto iris) to produce the best image, then select PREVIOUS PAGE.
- Page 14 LOW / MIDDLE / HIGH • 3.2.6 HIGHLIGHT Highlight optimize the scene when high dynamic range lighting is detected. Options are: ON : Bright parts of the image are most visible • OFF : dark parts of the image are most visible • www.sc-black.com...
-
Page 15: Wdr
SECTION 3: SOFTWARE SETUP 3.2.7 COLOR ROLL Color Roll helps to control a detector that finds color fluorescent roll. Options: LOW / MIDDLE / HIGH • • 3.2.8 SENS-UP The Sens-Up function, when activated, helps to maintain a clear image in dark lighting conditions. Options: 2X, 4X, 8X, 16X, 32X •... -
Page 16: White.balance
MANUAL : Select manual to fine-tune the white balance. To use this feature, set the white balance • using the ATW or AWB mode, switch to MANUAL mode and fine-tune the white balance, then press SET (press the joystick toward the PC board (down)). www.sc-black.com... -
Page 17: Day/Night
SECTION 3: SOFTWARE SETUP The White Balance function may not perform optimally: NOTE When the color temperature of the image has a very high temperature range (e.g. • clear sky, or sunset) When the ambient illumination of the subject is low. •... -
Page 18: Image.adj
SECTION 3: SOFTWARE SETUP COLOR : The picture is displayed in color. • B/W : The picture is always displayed in black and white. • 3.6 IMAGE ADJ.. Select IMAGE ADJ.. to open the IMAGE submenu. 3.6.1 FREEZE Freeze creates a still image of the screen. Options: OFF / ON •... -
Page 19: Special
SECTION 3: SOFTWARE SETUP FLIP: OFF FLIP: HORIZ FLIP: VERT FLIP: BOTH 3.6.3 SHARPNESS The outline of the video image becomes more distinct as the level of SHARPNESS setting increases. If the SHARPNESS is set too high, noise may appear. Adjustment range: -8 ~ 8 3.6.4 COLOR GAIN Used to control the color level in the image. - Page 20 To set the camera ID name, highlight the ID row, then press SET. The first character in the name field will blink. Rock the joystick left or right to change the character. Press SET to select the character and move to the next character. Repeat until the complete ID name is shown. www.sc-black.com...
-
Page 21: Video.standard
SECTION 3: SOFTWARE SETUP Rock the joystick to DOWN to highlight the POSITION line. Rock the joystick to LEFT or RIGHT to change the position option. Options include: UP-LEFT / UP-CENTER / UP-RIGHT / DOWN-LEFT / DOWN-RIGHT — 3.7.2 VIDEO I/O The VIDEO I/O submenu offers several options including VIDEO STANDARD, VIDEO OUT, DIGITAL OUT, 656 OSD, and FIELD ORDER. - Page 22 MESSAGE TIME : Set the duration of the banner message that appears on the image when — motion is detected. SETUP MOTION ZONE.. ; Select this option to select the area of the image to monitor for — motion. www.sc-black.com...
- Page 23 SECTION 3: SOFTWARE SETUP When the rectangle is white, rock the joystick UP, DOWN, LEFT and RIGHT to position the rectangle. Then press the joystick down (toward the PC board) to select the expansion rectangle (green). When the rectangle is green, rock the joystick UP, DOWN, LEFT and RIGHT to expand the rectangle in different directions.
- Page 24 In the ENABLE MASKS window, select PREV. to return to the previous window. MASK COLOR : Rock the joystick LEFT or RIGHT to change the color of the mask on the image. • Options: WHITE / BLACK / RED. 3.7.6 SYNC SYNC sets the video synchronization mode. Options: INT : Internal synchronization •...
-
Page 25: Specifications
SECTION 4: SPECIFICATIONS SECTION 4 Specifications Table 1. Item Specifications Item Specification Image Sensor Piixim 1/3” High Sensitivity Digital Sensor Effective Pixels 758 (H) x 540 (V) Dynamic Range 120dB (maximum), 102dB (typical) Horizontal Resolution 690TVL effective (color), 800TVL effective (B/W) Min. -
Page 26: Appendix A Troubleshooting
Check that an appropriate power source is connected to the camera. and the camera surface is hot. Color is not correct. Check the WHITE BAL settings in the SETUP menu. The screen flickers continually. Check that the camera is not pointing at a bright object. www.sc-black.com... -
Page 27: Camera.dimensions
APPENDIX B: CAMERA DIMENSIONS APPENDIX B Camera Dimensions Camera with vandalproof housing 2.95" Camera with plastic housing 3.29" High Performance 690TVL CCTV Dome Camera User Manual...
