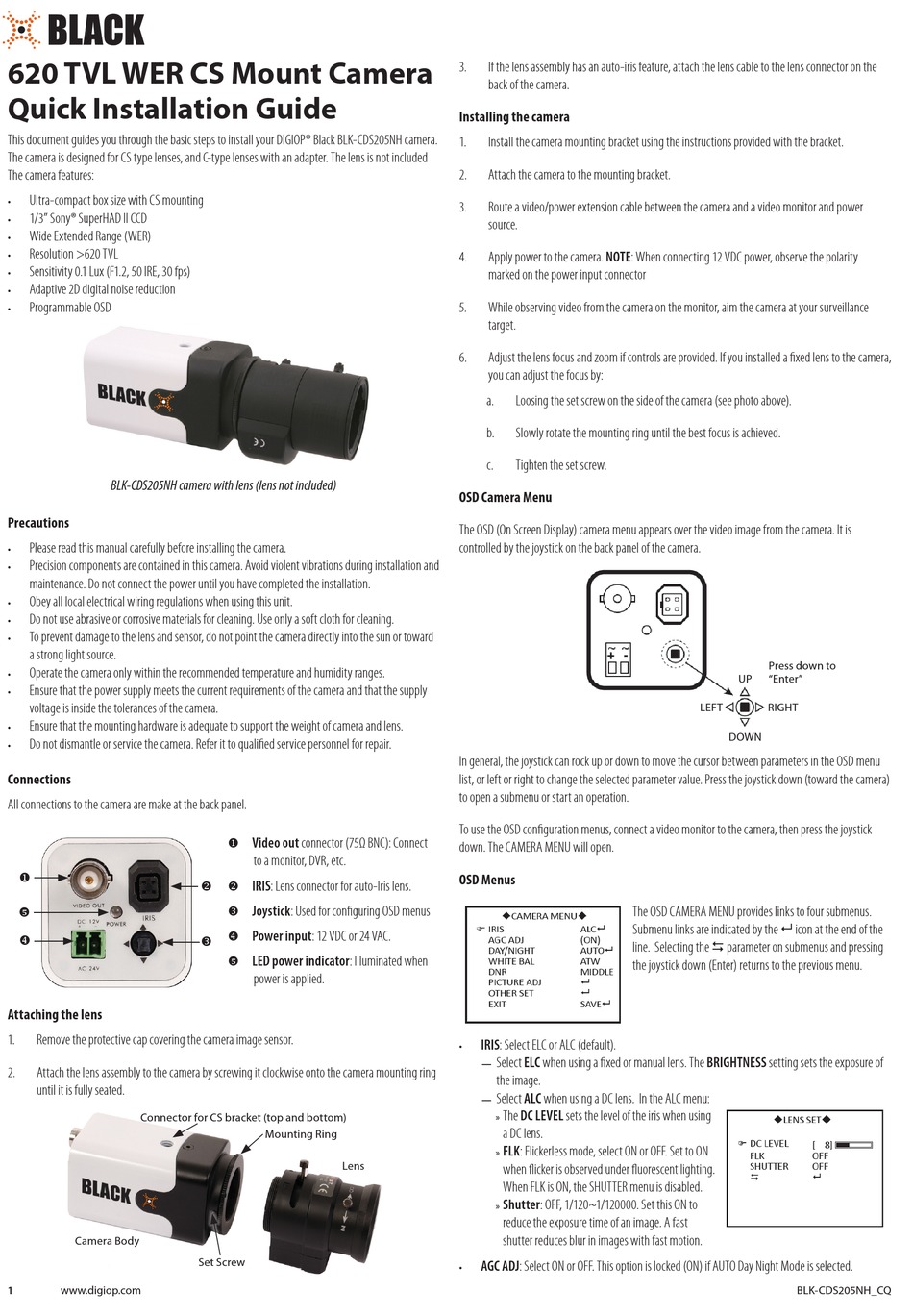

Black BLK-CDS205NH Quick Installation Manual

620 TVL WER CS Mount Camera

Quick Installation Guide

This document guides you through the basic steps to install your DIGIOP® Black BLK-CDS205NH camera.
The camera is designed for CS type lenses, and C-type lenses with an adapter. The lens is not included
The camera features:
Ultra-compact box size with CS mounting
•
1/3" Sony® SuperHAD II CCD
•
Wide Extended Range (WER)
•
Resolution >620 TVL
•
Sensitivity 0.1 Lux (F1.2, 50 IRE, 30 fps)
•
Adaptive 2D digital noise reduction
•
Programmable OSD
•
BLK-CDS205NH camera with lens (lens not included)
Precautions
Please read this manual carefully before installing the camera.
•
Precision components are contained in this camera. Avoid violent vibrations during installation and
•
maintenance. Do not connect the power until you have completed the installation.
Obey all local electrical wiring regulations when using this unit.
•
Do not use abrasive or corrosive materials for cleaning. Use only a soft cloth for cleaning.
•
To prevent damage to the lens and sensor, do not point the camera directly into the sun or toward
•
a strong light source.
Operate the camera only within the recommended temperature and humidity ranges.
•
Ensure that the power supply meets the current requirements of the camera and that the supply
•
voltage is inside the tolerances of the camera.
Ensure that the mounting hardware is adequate to support the weight of camera and lens.
•
Do not dismantle or service the camera. Refer it to qualified service personnel for repair.
•
Connections
All connections to the camera are make at the back panel.

y

Attaching the lens
1. Remove the protective cap covering the camera image sensor.
2. Attach the lens assembly to the camera by screwing it clockwise onto the camera mounting ring
until it is fully seated.
Connector for CS bracket (top and bottom)
Camera Body
1 www.digiop.com
Video out connector (75Ω BNC): Connect

to a monitor, DVR, etc.
IRIS: Lens connector for auto-Iris lens.


Joystick: Used for configuring OSD menus

Power input: 12 VDC or 24 VAC.


LED power indicator: Illuminated when
y
power is applied.
Mounting Ring
Lens
Set Screw
3. If the lens assembly has an auto-iris feature, attach the lens cable to the lens connector on the
back of the camera.
Installing the camera
1. Install the camera mounting bracket using the instructions provided with the bracket.
2. Attach the camera to the mounting bracket.
3. Route a video/power extension cable between the camera and a video monitor and power
source.
4. Apply power to the camera. NOTE: When connecting 12 VDC power, observe the polarity
marked on the power input connector
5. While observing video from the camera on the monitor, aim the camera at your surveillance
target.
6. Adjust the lens focus and zoom if controls are provided. If you installed a fixed lens to the camera,
you can adjust the focus by:
a. Loosing the set screw on the side of the camera (see photo above).
b. Slowly rotate the mounting ring until the best focus is achieved.
c. Tighten the set screw.
OSD Camera Menu
The OSD (On Screen Display) camera menu appears over the video image from the camera. It is
controlled by the joystick on the back panel of the camera.
In general, the joystick can rock up or down to move the cursor between parameters in the OSD menu
list, or left or right to change the selected parameter value. Press the joystick down (toward the camera)
to open a submenu or start an operation.
To use the OSD configuration menus, connect a video monitor to the camera, then press the joystick
down. The CAMERA MENU will open.
OSD Menus
IRIS: Select ELC or ALC (default).
•
Select ELC when using a fixed or manual lens. The BRIGHTNESS setting sets the exposure of
—
the image.
Select ALC when using a DC lens. In the ALC menu:
—
The DC LEVEL sets the level of the iris when using
»
a DC lens.
FLK: Flickerless mode, select ON or OFF. Set to ON
»
when flicker is observed under fluorescent lighting.
When FLK is ON, the SHUTTER menu is disabled.
Shutter: OFF, 1/120~1/120000. Set this ON to
»
reduce the exposure time of an image. A fast
shutter reduces blur in images with fast motion.
AGC ADJ: Select ON or OFF. This option is locked (ON) if AUTO Day Night Mode is selected.
•
Press down to
"Enter"
UP
LEFT RIGHT
DOWN
The OSD CAMERA MENU provides links to four submenus.
Submenu links are indicated by the 8 icon at the end of the
line. Selecting the D parameter on submenus and pressing
the joystick down (Enter) returns to the previous menu.
