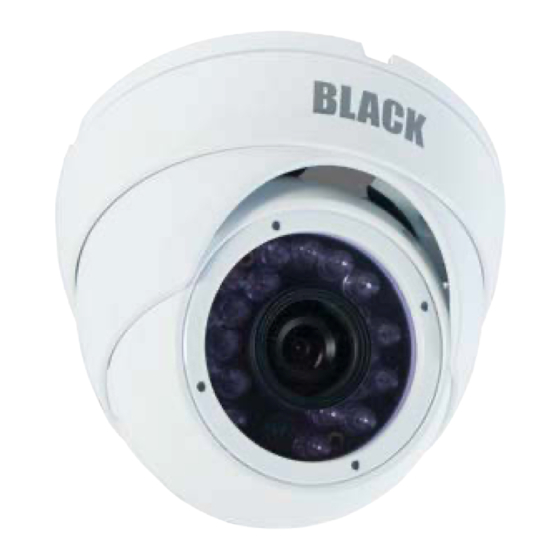

Black BLK-HD33IR User Manual

Hd-sdi digital video ir led dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

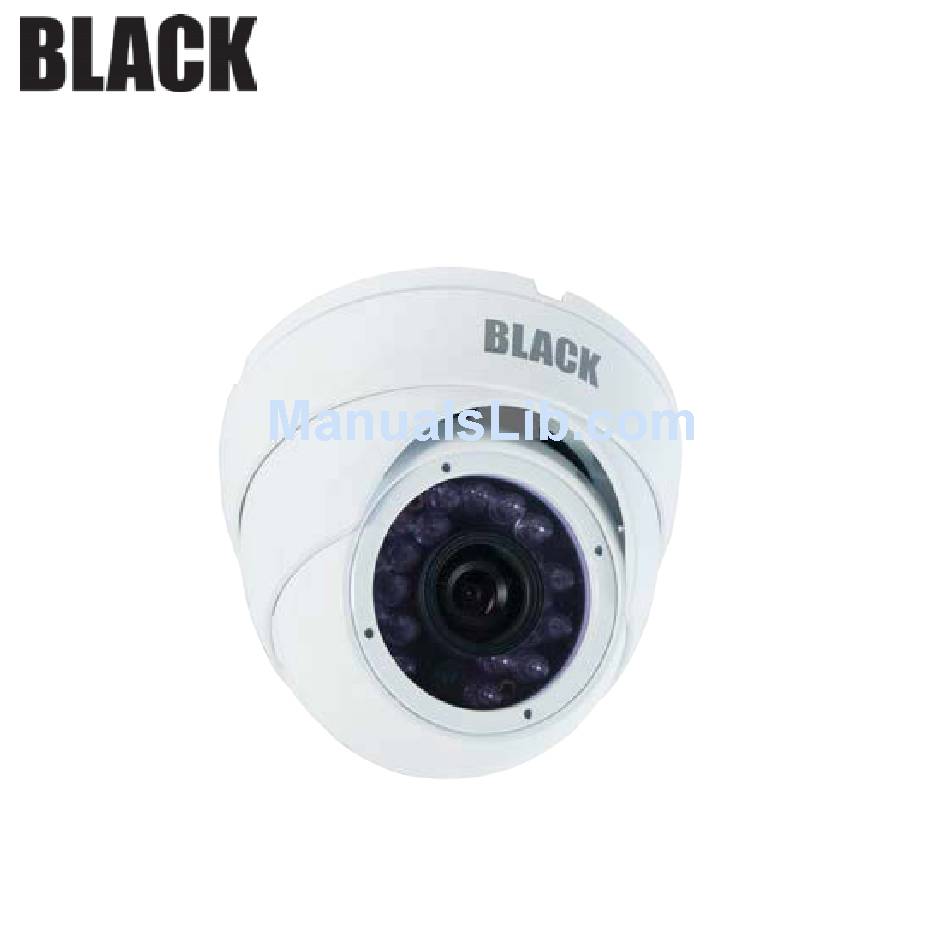

BLK-HD33IR HD-SDI Digital Video IR LED
Dome Camera User Manual
Please read this manual before using your camera, and always follow the instructions
for safety and proper use. Save this manual for future reference.
BLK-HD33IR_CM 5/29/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLK-HD33IR and is the answer not in the manual?

Questions and answers

Related Manuals for Black BLK-HD33IR

Summary of Contents for Black BLK-HD33IR

  • Page 1 BLK-HD33IR HD-SDI Digital Video IR LED Dome Camera User Manual Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-HD33IR_CM 5/29/13...

  • Page 5: Table Of Contents

    CONTENTS 1. CAUTIONS 2. IMPORTANT SAFETY INSTRUCTION 3. FEATURES 4. EQUIPMENT AND ACCESSORIES 5. CAMERA COMPONENT DESCRIPTIONS 6. INSTALLATION 7. DIMENSIONS 8. SPECIFICATION 9. OSD MANUAL...

  • Page 6: Features

    3. FEATURES High resolution • SONY 1 / 3” 2.1 M progressive color CMOS image sensor 1920x1080 30 fps Support various digital video output • 720p60, 720p50, 1080p30, 1080p25 Video Outputs • Primary HD-SDI (BNC) Test / Setup TV Out (test point-adapter to BNC included) NTSC / PAL selectable OSD menu for setup and configuration •...

  • Page 7: Equipment And Accessories

    4. EQUIPMENT AND ACCESSORIES Camera Manual Template Screws, Set Screw / L-Wrench / Plastic Anchors Plastic Anchors Screws L-Wrench Set Screw Option - Remote Control (OSD Key) 114 ft max.

  • Page 8: Camera Component Descriptions

    5. CAMERA COMPONENT DESCRIPTIONS Housing Ball Photo Cell Housing Ball Bracket IR LED Housing Top Housing Bottom...

  • Page 9: Installation

    6. INSTALLATION Template 70° 140° 70° Plastic anchors (4) Tapping screws - 4x25L (4) Open Close Set screw - M2.5x3L L-Wrench...

  • Page 10: Monitor Connection

    MONITOR CONNECTION * Option: remote control (OSD key) RCA jack (OSD key jack) BNC female (2'nd video) 12 Vdc adapter 12 Vdc IN (black) BNC female HD-SDI IN (HD-SDI jack) Monitor NOTE: Cable connections may not be weatherproof. * Remote Control - Circuit Diagram (Option) Function SW1: menu OSD menu on / off, selection.

  • Page 11: Dimensions

    7. DIMENSIONS Unit (in.) 20-IR LED...

  • Page 13: Osd Manual

    9. OSD MANUAL • Menu structure Main Sub Menu Sub Menu BRIGHTNESS 0 ~ 20 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500, 1/1K, 1/2K, 1/4K, 1/8K, LEVEL MANUAL / 1/16K, 1/30K, 1/60K. SHUTTER AUTO RETURN BACK / EXIT EXPOSURE OFF, X2, X3, X4, X5, X6, X7, X8 0 ~ 10 BASE FREQ 60Hz / 50Hz...

  • Page 14: Sub Menu

    9. OSD MANUAL Main Sub Menu Sub Menu SHARPNESS 0 ~ 20 GAMMA 0 ~ 4 FLIP OFF / H FLIP / V FLIP / HV FLIP IMAGE LENS SHADING OFF / ON DZOOM 1X / 2X / 4X / 6X / 8X / 10X / 12X / 14X / 16X / 18X / 20X RESET DATA BACK / DEF RETURN...

  • Page 15: Function Description

    9. OSD MANUAL • Function Description 0. SETUP - EXPOSURE : Go sub menu for camera exposure control. - WHITE ALANCE : Go sub menu for camera white balance control. - D-WDR / BLC : Go sub menu for camera D-WDR or BLC action. - DNR : Control noise reduction setting.
  • Page 16 9. OSD MANUAL 3. D-WDR / BLC - MODE : Select D-WDR / BLC mode. > BLC : Act in Backlight compensation mode. > D-WDR : Digital wide dynamic range control. - BLC OSD : Display BLC control zone in screen. - BLC POS-X : Select BLC control zone vertical position.
  • Page 17 9. OSD MANUAL 7. SYSTEM - SDI FORMAT : 1080P / 720P - SDI FPS : 30 or 25 fps in 1080p mode. 60 or 50 fps in 720p mode. - CVBS FORMAT : NTSC / PAL • CVBS VIEW : CVBS out video angle setting.
