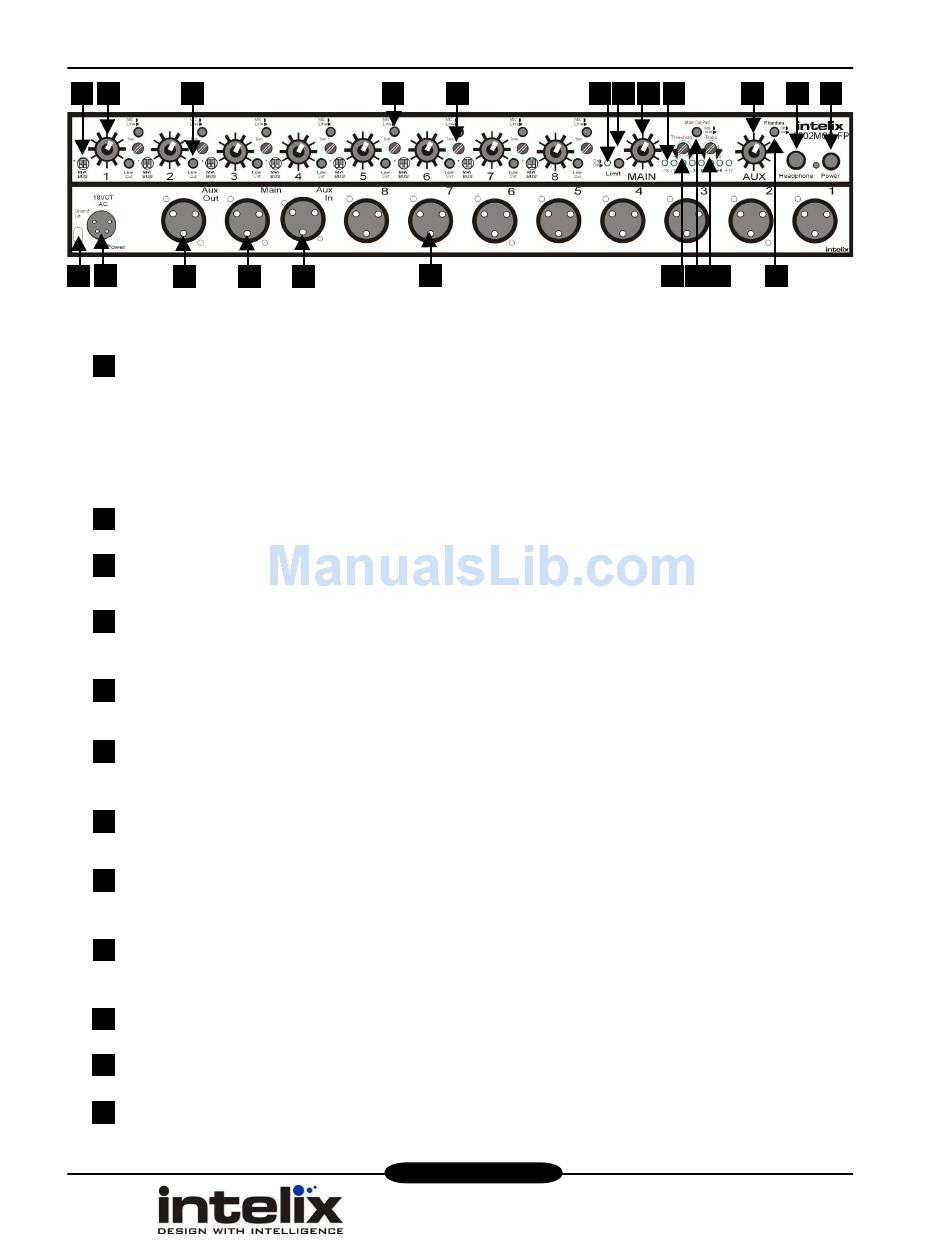

8002MCB-FP Front Panel
Main/Auxiliary Bus Selector (one per channel) - 4-position switch which selects the
1
destination of the input channel. Route channels as follows:
A) Main Bus - M switch up, A switch down
B) Auxiliary Bus - M switch down, A switch up
C) Both the Main and Auxiliary Bus - M switch up, A switch up
A) Neither Bus - M switch down, A switch down
2 Channel Volume Knob (one per channel) - controls volume on the input channel.
3 Low Cut Switch - eliminates low frequency noise, such as rumbling.
Input Mic/Line Switch - selects mic level (-50 dBu) or line level (0 dBu) for the corresponding
4
channel.
Channel Input Gain/Trim Control Potentiometer - Adjusts input stage gain over a range of 40
5
dBu.
Signal Clip LED - if lit (red), indicates a +18 dB or greater input signal which may cause
6
signal distortion.
Output Limiter Switch - eliminates clipping distortion of the output by controlling its
7
dynamic range.
8 Main Output Volume Knob - controls the output signal volume of the main bus.
LED Bar Graph Output Meter - displays output signal levels in decibels, ranging from -18
(green) to +12 (red) dB. May be set to indicate the signal of either the main or the auxiliary
9
bus and to indicate either the average or the peak signal.
10 Auxiliary Ouput Volume Knob - controls the output signal volume of the auxiliary bus.
11
Headphone Jack - 1/4 inch-diameter TRS mono jack
12 Power Switch Button - "in" position powers unit; "out" position powers down unit. LED
displays status.
