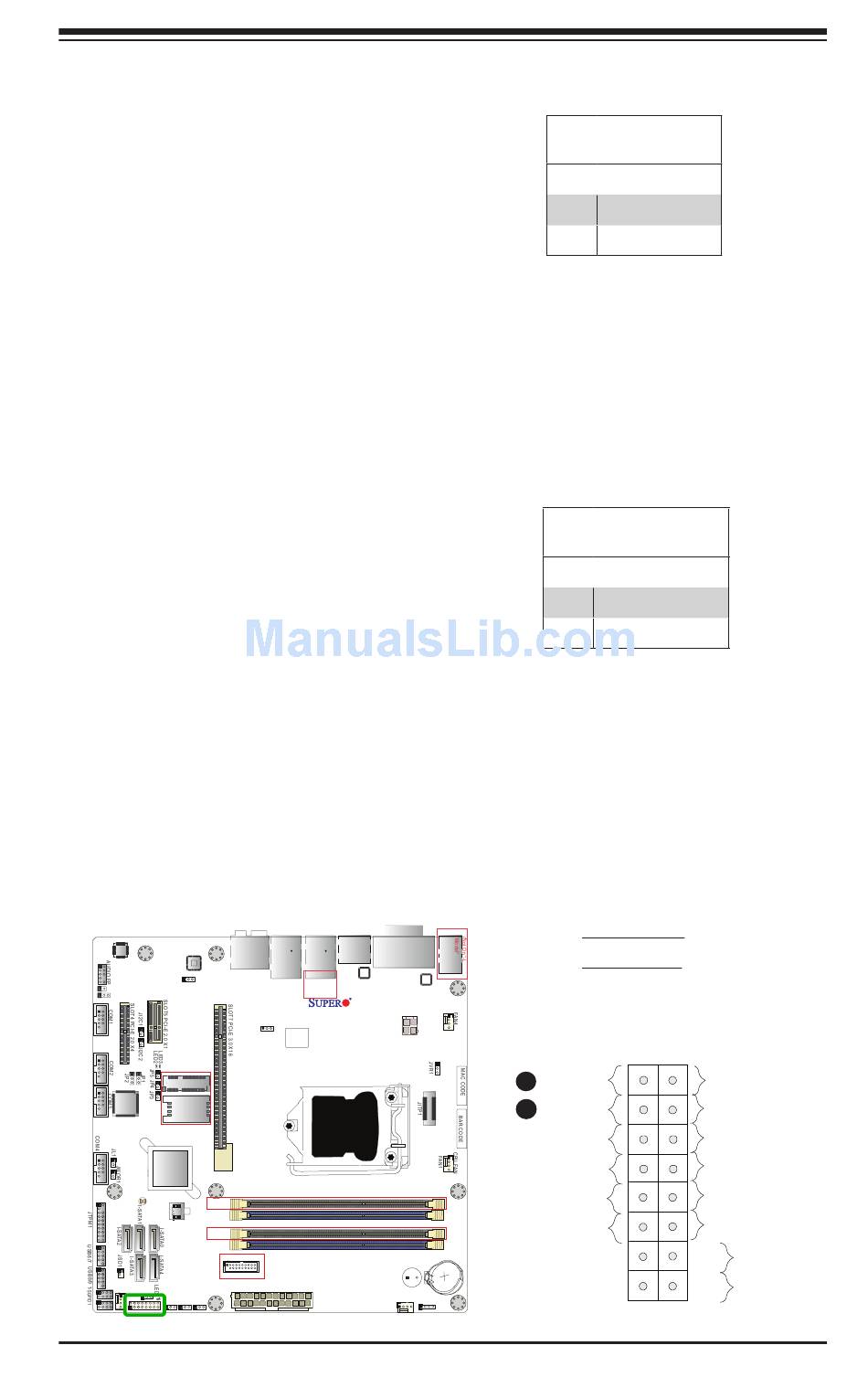

Front Control Panel Pin Definitions

Power LED

The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin definitions.

HDD LED

The HDD LED connection is located
on pins 13 and 14 of JF1. Attach a
cable here to indicate the status of
HDD-related activities, including IDE,
SATA activities. See the table on the
right for pin definitions.
HD AUDIO
JPL2
JHD_AC1
JPAC1
Not On "-L Model"
Intel PCH
Not On "-L Model"
JBT1
DIMMA1
DIMMA2
BIOS
Not On "-L Model"
DIMMB1
DIMMB2
Not On "-L Model"
USB10/11(3.0)
FAN3
JBR1
JF1
JLED1 JWD1
JPME1
T-SGPIO2
LAN2 LAN1 HDMI/DP
VGA/DVI
USB4/5
USB2/3(3.0)
Not On "-L
Model"
X10SLQ (-L)
Rev. 1.00
JPW2
JPL1
BIOS
LICENSE
CPU
ALWAYS POPULATE BLUE SOCKET FIRST
UNB NON-ECC DDR3 DIMM REQUIRED
SP1
JPW1
FAN2
JD1
2-23
Power LED
Pin Definitions (JF1)
Pin#
15
16
Pin Definitions (JF1)
Pin#
13
14
A. PWR LED
KB/MOUSE
B. HDD LED
USB0/1
A
Power LED
B
HDD LED
NIC1 LED
NIC2 LED
OH/Fan Fail LED
X
Ground
Battery
Ground
Chapter 2: Installation
Definition
+5V
Ground
HDD LED
Definition
+5V
HD Active
LED_Anode+
LED_Anode+
LED_Anode+
LED_Anode+
LED_Anode+
X
Reset Button
Reset
Power Button
PWR
2 1
