Supero X10SLQ User Manual

Hide thumbs Also See for X10SLQ:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual

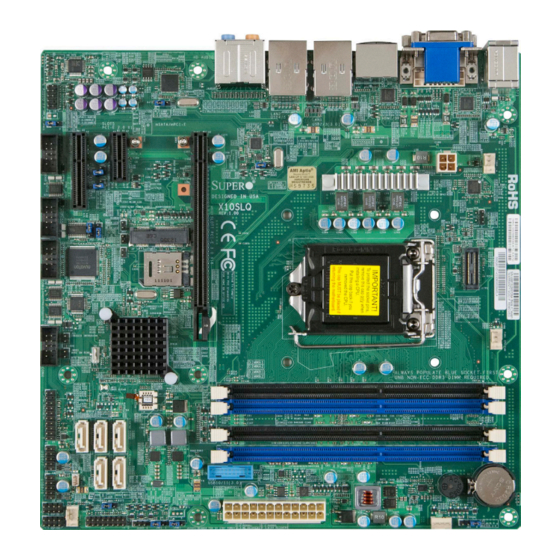

X10SLQ
X10SLQ-L
USER'S MANUAL
Revision 1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X10SLQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero X10SLQ

Summary of Contents for Supero X10SLQ

  • Page 1 X10SLQ X10SLQ-L USER’S MANUAL Revision 1.0a...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Motherboard

    X10SLQ/X10SLQ-L supports the 4th generation Intel® Core™ i7/i5/i3, Pentium, and Celeron processor in an LGA 1150 (H3) socket. With the Intel® Q87 Express chipset built in, the X10SLQ(-L) motherboard offers substantial enhance- ment in system performance and storage capability for high-end, cost-effective system platforms in a sleek package.

  • Page 4: Conventions Used In The Manual

    X10SLQ/X10SLQ-L User’s Manual Conventions Used in the Manual: Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself: Warning: Critical information to prevent damage to the components or injury to your- self.

  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    X10SLQ/X10SLQ-L User’s Manual Table of Contents Preface Chapter 1 Introduction Overview ......................1-1 Chipset Overview ..................1-11 Special Features ................... 1-12 PC Health Monitoring ..................1-12 ACPI Features ....................1-13 Power Supply ....................1-13 Super I/O ....................... 1-14 Chapter 2 Installation Standardized Warning Statements ..............
  • Page 7 Table of Contents VESA DisplayPort ..................2-20 HDMI Port ....................2-20 VGA/DVI-D Connections ................2-21 Front Control Panel ..................2-22 Front Control Panel Pin Definitions............... 2-23 Power LED ....................2-23 HDD LED ....................2-23 NIC1/NIC2 (LAN1/LAN2) ................2-24 Overheat (OH)/Fan Fail ................2-24 Reset Button ...................
  • Page 8 X10SLQ/X10SLQ-L User’s Manual Chapter 3 Troubleshooting Troubleshooting Procedures ................3-1 Technical Support Procedures ................ 3-3 Frequently Asked Questions ................3-3 Battery Removal and Installation ..............3-5 Returning Merchandise for Service..............3-6 Chapter 4 BIOS Introduction ...................... 4-1 Main Setup ...................... 4-2 Advanced Setup Configurations..............

  • Page 9: Chapter 1 Introduction

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.
  • Page 10 2. The following components are not available on the X10SLQ-L model: DIMM A1/ DIMM B1, Keyboard/Mouse, USB (2.0) 0/1, (3.0) 10/11, and the mini-PCIe card...
  • Page 11 • The following components are not available on the X10SLQ-L model: DIMM A1/DIMM B1, Keyboard/Mouse, USB (2.0) 0/1, (3.0) 10/11, and the mini-PCIe card with mSATA and 3G socket support.

  • Page 12: Jumper Description

    Pins 1-2 (Normal) JWD1 Watch Dog Enable Pins 1-2 (Reset) Note The following components are not available on the X10SLQ-L model: DIMM A1/DIMM B1, Keyboard/Mouse, USB (2.0) 0/1, (3.0) 10/11, and the mini-PCIe card with mSATA and 3G socket support.
  • Page 13 Chapter 1: Introduction X10SLQ/X10SLQ-L Headers/Connectors Connector Description Audio FP Front Panel Audio Header HD AUDIO High-Definition Audio Connectors (on the I/O back panel) Battery Onboard Battery COM1-COM4 COM1/COM2/COM3/COM4 Port Headers Fan1-Fan4 System/CPU Fan Headers (Fan1: CPU Fan) HDMI/DP Backpanel HDMI/DisplayPort...
  • Page 14 X10SLQ/X10SLQ-L User’s Manual X10SLQ/X10SLQ-L LED Indicators Description Color/State Status LED1 Onboard Standby PWR LED Green: Solid on Power On LED2 WLAN_LED LED3 Standby Power LED Green: Solid on Power On...

  • Page 15: Motherboard Features

    LGA1150 socket. Memory Four (4) SDRAM slots support up to 32 GB of DDR3 Unbuf- fered, Non-ECC 1600/1333 MHz memory for the X10SLQ. Two (2) SDRAM slots support up to 16 GB of DDR3 Unbuffered, Non-ECC 1600/1333 MHz memory for the X10SLQ-L.
  • Page 16 X10SLQ/X10SLQ-L User’s Manual One (1) mini-PCI-Express socket shared with mSATA (Not available on the -L model). Video and Graphics One (1) High Definition Multimedia Interface (HDMI), one (1) DisplayPort, one (1) DVI-D, and one (1) VGA from Intel Processor Graphics, support three independent Displays.
  • Page 17 Chapter 1: Introduction CD Utilities Download from www.supermicro.com Drivers/Software for Intel® Q87 Express Chipset Utilities Other ROHS (Full Compliance, Lead Free) Operating Temperature: 0-60C Dimensions Micro-ATX form factor (9.60" x 9.60") (243.84 mm x 243.84 mm)

  • Page 18: System Block Diagram

    Features pages for the actual specifications of each motherboard. Note 2: The following components are not available on the X10SLQ-L model: DIMM A1/DIMM B1, Keyboard/Mouse, USB (2.0) 0/1, (3.0) 10/11, and the mini-PCIe card with mSATA and 3G socket support.

  • Page 19: Chipset Overview

    Chapter 1: Introduction Chipset Overview The X10SLQ/X10SLQ-L supports a single 4th generation Intel® Core i7/i5/i3, Pentium, and Celeron processor in the LGA 1150 Socket. Built upon the function- ality and the capability of the Q87 Express chipset, the motherboard provides substantial enhancement to system performance and storage capability for high performance platforms in a sleek package.

  • Page 20: Special Features

    X10SLQ/X10SLQ-L User’s Manual Special Features Recovery from AC Power Loss Basic I/O System (BIOS) provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off, (in which case you must press the power switch to turn it back on), or for it to automatically return to a power-on state.

  • Page 21: Acpi Features

    Chapter 1: Introduction is used to notify the user of certain system events. For example, you can also configure SuperDoctor to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond predefined thresholds. ACPI Features ACPI stands for Advanced Configuration and Power Interface.

  • Page 22: Super I/O

    X10SLQ/X10SLQ-L User’s Manual 2. To provide adequate power to SATA devices, please connect the SATA DOM PWR connector (JSD1) to the power supply. It is strongly recommended that you use a high quality power supply that meets ATX power supply Specification 2.02 or above. It must also be SSI compliant. (For more information, please refer to the web site at http://www.ssiforum.org/).

  • Page 23: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 24 X10SLQ/X10SLQ-L User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re- emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-...

  • Page 25: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あり ます。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 26: Static-Sensitive Devices

    X10SLQ/X10SLQ-L User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 27: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the LGA1150 Processor 1. Press the load lever to release the load plate, which covers the CPU socket, from its locking position.
  • Page 28 X10SLQ/X10SLQ-L User’s Manual 2. Gently lift the load lever to open the load plate. Remove the plastic cap. 3. Use your thumb and your index finger to hold the CPU at the North center edge and the South center edge of the CPU.
  • Page 29 Chapter 2: Installation 5. Do not rub the CPU against the surface or against any pins of the socket to avoid damaging the CPU or the socket.) 6. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed.

  • Page 30: Installing An Active Cpu Heatsink With Fan

    X10SLQ/X10SLQ-L User’s Manual Installing an Active CPU Heatsink with Fan 1. Locate the CPU Fan power connec- tor on the motherboard. (Refer to the layout on the right for the CPU Fan location.) 2. Position the heatsink so that the...
  • Page 31 Chapter 2: Installation 7. Align the four heatsink fasten- ers with the mounting holes on the motherboard. Gently push the pairs of diagonal fasteners (#1 & #2, and #3 & #4) into the mounting holes until you hear a click. Also, make sure to orient each fastener so that the narrow end of the groove is pointing...

  • Page 32: Removing The Heatsink

    X10SLQ/X10SLQ-L User’s Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to remove the heatsink and to prevent damage done to the CPU or other components.

  • Page 33: Installing Ddr3 Memory

    Chapter 2: Installation Installing DDR3 Memory Note: Check the Supermicro website for recommended memory mod- ules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. LAN1 LAN2 HDMI/DP KB/MOUSE DIMM Installation VGA/DVI HD AUDIO...

  • Page 34: Removing Memory Modules

    The X10SLQ-L supports up to 16 GB of Unbuffered (UDIMM) DDR3 Non-ECC 1600/1333 MHz in 2 memory slots. Populating these DIMM modules with a pair of memory modules of the same type and same size will result in interleaved memory, which will improve memory performance.
  • Page 35 Chapter 2: Installation • Due to memory allocation to system devices, the amount of memory that remains available for operational use will be reduced when 4 GB of RAM is used. The reduction in memory availability is disproportional. See the following table for details.

  • Page 36: Motherboard Installation

    X10SLQ/X10SLQ-L User’s Manual Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fas- teners, metal ones are highly recommended because they ground the motherboard to the chassis.

  • Page 37: Installing The Motherboard

    Chapter 2: Installation Installing the Motherboard 1. Install the I/O shield into the back of the chassis. 2. Locate the mounting holes on the motherboard. (See the previous page.) 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 38: Connectors/Io Ports

    X10SLQ/X10SLQ-L User’s Manual Connectors/IO Ports The I/O ports are color coded in conformance with the industry standards. See the figure below for the colors and locations of the various I/O ports. Backplane I/O Panel LAN1 LAN2 HDMI/DP KB/MOUSE VGA/DVI HD AUDIO...

  • Page 39: Atx Ps/2 Keyboard/Mouse Ports (Not Available On The -L Model)

    Chapter 2: Installation ATX PS/2 Keyboard/Mouse PS/2 Keyboard/Mouse Pin Ports (Not available on the -L Definitions model) PS2 Keyboard PS2 Mouse Pin# Definition Pin# Definition The ATX PS/2 keyboard and PS/2 mouse are located above KB Data Mouse Data Back Panel USB Ports 0/1 on the No Connection No Connection motherboard.

  • Page 40: Universal Serial Bus (Usb)

    X10SLQ/X10SLQ-L User’s Manual Universal Serial Bus (USB) Four Universal Serial Bus 2.0 ports (0/1, 4/5) and two USB 3.0 ports (2/3) are located on the I/O back panel. In addition, two USB 2.0 headers (four USB 2.0 connections: 6/7, 8/9), and one USB 3.0 header (one USB 3.0 connections: 10/11) are also located on the motherboard to provide front chassis access using USB cables (not included).

  • Page 41: Ethernet Ports

    F. Mic_In HD AUDIO VGA/DVI USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) G. Line-Out Rev. 1.00 JPW2 JPL1 BIOS H. Line_In LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...

  • Page 42: Front Accessible Audio Header

    Refer to the board layout below for the location. This connector is used to display both high definition video and digital sound through an HDMI-capable display, using the same HDMI cable. The X10SLQ/-L supports HDMI Specification version 1.4a A. Audio Heade LAN1...

  • Page 43: Vga/Dvi-D Connections

    VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...

  • Page 44: Front Control Panel

    These connectors are designed spe- cifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.

  • Page 45: Front Control Panel Pin Definitions

    HDMI/DP KB/MOUSE B. HDD LED VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” LED_Anode+ Power LED HDD LED LED_Anode+ LED_Anode+ NIC1 LED Intel PCH...

  • Page 46: Nic1/Nic2 (Lan1/Lan2)

    X10SLQ/X10SLQ-L User’s Manual NIC1/NIC2 (LAN1/LAN2) LAN1/LAN2 LED Pin Definitions (JF1) The NIC (Network Interface Controller) Pin# Definition LED connection for LAN port 1 is located 9/11 on pins 11 and 12 of JF1, and the LED 10/12 Ground connection for LAN Port 2 is on Pins 9 and 10.

  • Page 47: Reset Button

    LAN1 HDMI/DP KB/MOUSE LAN2 VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” LED_Anode+ Power LED HDD LED LED_Anode+ LED_Anode+ Intel PCH NIC1 LED...

  • Page 48: Connecting Cables

    X10SLQ/X10SLQ-L User’s Manual Connecting Cables This section provides brief descriptions and pin-out definitions for onboard headers and connectors. Be sure to use the correct cable for each header or connector. For information on Backpanel USB and Front Panel USB ports, refer to Section 2-6.

  • Page 49: Fan Headers (Fan 1 - Fan 4)

    Chapter 2: Installation Fan Headers (Fan 1 - Fan 4) Fan Header Pin Definitions The X10SLQ/X10SLQ-L has four fan headers Pin# Definition (Fan 1-Fan 4). These fans are 4-pin fan head- Ground (Black) ers. Although pins 1-3 of the fan headers are 2.5A/+12V...

  • Page 50: Internal Buzzer (Sp1)

    X10SLQ/X10SLQ-L User’s Manual Internal Buzzer (SP1) Internal Buzzer Pin Definition The Internal Buzzer (SP1) can be Pin# Definitions used to provide audible indications for Pin 1 Pos. (+) Beep In various beep codes. See the table on Pin 2 Neg. (-) Alarm the right for pin definitions.

  • Page 51: Onboard Power Led (Jled1)

    VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 C. COM2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 D. COM3 JPW2 JPL1 BIOS E. COM4 LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...

  • Page 52: Dom Pwr Connector (Jsd1)

    X10SLQ/X10SLQ-L User’s Manual DOM PWR Connector (JSD1) DOM PWR Pin Definitions The Disk-On-Module (DOM) power connector, Pin# Definition located at JSD1, provides 5V power to a solid state DOM storage device connected to one of Ground the SATA ports. See the table on the right for Ground pin definitions.

  • Page 53: Tpm Header/Port 80 Header

    VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...

  • Page 54: T-Sgpio 1/2 Headers

    X10SLQ/X10SLQ-L User’s Manual T-SGPIO 1/2 Headers T-SGPIO Pin Definitions Two Serial-Link General Purpose Pin# Definition Definition Input/Output headers (T-SGPIO 1/2) are located on the motherboard to en- Ground Data hance system performance. T-SGPIO Load Ground 1/2 supports up to five SATA HDDs Clock (I-SATA0-I-SATA4).

  • Page 55: Jumper Settings

    VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...

  • Page 56: Cmos Clear (Jbt1)

    X10SLQ/X10SLQ-L User’s Manual CMOS Clear (JBT1) JBT1 is used to clear the saved system setup configuration stored in the CMOS chip. To clear the contents of the CMOS, completely shut down the system, remove the AC power cord and then short JBT1 with a jumper. Remove the jumper before powering on the system again.

  • Page 57: Audio Enable (Jpac1)

    VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...

  • Page 58: Management Engine (Me) Recovery

    X10SLQ/X10SLQ-L User’s Manual Management Engine (ME) Recovery ME Recovery Jumper Settings Use Jumper JPME1 to select ME Firm- Jumper Setting Definition ware Recovery mode, which will limit Normal (Default) resource allocation for essential system ME Recovery operation only in order to maintain nor- mal power operation and management.

  • Page 59: Bios Recovery (Jbr1)

    VGA/DVI HD AUDIO USB0/1 USB4/5 USB2/3(3.0) JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...

  • Page 60: Onboard Indicators

    X10SLQ/X10SLQ-L User’s Manual Onboard Indicators LAN1 LAN2 Link LED Activity LED LAN 1/LAN 2 LEDs Two LAN ports (LAN 1/LAN 2) are located GLAN 1/2 Activity Indicator on the I/O backplane of the motherboard. LED Settings Each Ethernet LAN port has two LEDs.

  • Page 61: 2-10 Sata Connections

    HD AUDIO USB0/1 USB4/5 USB2/3(3.0) D. I-SATA 3.0 #4 JPL2 Not On “-L JHD_AC1 JPAC1 Model” X10SLQ (-L) E. I-SATA 3.0 #3 Rev. 1.00 JPW2 JPL1 BIOS LICENSE Not On “-L Model” Intel PCH ALWAYS POPULATE BLUE SOCKET FIRST UNB NON-ECC DDR3 DIMM REQUIRED Not On “-L Model”...
  • Page 62 X10SLQ/X10SLQ-L User’s Manual Notes 2-40...

  • Page 63: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.

  • Page 64: Memory Errors

    X10SLQ/X10SLQ-L User’s Manual No Video 1. If the power is on, but you have no video--in this case, you will need to re- move all the add-on cards and cables first. 2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A for details on beep codes.)

  • Page 65: Technical Support Procedures

    Before contacting Technical Support, please make sure that you have followed all the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro does not sell directly to end users, so it is best to first check with your distributor or reseller for troubleshooting services.
  • Page 66 Note: Always use the file named “ami.bat” to update the BIOS, and insert a space between "ami.bat" and the filename. The BIOS-ROM-filename will bear the motherboard name (i.e., X10SLQ/X10SLQ-L) and build ver- sion as the extension. For example, "X10SLQ.115". When completed, your system will automatically reboot.

  • Page 67: Battery Removal And Installation

    Another solution is to use a USB floppy drive instead of the onboard floppy drive. For the IPMI jumper location, please check Chapter 1. Question: What is the heatsink part number for my X10SLQ/X10SLQ-L mother- board? Answer: For the 1U passive heatsink, ask for SNK-P0046P (back plate is included).

  • Page 68: Returning Merchandise For Service

    You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. For faster service, you may also obtain RMA authorizations online (http://www.supermicro. com/RmaForm/). When you return the motherboard to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.

  • Page 69: Chapter 4 Bios

    BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the X10SLQ (-L). The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter de- scribes the basic navigation of the AMI BIOS Setup Utility setup screens.

  • Page 70: Main Setup

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 71 Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The following BIOS items will also be displayed: Supermicro X10SLQ Version Build Date Memory Information Total Memory This displays the total size of memory available in the system.

  • Page 72: Advanced Setup Configurations

    X10SLQ/X10SLQ-L User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced Setup and press <Enter> to access the submenu items: Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Save & Exit System Boot Feature Setting ...

  • Page 73: Power Configuration

    Chapter 4: AMI BIOS Wait For 'F1' If Error This feature forces the system to wait until the 'F1' key is pressed if an error oc- curs. The options are Disabled and Enabled. Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture"...
  • Page 74 X10SLQ/X10SLQ-L User’s Manual • CPU Signature • Microcode Patch • Max (Maximum) CPU Speed • Min (Minimum) CPU Speed • CPU Speed • Processor Cores • Intel HT(Hyper-Threading) Technology • Intel VT-x (Virtualization) Technology • Intel SMX (Trusted Execution) Technology •...
  • Page 75 Chapter 4: AMI BIOS Active Processor Cores This feature determines how many CPU cores will be activated for each CPU. When all is selected, all cores in the CPU will be activated. (Please refer to Intel's web site for more information.) The options are All, 1, 2, and 3. Limit CPUID Maximum Select Enabled to set the maximum CPU ID value and to boot a legacy OS that cannot support processors with extended CPUID functions.
  • Page 76 X10SLQ/X10SLQ-L User’s Manual EIST EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consump- tion and heat dissipation. Please refer to Intel’s web site for detailed information.
  • Page 77 Chapter 4: AMI BIOS 2-Core Ratio Limit (Available when "Turbo Mode" is set to Enabled) This increases (multiplies) 2 clock speeds in the CPU core in relation to the bus speed when two CPU cores are active. Press "+" or "-" on your keyboard to change the value.
  • Page 78 X10SLQ/X10SLQ-L User’s Manual CPU C6 Report (Available when "CPU C-States" is set to Enabled) Select Enabled to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all caches is turned off.

  • Page 79: Chipset Configuration

    Chapter 4: AMI BIOS ACPI T State Select Enabled to support Advanced Configuration and Power Interface (ACPI) Throttling States (T State), which will lower the power consumption level for the system as to the power consumption level set for CPU Performance State 1 to achieve power efficiency.

  • Page 80: Primary Display

    X10SLQ/X10SLQ-L User’s Manual Primary Display Use this feature to select the graphics device to be used as the primary display. You can select from a device installed on the CPU IGFX, CPU SLOT, or PCH SLOT. The options are Auto, CPU IGFX, CPU SLOT, and PCH SLOT.

  • Page 81: Memory Configuration

    Chapter 4: AMI BIOS Gfx (Graphics) Low Power Mode Select Enabled to use the low power mode for internal graphics devices installed in a small form factor (SFF) computer. The options are Enabled and Disabled.Gfx (Graphics) Low Power Mode PCI-E Configuration ...
  • Page 82 X10SLQ/X10SLQ-L User’s Manual • Memory Voltage • DIMM A1 (Not available on the -L model) • DIMM A2 • DIMM B1 (Not available on the -L model) • DIMM B2 • CAS Latency (tCL) • Minimum Delay Time • CAS to RAS (tRCDmin) •...
  • Page 83 Chapter 4: AMI BIOS • Intel PCH Rev ID • USB Configuration • USB Devices EHCI1 Select Enabled to enable EHCI (Enhanced Host Controller Interface) Controller 1 for USB 2.0 support. One EHCI controller must always be enabled. The settings are Enabled and Disabled.

  • Page 84: Sata Configuration

    X10SLQ/X10SLQ-L User’s Manual Frontside Audio Mode This feature selects the type of audio output for the front_side audio header/ connection. Select HD Audio for High Definition; otherwise, select AC '97 for legacy audio. The options are HD Audio and AC' 97.
  • Page 85 Chapter 4: AMI BIOS Port 0 ~ Port 1 SATA Device Type This feature configures the selected SATA port to support either a solid state drive or hard disk drive. The options are Hard Disk Drive and Solid Sate Drive. Port 0 ~ Port 5 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization sequence to the device.
  • Page 86 X10SLQ/X10SLQ-L User’s Manual PCIe/PCI/PnP Configuration  This feature allows the user to set the PCI/PnP configurations for the following items: Above 4G Decoding Select Enabled for 64-bit devices to be decoded above the 4GB address space If 64bit PCI decoding is supported by the system. The options are Disabled and Enabled.

  • Page 87: Acpi Settings

    Chapter 4: AMI BIOS Onboard LAN1 Option ROM/Onboard LAN2 Option ROM Select iSCSI to use the iSCSI Option ROM to boot the computer using an iSCSI device installed in a LAN port specified. Select PXE (Preboot Execution Environ- ment) to boot the computer using a PXE device installed in a LAN port specified. Select Disabled to prevent system boot using a device installed in a LAN port.
  • Page 88 X10SLQ/X10SLQ-L User’s Manual Trusted Computing (Available when a Trusted Platform  Module is Detected) Configuration Security Device Support Select Enable for the AMI BIOS to automatically download the drivers needed to provide Trusted Computing platform support for this machine to ensure date integrity and network security.

  • Page 89: Firmware Update Configuration

    Chapter 4: AMI BIOS • ME Firmware Type • ME Firmware SKU • PTT Capability/State Firmware Update Configuration  ME FW Image Re-Flash Select Enable to re-flash the ME (Management Engine) Firmware. The options are Disable and Enable. AMT (Active Management Technology) Configuration Intel AMT Select Enabled to use Intel Active Management Technology (AMT) to enhance system performance.

  • Page 90: Acoustic Management Configuration

    X10SLQ/X10SLQ-L User’s Manual Acoustic Management Configuration  Acoustic Management Configuration Automatic Acoustic Management Select Enabled to support automatic acoustic management for your system. The options are Enabled and Disabled. Super IO Configuration  Super IO Chip NCT6776F (for Serial Port1/Serial Port2 Configuration)/Super...
  • Page 91 Chapter 4: AMI BIOS Transmit Mode (Available for Serial Port2 via Chip NCT6776F only) Use this feature to select data transmission mode for a serial port specified. The options are RS232 Mode, RS485 Mode, and RS422 Mode. H/W (Hardware) Monitor ...

  • Page 92: Serial Port Console Redirection

    X10SLQ/X10SLQ-L User’s Manual • • VBAT Serial Port Console Redirection  COM1/COM2 Use this feature to enable console redirection for COM1 and COM2 ports. The op- tions are Enabled and Disabled. The default setting is Disabled. Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.
  • Page 93 Chapter 4: AMI BIOS Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2. Flow Control This feature allows the user to set the flow control for Console Redirection to prevent data loss caused by buffer overflow.

  • Page 94: Console Redirection Settings (For Ems)

    X10SLQ/X10SLQ-L User’s Manual Console Redirection (for EMS) Select Enabled to use a COM Port selected by the user for Console Redirection. The options are Enabled and Disabled. Console Redirection Settings (for EMS)  This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

  • Page 95: Boot Settings

    Chapter 4: AMI BIOS Boot Settings Use this feature to configure Boot Settings: Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Exit Sets the system boot order Set Boot Priority Boot Device [CD/DVD] 2nd Boot Device [Hard Disk] 3rd Boot Device [USB Hard Disk]...
  • Page 96 X10SLQ/X10SLQ-L User’s Manual  Delete Boot Option Use this feature to remove a pre-defined boot device from which the system will boot during startup. The settings are [any pre-defined boot device]  Delete Driver Option Use this feature to remove a pre-defined driver from which the system will boot during startup.

  • Page 97: Security Settings

    Chapter 4: AMI BIOS Security Settings This menu allows the user to configure the following security settings for the system. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Exit Password Description Set Administrator Password. If ONLY the administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 98: Save & Exit

    X10SLQ/X10SLQ-L User’s Manual Save & Exit Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Exit Exit system setup after saving the Discard Changes and Exit changes.
  • Page 99 Chapter 4: AMI BIOS Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>. This enables the user to save any changes to the BIOS setup for future use. Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En- ter>.
  • Page 100 X10SLQ/X10SLQ-L User’s Manual Notes 4-32...

  • Page 101: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 102 X10SLQ/X10SLQ-L User’s Manual Notes...

  • Page 103: Appendix B Software Installation Instructions

    To install these software programs and drivers, click the icons to the right of these items. (Note: To install the Windows Operating System, please refer to the instructions posted on our website at http://www.supermicro.com/ support/manuals/.) Driver/Tool Installation Display Screen Note 1: Click the icons showing a hand writing on the paper to view the readme files for each item.

  • Page 104: Configuring Superdoctor ® Iii

    X10SLQ/X10SLQ-L User’s Manual B-2 Configuring SuperDoctor ® The SuperDoctor® III program is a Web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management tool is called the SD III Client. The SuperDoctor III program included on the CDROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 105 SuperDoctor® III Interface Display Screen-II (Remote Control) Note: The SuperDoctor III software and manual may be downloaded from our Website at: http://www.supermicro.com/products/accessories/software/SuperDoctorIII.cfm. For Linux, we still recommend that you use SuperDoctor II, this version is also available for download at the link above.
  • Page 106 X10SLQ/X10SLQ-L User’s Manual Notes...

  • Page 107: Appendix C Uefi Bios Recovery Instructions

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 108 Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it to "Super ROM" for BIOS recovery use.
  • Page 109 Appendix C: UEFI BIOS Recovery 6. After the process of BIOS Recovery is complete, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter AMI.BAT BIOSname.### at the prompt. Note: Do not interrupt this process until BIOS flashing is completed.
  • Page 110 X10SLQ/X10SLQ-L User’s Manual 9. After seeing the message that BIOS update is completed, unplug the AC pow- er cable from the power supply to clear CMOS, and then plug the AC power cable in the power supply again to power on the system.

  • Page 111: Appendix D Dual Boot Block

    Appendix D: Dual Boot Block Appendix D Dual Boot Block D-1 Introduction This motherboard supports the Dual Boot Block feature, which is the last-ditch mechanism to recover the BIOS boot block. This section provides an introduction to the feature. BIOS Boot Block A BIOS boot block is the minimum BIOS loader required to enable necessary hardware components for the BIOS crisis recovery flash that will update the main BIOS block.

  • Page 112: Steps To Reboot The System By Using Jumper Jbr1

    X10SLQ/X10SLQ-L User’s Manual D-2 Steps to Reboot the System by Using Jumper JBR1 1. Power down the system. 2. Close pins 2-3 on Jumper JBR1, and power on the system. 3. Follow the BIOS recovery SOP listed in the previous chapter (Appendix C).
  • Page 113 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
