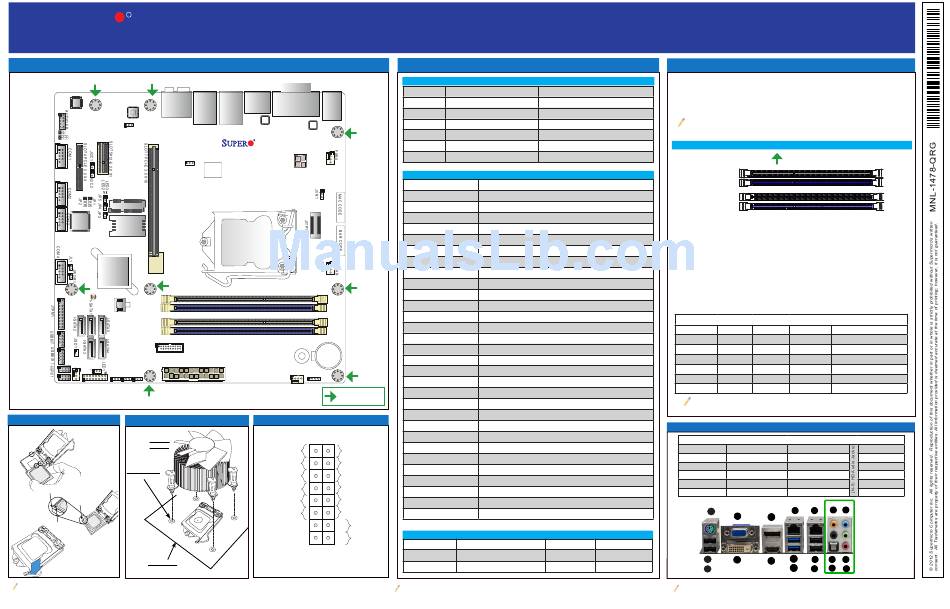

Supero X10SLQ Quick Reference Manual

S
UPERMICR
R
X10SLQ
Q r g
uICk eferenCe uIde
Motherboard Layout and Features
HD AUDIO
JPL2
JHD_AC1
JPAC1
JPL1
Intel PCH
JBT1
DIMMA1
DIMMA2
BIOS
DIMMB1
DIMMB2
USB10/11(3.0)
FAN3 JPW1
JBR1
JF1
JLED1 JWD1
JPME1
T-SGPIO2
CPU Installation
Heatsink Installation
Heatsink
with Fan
Mounting Hole
Notched Corner
Notched Corner
Corner Marker
Motherboard
Note: Graphics shown in this quick reference guide are for illustration only. Your components may or may not look exactly the same as drawings shown in this guide.
C I
ontaCt nformatIon
• www.supermicro.com (Email: support@supermicro.com)
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities: ftp://ftp.supermicro.com
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm
LAN1 HDMI/DP
LAN2 KB/MOUSE
VGA/DVI
USBO/1
USB4/5 USB2/3(3.0)
X10SLQ
Rev. 1.00
JPW2
BIOS
LICENSE
CPU
ALWAYS POPULATE BLUE SOCKET FIRST
UNB NON-ECC DDR3 DIMM REQUIRED
SP1
Battery
FAN2
JD1
= mounting hole
Front Panel Control (JF1)
Power LED LED_Anode+
LED_Anode+
HDD LED
NIC1 LED LED_Anode+
LED_Anode+
NIC2 LED
OH/Fan Fail LED
LED_Anode+
X
X
Reset Reset Button
Ground
Power Button
Ground PWR
2 1
P C
aCkage ontents
(Applies to individual-pack only)
• One (1) Supermicro Motherboard
• Five (5) SATA Cables
• One (1) I/O Shield
• One (1) Quick Reference Guide
Jumpers, Connectors and LED Indicators
Jumpers
JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 CMOS Clear Short contact pads to reset CMOS
JI C1/JI C2 SMB to PCI Slots Off (Disabled)
2 2
JPAC1 Audio Enable Pins 1-2 (Enabled)
JPL1/JPL2 LAN1/LAN2 Enable Pins 1-2 (Enabled)
JPME1 Intel ME Recovery Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Enable Pins 1-2 (Reset)
Connectors
Audio FP Front Panel Audio Header
HD AUDIO High-Definition Audio Connectors (on the I/O back panel)
Battery Onboard Battery
COM1-COM4 COM1/COM2/COM3/COM4 Port Headers
Fan1-Fan4 System/CPU Fan Headers (Fan1: CPU Fan)
HDMI/DP Backpanel HDMI/Display Port
JD1 Speaker/buzzer (Pins 3-4: Buzzer, Pins 1-4: External Speaker)
JF1 Front Panel Control Header
JL1 Chassis Intrusion Header
JLED1 Power LED Indicator Header
JP3 WPAN LED Header (from mini PCI-E card)
JP4 WLAN LED Header (from mini PCI-E card)
JP5 WWAN LED Header (from mini PCI-E card)
JPW1 24-pin ATX Main Power Connector (Required)
JPW2 +12V 4-pin CPU power Connector (Required)
JSD1 SATA DOM (Device_On_Module) Power Connector
JTPM1 Trusted Platform Module/Port 80 Connector
JWOR1 Wake_On-Ring Header
KB/Mouse Keyboard/Mouse Connectors
LAN1/LAN2 Gigabit (RJ45) Ports (LAN1/2)
SP1 Internal Speaker/Buzzer
I-SATA0-4 (Intel-)Serial ATA (SATA 3.0) Ports 0-4 (6Gb/sec) from the Q87
mSATA Mini SATA
Slot 5 PCI-Express 2.0 x1 Slot
Slot 7 PCI-Express 3.0 x16 Slot
Slot 4 PCI-Express 2.0 x4 Slot
T-SGPIO 1/2 Serial_Link General Purpose I/O Connection Headers 1/2
USB 0/1, 2/3, 4/5 Backpanel USB 2.0 Ports 0/1, 4/5 and USB 3.0 Ports 2/3
USB 10/11 Front Panel USB 3.0 Ports 10/11
USB 6/7, USB 8/9 Front Panel Accessible USB 2.0 Headers 6/7, 8/9
VGA/DVI Backpanel VGA/DVI (Digital Video Interface) Port
LED Indicators
LED1 Onboard Standby PWR LED Green: Solid on
LED2 WLAN_LED Green: Solid on
LED3 Standby Power LED Green: Solid on
Note: Refer to Chapter 2 of the User Manual for detailed information on jumpers, connectors, and LED indicators.
Memory Support
The X10SLQ supports up to 32GB of Unbuffered (UDIMM) DDR3 ECC
1600/1333 MHz in 4 memory slots. Populating these DIMM modules with a pair
of memory modules of the same type and same size will result in interleaved
memory, which will improve memory performance.
Note: For memory optimization, use only DIMM modules that have been validated by Supermicro.
For the latest memory updates, please refer to our website at http://www.supermicro.com/
products/motherboard.
DIMM Memory Installation
DIMMA1
DIMMA2
DIMMB1
DIMMB2
Memory Population Guidelines
When installing memory modules, the DIMM slots should be populated in the fol-
lowing order: DIMMA2, DIMMB2, then DIMMA1, DIMMB1.
• Always use DDR3 DIMM modules of the same size, type and speed.
• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed
of the slowest DIMM.
• The motherboard will support odd-numbered modules installed (1 ,3 ,5 ,or 7
modules). However, for best memory performance, install DIMM modules in
pairs.
Recommended Population (Balanced)
DIMMA2 DIMMB2 DIMMA1
2GB 2GB
2GB 2GB 2GB
4GB 4GB
4GB 4GB 4GB
8GB 8GB
8GB 8GB 8GB
Note: Up to 32GB of memory are supported. See chapter 2 of the User Manual for
complete memory population information.
Back Panel IO Connectors
I/O Back Panel
A. USB 2.0 Port 1 F. HDMI Port
B. USB 2.0 Port 0 G. DisplayPort Connector
C. Keyboard/Mouse H. USB 3.0 Port 2
D. DVI Port I. USB 3.0 Port 3
E. VGA Port J. Gb LAN Port 1
C
E G
Power On
WAN Activity
B D
F
Power On
A
Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU/
motherboard installation instructions.
Towards the CPU
DIMMB1 Total System Memory
4GB
2GB 8GB
8GB
4GB 16GB
16GB
8GB 32GB
K. USB 2.0 Port 5 N. SPDIF Out
L. USB 2.0 Port 4 O. Surround Out
M. Gb LAN Port 2 P. Center/LFE Out
Q. Mic In
R. Line Out
S. Line In
J M P S
HD Audio
I
L O R
H
K N Q
