3-40 Actuator Empty/Feeder

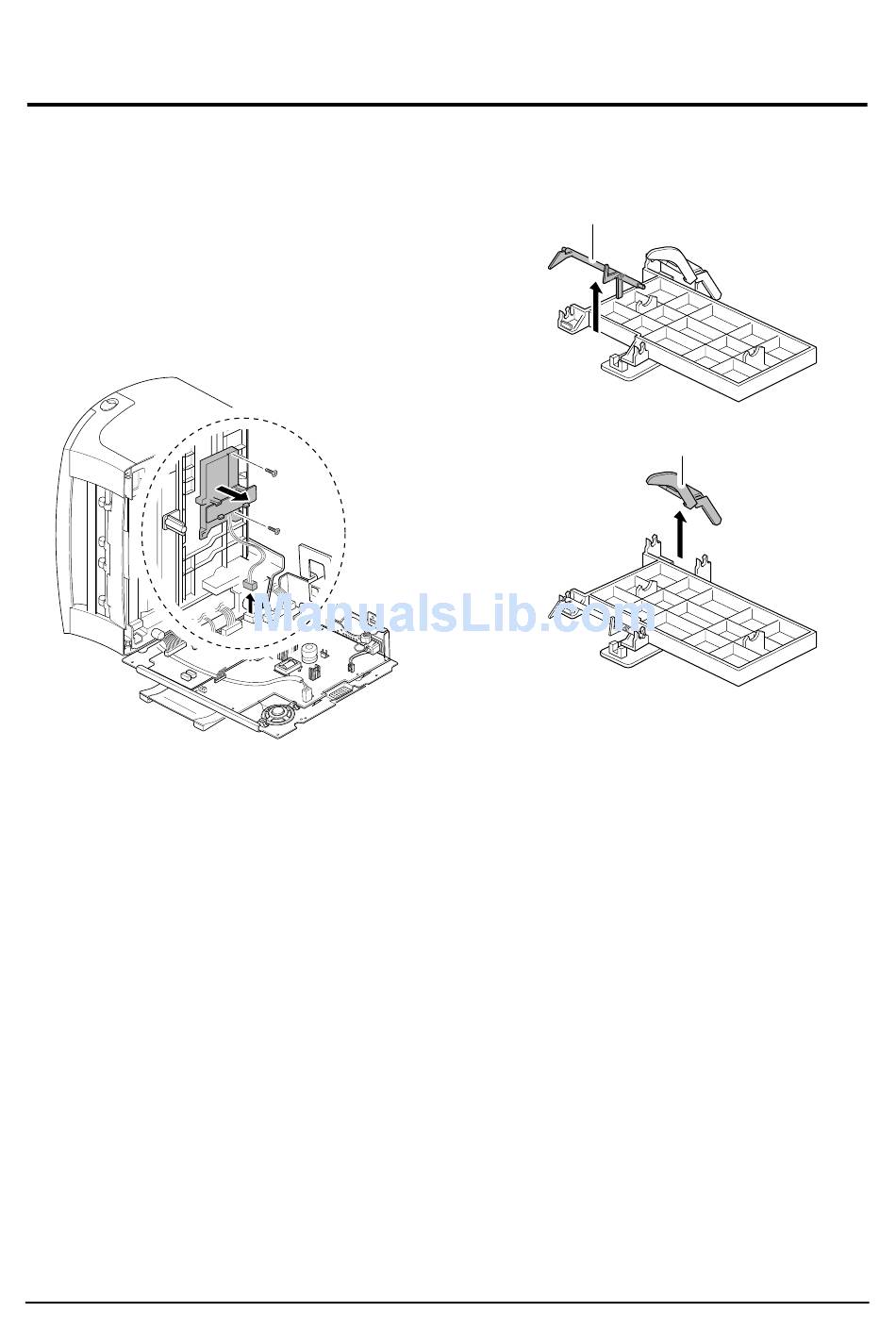

1. Before you remove the actuator empty/feeder, you
should remove:
– Rear cover (see page 3-9)
– Shield Engine ass'y (see page 3-19)
2. Remove one connector from the main board and two
screws securing the holder feed ass'y, then remove
the holder feeder ass'y.
3. Remove the Feed sensor and the Empty sensor.
Feed Sensor
Empty Sensor
Disassembly and Reassembly
3-23
