Muratec F-110 Field Engineering Manual page 23

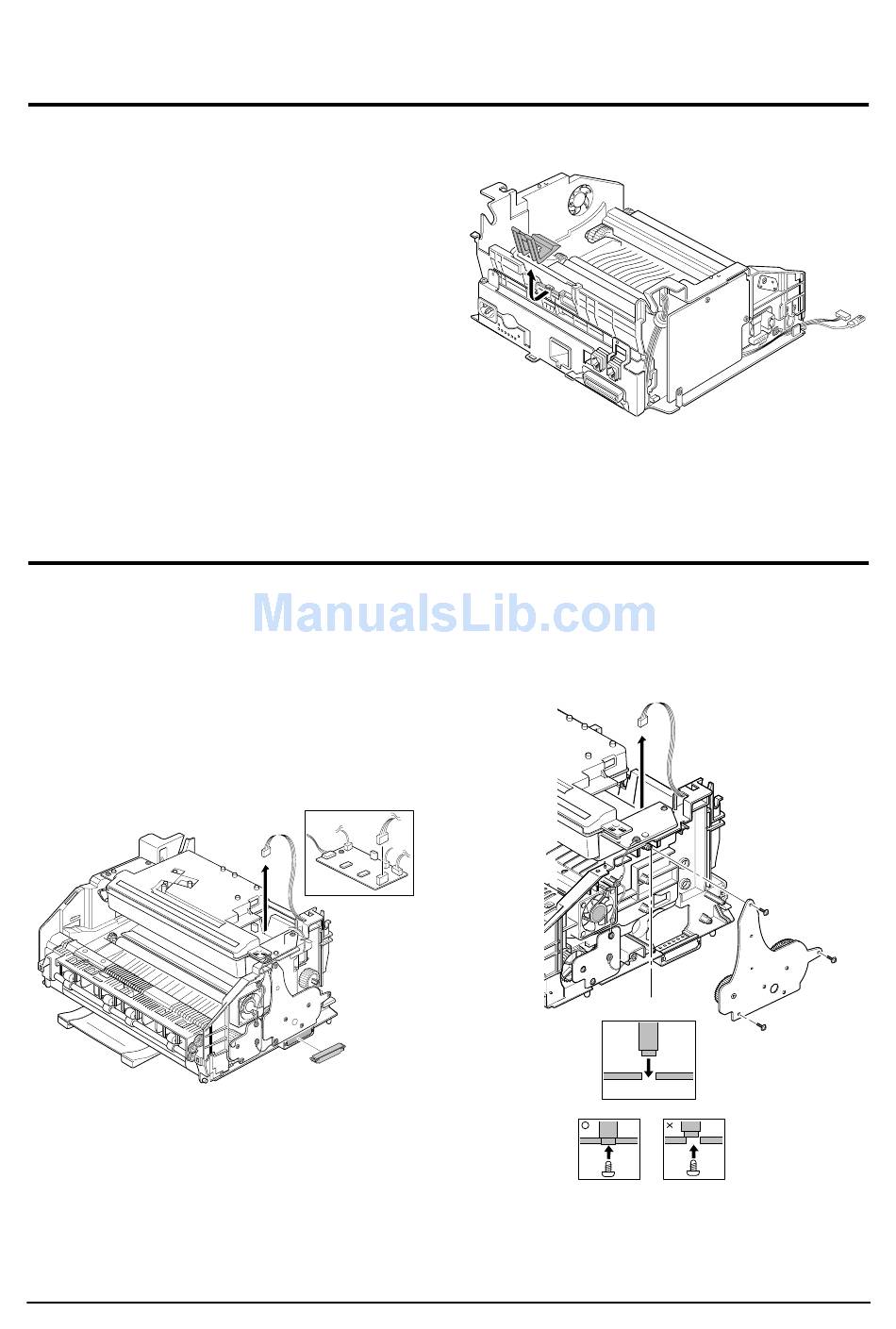

Disassembly and Reassembly
3-22 Holder-pad
1. Before you remove the holder-pad, you should
remove:
– All covers (see page 3-3, 3-9)
– LSU (see page 3-10)
– Plate upper (see page 3-12)
– Knock-up ass'y (see 3-13)
– Cap-Pad (see 3-13)
2. Remove the holder-pad from the main frame.
3-23 Motor ass'y
1. Before you remove the motor ass'y, you should
remove:
– All covers (see page 3-3, 3-9)
2. Remove four screws securing the motor ass'y and
unplug one connector from the engine board, then
remove the motor ass'y.
3-14
Note : When you reassemble the motor ass'y, make
sure that the boss shown in the figure below fit
into the corresponding screw holes on the motor
ass'y to allow the screws to be fastened properly.
Boss
