Disassembly and Reassembly

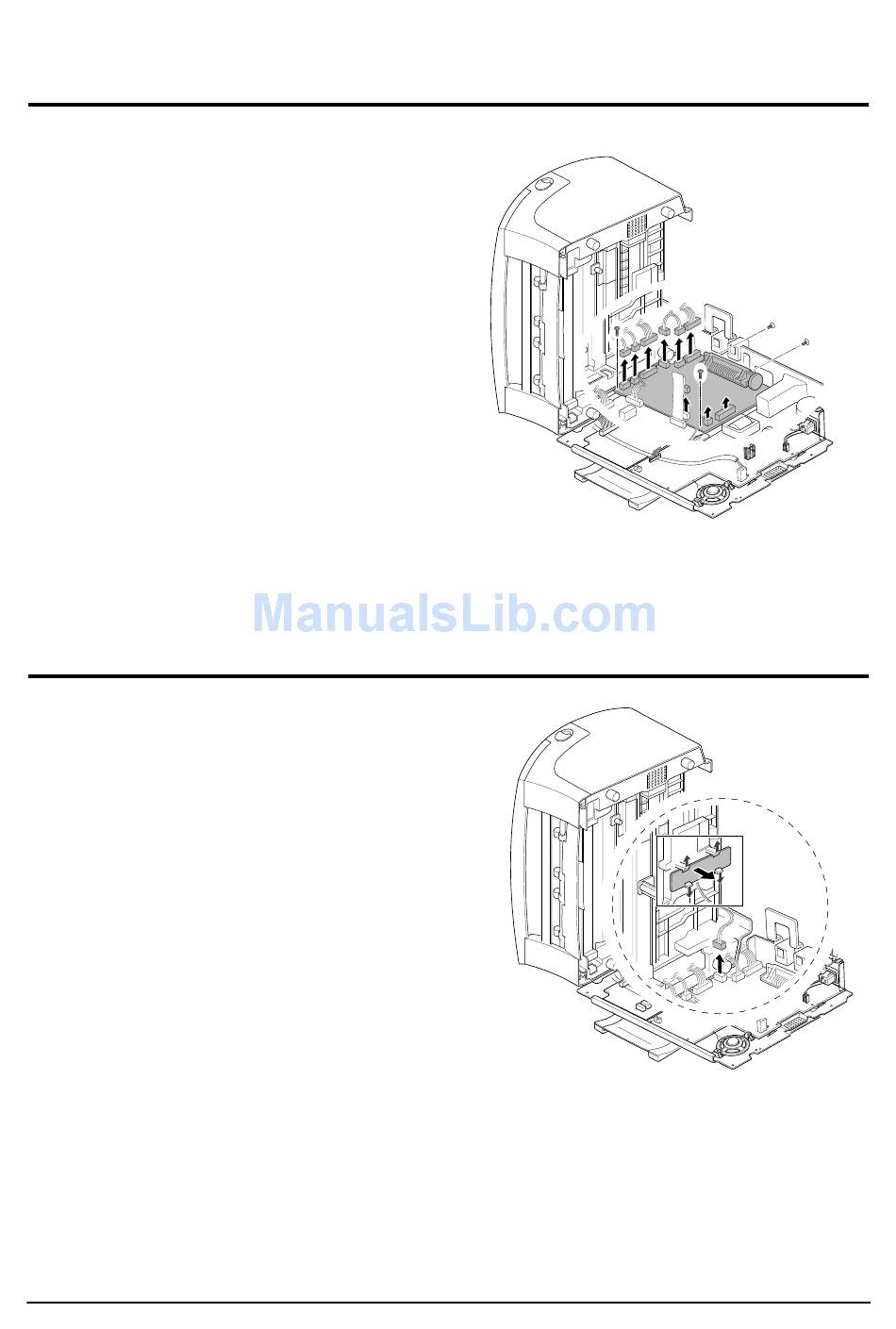

3-38 Main board

1. Before you remove the main board, you should
remove:
– Rear cover (see page 3-9)
– Shield Engine ass'y (see page 3-19)
2. Remove four screws and all the connectors (9) from
the main board, then remove the board.

3-39 Sensor board

1. Before you remove the sensor board, you should
remove:
– Rear cover (see page 3-9)
– Shield Engine ass'y (see page 3-19)
2. Release four snap-fits securing the sensor board and
unplug one connector from the main board, then
remove the sensor board.
3-22
