Installing The Light Fixture - Hunter Ceiling Fans Installation And Operation Manual

8
Blade Iron
Medallion

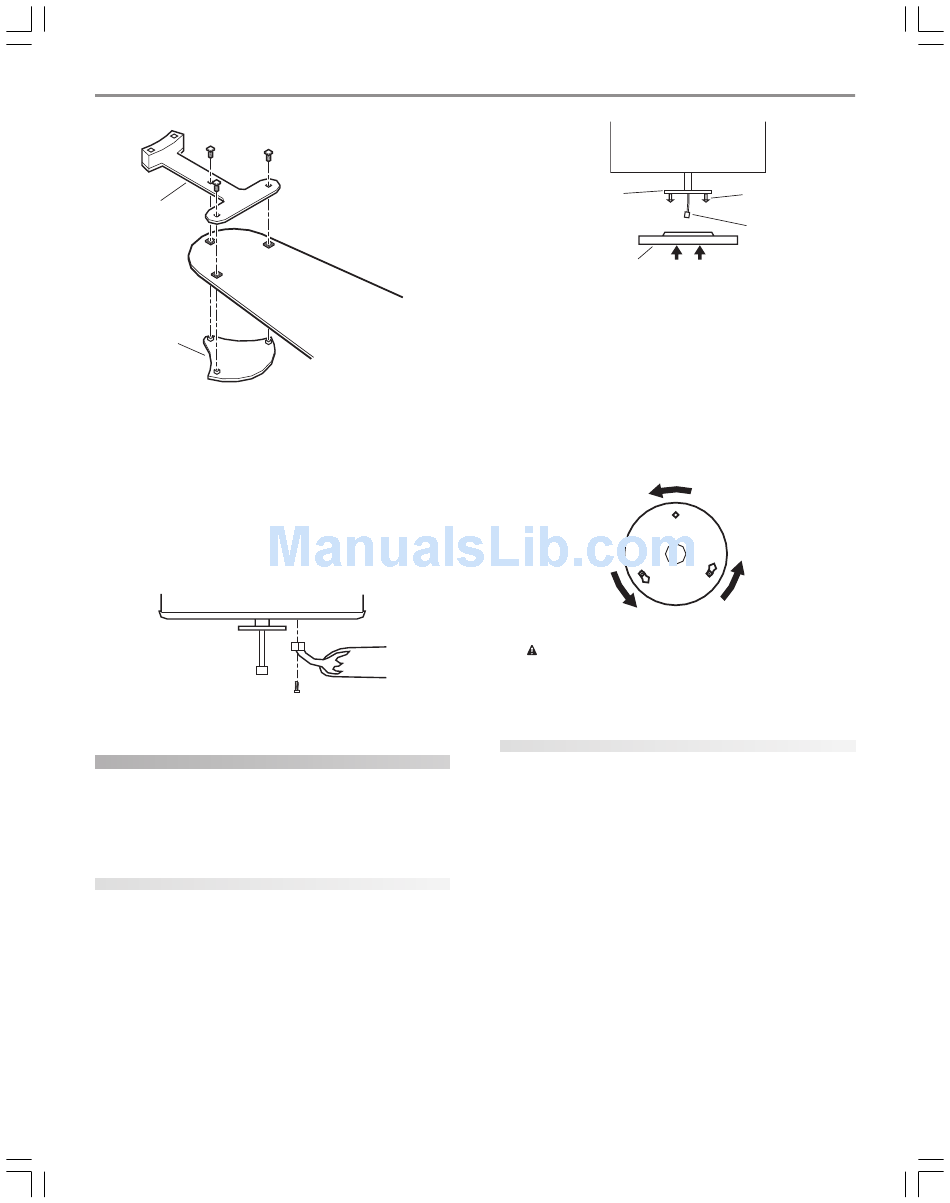

Figure 24 - Attaching the
blade to the blade iron and medallion
If you used grommets, the blades may appear slightly loose
after screws are tightened. This is normal.
3. Remove the blade mounting screws and rubber shipping
bumpers from the motor.
4. For each blade, insert one blade mounting screw through the
blade iron as shown in Figure 25, and attach lightly to the fan.
Insert the second blade mounting screw, then securely tighten
both mounting screws.
Figure 25 - Attaching the blade iron to the fan

installing the light fixture

You can install with or without the light fixture. If you want to
install without the light fixture, skip to the installing without the
light fixture section.
WARNING: Use only the supplied light fixture for this fan
model.
attaching the upper switch housing
1. Partially install two #6-32 x 3/8" housing assembly screws into
the switch housing mounting plate as shown in Figure 26.
2. Feed the upper plug connector through the center opening of
the upper switch housing. See Figure 26.
41849-01 04/11/2005
41849-01_Rev 04.11.05.pmd 8
Switch Housing
Mounting Plate
Upper Switch
Housing
Figure 26 - Attaching the upper
switch housing to the mounting plate
3. Align the keyhole slots in the upper switch housing with the
housing assembly screws installed previously.
4. Turn the upper switch housing counterclockwise until the
housing assembly screws are firmly situated in the narrow end
of the keyhole slots as shown in Figure 27. Install the one re-
maining #6-32 x 3/8" housing assembly screw into the third
hole in the upper switch housing. Tighten all three screws
firmly.
Figure 27 - Mounting the upper switch housing
CAUTION: Make sure the upper switch housing is se-
curely attached to the switch housing mounting plate. Fail-
ure to properly attach and tighten all three housing assem-
bly screws could result in the switch housing and light fix-
ture falling.
attaching the light fixture
Refer to Figure 28.
1. Remove the plug cap from the lower switch housing.
NOTE: Do not discard the plug cap. You will need this if you
remove the light fixture in the future.
2. Remove the dummy terminals from the black/white wire and
white wire in the lower switch housing.
3. Feed the plug connectors and wires from the light fixture
through the hole in the lower switch housing and through the
nut and washer. Refer to Figure 28.
NOTE: Feed in the large (female) plug connector first, then in-
sert the thin (male) plug connector in the hole and through
the nut and washer.
4. Screw the light fixture into the hole on the lower switch hous-
ing. Refer to Figure 28.
5. Screw the nut and washer onto the end of the light fixture
inside the lower switch housing.
6. Attach the black wire from the light fixture to the black/white
wire from the lower switch housing. Attach the white wire from
the light to the white wire from the lower switch housing.
