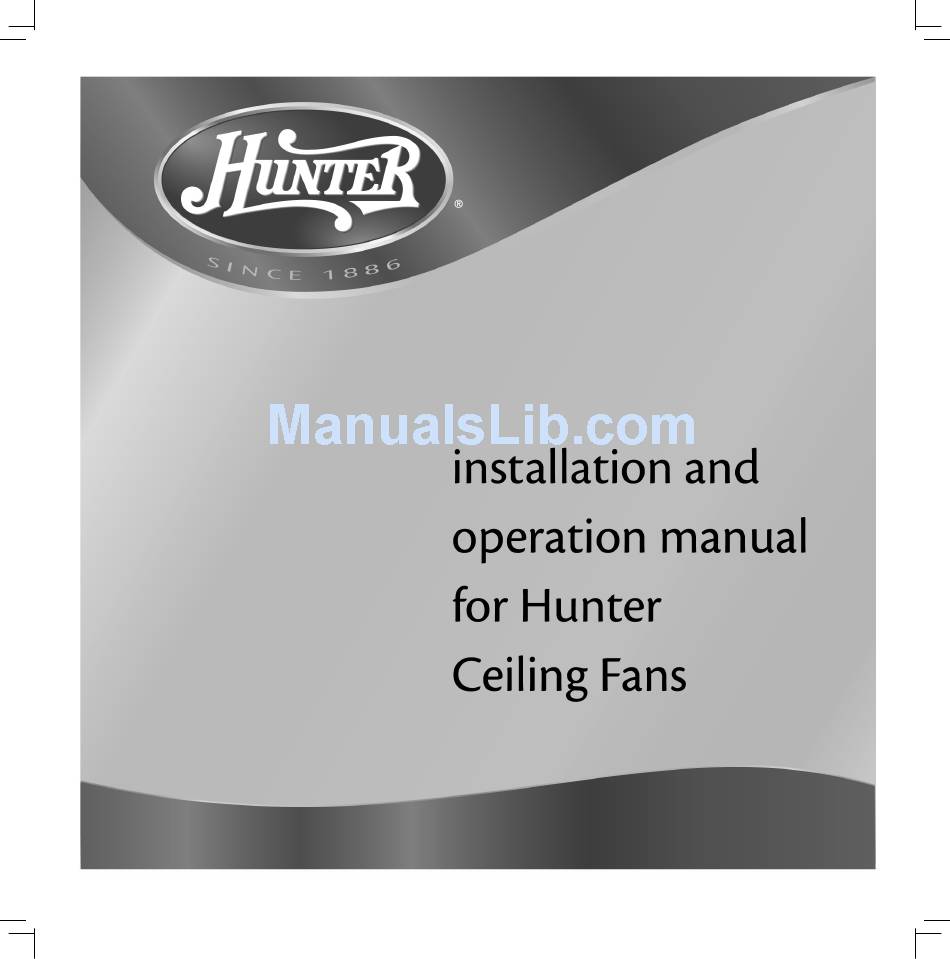

- Page 1 42024-01 • 10/25/05...
-
Page 2: Table Of Contents
7 • Completing Your Installation With • To reduce the risk of fire, electrical shock, or motor damage, do not or Without a Light Fixture....... 11 use a solid-state speed control with this fan. Use only Hunter speed controls. 8 • Operating and Cleaning Your Ceiling Fan ........... - Page 3 Understanding Mounting and Installer’ s Choice® Hunter’s patented 3-position mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Profi le, Standard, or Angle mounting. e steps in this manual include instructions for all three Installer’s Choice mounting methods.
-
Page 4: Getting Ready
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •... -
Page 5: Installing The Hanger Bracket
Do not over tighten. Steps 2-2 – 2-4 Step 2-3 (Angled Ceiling Only) Flat Washer 3” Screw For Angled Ceilings: Be sure to orient the hanger bracket with the large opening towards the ceiling peak. 42024-01 • 10/25/05 Hunter Fan Company... -
Page 6: Assembling And Hanging The Fan
(Rotate the fan until you hear the notch pop into place.) Trim Ring Go to 4 • Wiring the Fan. Adapter Set Screw WARNING: Fan may fall if not assembled as directed in these installation instructions. Indent Steps 3-5 – 3-6 Hunter Fan Company 42024-01 • 10/25/05... - Page 7 Canopy Trim Ring WARNING: Fan may fall if not assembled as directed in these installation instructions. #8-32 x 1/2” Screw (Not Actual Size) Step 3-11 Step 3-10 (Detail) Low Profile Washer 42024-01 • 10/25/05 Hunter Fan Company...
-
Page 8: Wiring The Fan
Wire Nut CAUTION: Be sure no bare wire or wire strands are visible after making connections. 4-6. Push all wires and wire nuts back into the hanger bracket. Hunter Fan Company 42024-01 • 10/25/05... -
Page 9: Installing The Canopy And Canopy Trim Ring
2. Press fi rmly on opposite sides of the ring towards the canopy. e tabs will fl ex out releasing the trim ring from the canopy Step 5-3 Steps 5-4 – 5-5 Canopy Screw 42024-01 • 10/25/05 Hunter Fan Company... -
Page 10: Assembling The Blades
6 • Assembling the Blades Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan). 6-1. Your fan may include blade grommets. If your fan has grommets, Step 6-1 (Detail) insert them by hand into the holes on the blades. -
Page 11: Completing Your Installation With Or Without A Light Fixture
7 • Completing Your Installation With or Without a Light Fixture Your Hunter fan comes with an integrated light fixture assembly and an optional switch housing cap and finial. is feature gives you the option of installing the fan with OR without the included light fixture. e steps below direct you whether or not you are installing a light fixture. - Page 12 7-8. Attach the pullchains to the light switch and fan direction switch on the lower switch housing. 7-9. Attach the shade cups using three thumb screws. 7-10. Install 4 medium base A-19 light bulbs (60 Watt maximum each). umb Screw Steps 7-9 – 7-10 Hunter Fan Company 42024-01 • 10/25/05...
- Page 13 (removed in step 3) onto the pipe to secure the no-light assembly to the switch housing. 5. Complete steps 7-6 – 7-7 on page 11. Finial Lower Switch Housing Pipe No-Light Assembly Step 4 42024-01 • 10/25/05 Hunter Fan Company...
-
Page 14: Operating And Cleaning Your Ceiling Fan
On and Off . downward air fl ow pattern 8-4. Ceiling fans work best by blowing air downward (counterclockwise blade rotation) in warm weather to cool the room with a direct breeze. In winter, having the fan draw air upward (clockwise blade rotation) will distribute the warmer air trapped at the ceiling around the room without causing a draft. -
Page 15: Troubleshooting
3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our Web site at http://www.hunterfan.com. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 42024-01 • 10/25/05 Hunter Fan Company...
