Assembling The Blades - Hunter Ceiling Fans Installation And Operation Manual

For Flush Mounting: The arrows on the low profile washer and
on the ceiling plate should be pointing in the same direction
and should be pointing towards the tab hole on the canopy.
2. Hook the tab hole over the tab on the ceiling plate as shown in
Figure 19.
3. Raise the canopy, be sure the holes in the canopy and the ceil-
ing plate are aligned, and loosely assemble the canopy screws
one at a time. When all three screws are assembled, securely
tighten all three canopy screws. Refer to Figure 19.
Tab Hole
and Tab
Canopy
Screw

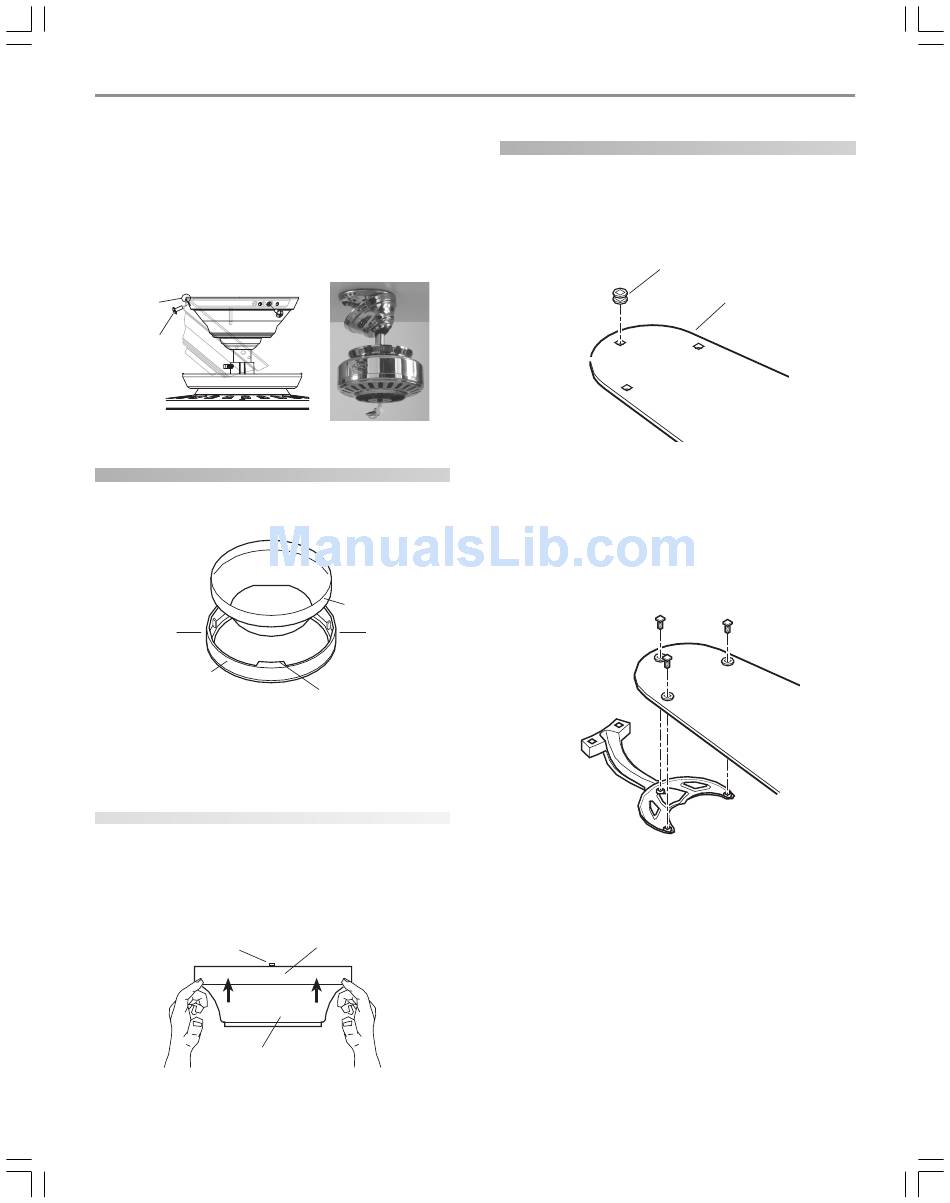

Figure 19 - Installing the canopy
installing the canopy trim ring
1. To easily install the canopy trim ring, locate the two tabs on
the canopy trim ring. See Figure 20.
Press Here when
Removing
Canopy
Trim Ring
Figure 20 - Canopy trim ring
2. Take both hands and push the canopy trim ring up to the top
of the canopy. See Figure 20.
3. The canopy trim ring will snap and lock into place on the
canopy.
removing the canopy trim ring
1. Locate the tab indicators, small bumps on top of tabs. Refer
to Figure 21.
2. To remove the canopy trim ring, press firmly on opposite sides
of the ring towards the canopy as shown in Figure 21. The tabs
will flex out releasing the trim ring from the canopy.
Tab Indicator
Canopy
Figure 21 - Removing the canopy trim ring
© 2005 Hunter Fan Company
41849-01_Rev 04.11.05.pmd 7
Canopy
Press Here when
Removing
Tab
Canopy Trim Ring

assembling the blades

Hunter fans use several styles of fan blade irons (brackets that hold
the blade to the fan).
1. Your fan may include blade grommets. If your fan has grom-
mets, insert them by hand into the holes on the blades as shown
in Figure 22.
Grommet
Figure 22 - Inserting the grommets into the fan blades
2. Attach each blade to blade iron using three blade assembly
screws as shown in Figure 23. Some fans feature a decorative
medallion as well as a blade iron. Insert the assembly screws
into the blade iron, through the blade and into the medallion,
with the blade sandwiched between the blade iron and me-
dallion as shown in Figure 24.
Figure 23 - Attaching the blade to the blade iron
4/9/05, 3:46 PM
7
Fan Blade
41849-01 04/11/2005
