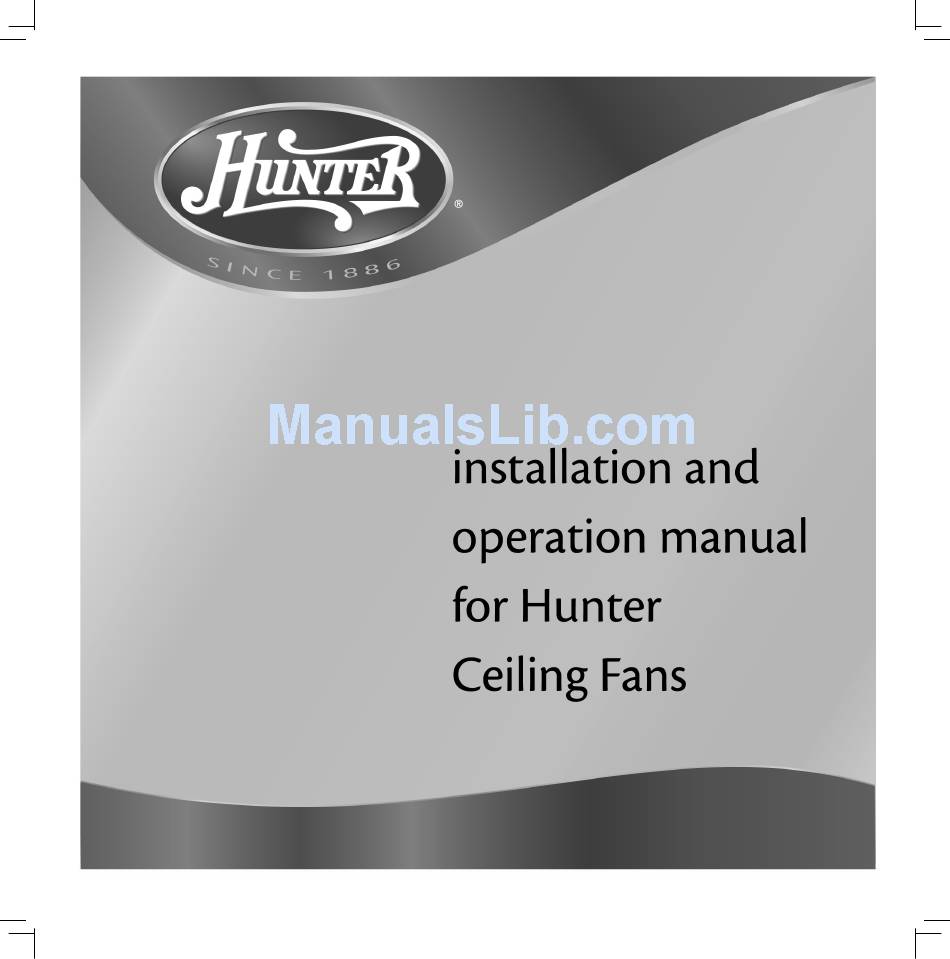

- Page 1 42002-01 • 10/12/05...
-
Page 2: Table Of Contents
Never insert foreign objects between rotating fan blades. • To reduce the risk of fire, electrical shock, or motor damage, do not use a solid-state speed control with this fan. Use only Hunter speed © 2004 Hunter Fan Company controls. - Page 3 Understanding Mounting Hunter’s patented mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of two ways, depending on your preference: Standard or Angle mounting. e steps in this manual include instructions for both mounting methods.
-
Page 4: Getting Ready
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •... -
Page 5: Installing The Hanger Bracket
Do not over tighten. Steps 2-2 – 2-4 Step 2-3 (Angled Ceiling Only) Flat Washer 3” Screw For Angled Ceilings: Be sure to orient the hanger bracket with the large opening towards the ceiling peak. 42002-01 • 10/12/05 Hunter Fan Company... -
Page 6: Assembling And Hanging The Fan
(Rotate the fan until you hear the notch pop into place.) (with Washer) WARNING: Fan may fall if not assembled as directed in these installation instructions. Canopy Trim Ring Adapter Cover Set Screw Indent Steps 3-6 – 3-7 Hunter Fan Company 42002-01 • 10/12/05... -
Page 7: Wiring The Fan
Wire Nut CAUTION: Be sure no bare wire or wire strands are visible after making connections. 4-6. Push all wires and wire nuts back into the hanger bracket. 42002-01 • 10/12/05 Hunter Fan Company... -
Page 8: Installing The Canopy And Canopy Trim Ring
2. Press fi rmly on opposite sides of the ring towards the canopy. e tabs will fl ex out releasing the trim ring from the canopy Step 5-3 Steps 5-4 – 5-5 Canopy Screw Hunter Fan Company 42002-01 • 10/12/05... -
Page 9: Installing The Blades
CAUTION: To reduce the risk of personal injury, care must be taken when installing the fan that the blades are at least 30” from the nearest obstruction (such as cabinet doors). Refer to the Site Prep Sheet for additional information. Step 6-1 Step 6-3 42002-01 • 10/12/05 Hunter Fan Company... -
Page 10: Installing The Glass And Pull Chains
7-6. read the light and fan pull chains through the pull chain clips. 7-7 Re-connect the breakaway connectors and extra chain to the Steps 7-2 – 7-3 light and fan pull chains. Pull Chain Clip Steps 7-5 – 7-6 Pull Chain Step 7-4 Breakaway Connector Hunter Fan Company 42002-01 • 10/12/05... -
Page 11: Operating And Cleaning Your Ceiling Fan
On and Off . downward air fl ow pattern 8-4. Ceiling fans work best by blowing air downward (counterclockwise blade rotation) in warm weather to cool the room with a direct breeze. In winter, having the fan draw air upward (clockwise blade rotation) will distribute the warmer air trapped at the ceiling around the room without causing a draft. -
Page 12: Troubleshooting
3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 Hunter Fan Company 42002-01 • 10/12/05...
