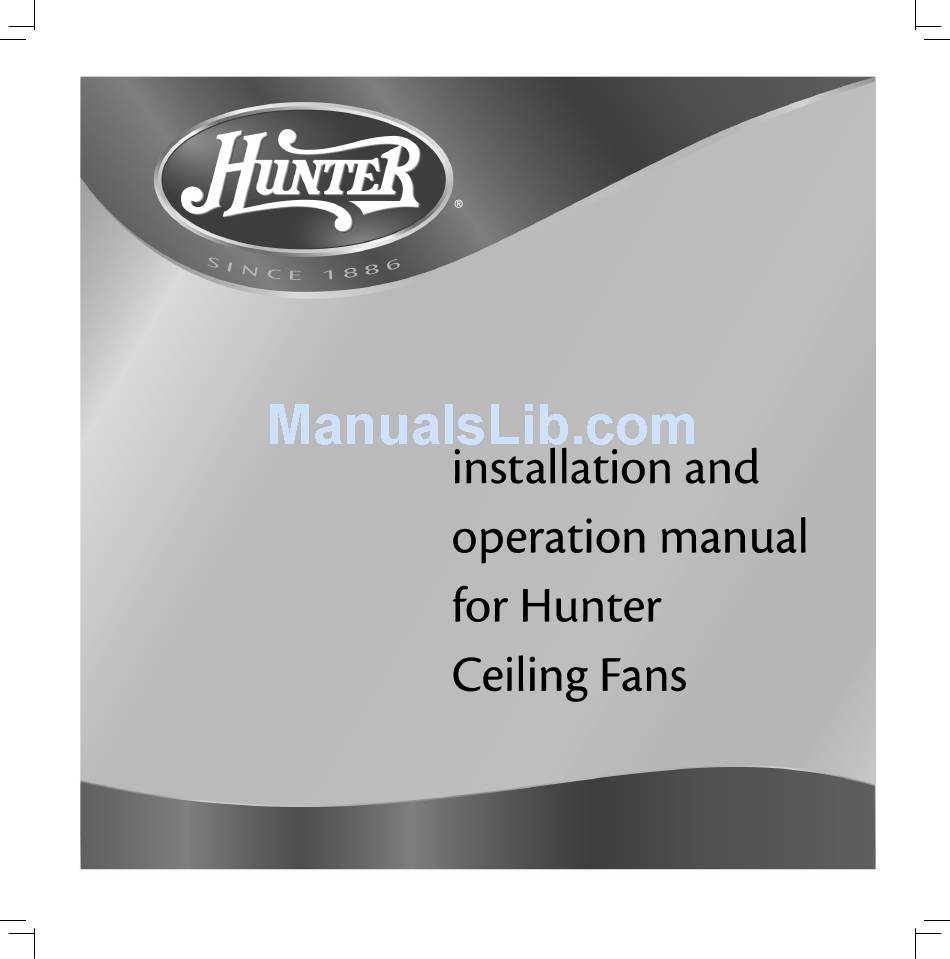

  • Page 1 42500-01 • 11/28/05...

  • Page 2: Table Of Contents

    7 • Installing the Light Kit....... 10 • To reduce the risk of fire, electrical shock, or motor damage, do not use a solid-state speed control with this fan. Use only Hunter speed 8 • Assembling the Remote Control and Mounting the Cradle........
  • Page 3 Understanding Mounting Hunter’s patented mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of two ways, depending on your preference: Standard or Angle mounting.  e steps in this manual include instructions for both mounting methods.

  • Page 4: Getting Ready

    • Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •...

  • Page 5: Installing The Hanger Bracket

    Do not over tighten. Steps 2-2 – 2-4 Step 2-3 (Angled Ceiling Only) Flat Washer 3” Screw For Angled Ceilings: Be sure to orient the hanger bracket with the large opening towards the ceiling peak. 42500-01 • 11/28/05 Hunter Fan Company...

  • Page 6: Assembling And Hanging The Fan

    (Rotate the fan until you hear the notch pop into place.) WARNING: Fan may fall if not assembled as directed in these Upper Glass Bowl installation instructions. Indent Step 3-5 Steps 3-7 – 3-8 Step 3-6 Hunter Fan Company 42500-01 • 11/28/05...

  • Page 7: Wiring The Fan

    • e white wire from the ceiling to the white wire from the fan • e black wire from the ceiling to the black wire from the fan 4-4. Push all wires and wire nuts back into the hanger bracket. Wire Nut 42500-01 • 11/28/05 Hunter Fan Company...

  • Page 8: Installing The Canopy And Canopy Trim Ring

    2. Press fi rmly on opposite sides of the ring towards the canopy.  e tabs will fl ex out releasing the trim ring from the canopy Step 5-3 Steps 5-4 – 5-5 Canopy Screw Hunter Fan Company 42500-01 • 11/28/05...

  • Page 9: Assembling The Blades

    6-4. Attach the blade to the blade iron using the blade assembly screws. 6-5. Repeat for each blade. Steps 6-1 - 6-2 Medallion Assembly Screw Grommet Steps 6-3 - 6-4 Blade Assembly Screw 42500-01 • 11/28/05 Hunter Fan Company...

  • Page 10: Installing The Light Kit

    7-6. Place the socket assembly inside the upper light kit assembly. Align the side screw holes. Attach the fitter to the upper assembly with two #6-32 x 3/8” assembly screws. Housing Plug Assembly Connector Screw Socket Assembly Detail Step 7-6 Hunter Fan Company 42500-01 • 11/28/05...
  • Page 11 7-8. Remove the label from inside the glass bowl. 7-9. Align the glass bowl slots with the tabs on the light kit mounting plate. 7-10. Turn the bowl clockwise until it is locked into place. Step 7-7 Step 7-9 42500-01 • 11/28/05 Hunter Fan Company...

  • Page 12: Assembling The Remote Control And Mounting The Cradle

    CAUTION: e remote control device complies with part 15 of the Tabs FCC rules. Changes or modifications not expressly approved by Hunter Fan Company could void your authority to operate this equipment. Operation is subject to the following two conditions: 1.
  • Page 13  e setting will not change in the event of power failure or if the power to the fan is inadvertently shut off . Example Dipswitch Settings Receiver 1 Receiver 2 ������������ ������������ ������������ ������������ Transmitter 1 Transmitter 2 ������������ ������������ ������������ ������������ 42500-01 • 11/28/05 Hunter Fan Company...

  • Page 14: Operating And Cleaning Your Ceiling Fan

    16 seconds.) Release the Fan Off button at the desired level. 9-3. Ceiling fans work best by blowing air downward (counterclockwise blade rotation) in warm weather to cool the room with a direct Steps 9-1 – 9-2 breeze.

  • Page 15: Troubleshooting

    3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our Web site at http://www.hunterfan.com. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 42500-01 • 11/28/05 Hunter Fan Company...
