Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or office for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.

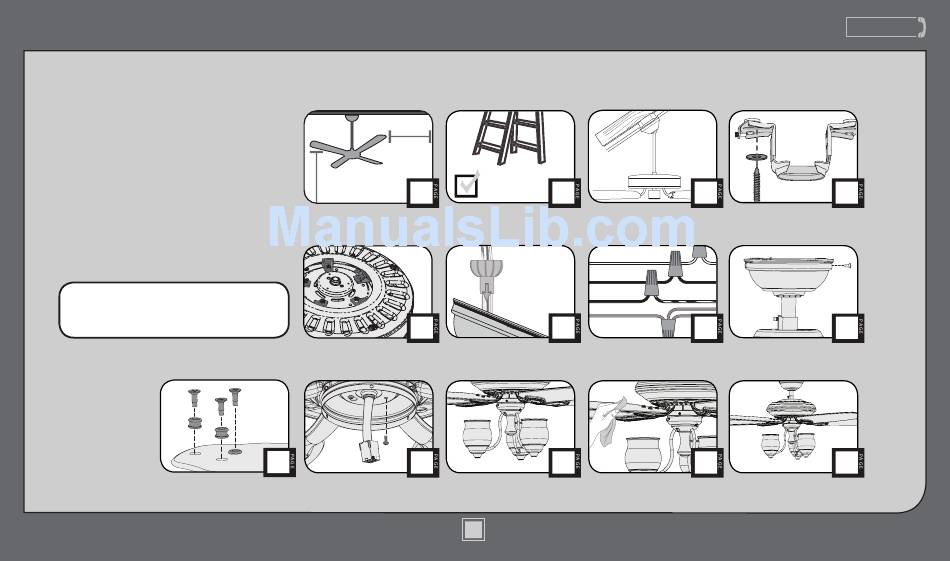

What to Expect with
Your Installation
7 feet
Preparation
Blades
Switch Housing
12
M3512-01 • 01/29/13 • © Hunter Fan Company
Tools Needed
30 inches
2
Ladder
3
Downrod
6
7
Light Kit
13
14
1
www.HunterFan.com
Mounting Options
Ceiling Bracket
4
Wiring
Canopy
10
Maintenance
& Cleaning
Troubleshooting
?
?
16
1.888.830.1326
5
11
?
17
Advertisement
Table of Contents
Related Manuals for Hunter Ceiling fans
Summary of Contents for Hunter Ceiling fans
- Page 1 To register your fan, please visit: www.HunterFan.com/register Save your receipt for proof of purchase. Maintenance Blades Switch Housing Light Kit & Cleaning Troubleshooting M3512-01 • 01/29/13 • © Hunter Fan Company...
-
Page 2: What To Expect With Your Installation
- To reduce the risk of fire, electrical shock, or motor You may need a Standard Downrod damage, use only Hunter Solid State Speed Controls. friend to help you. for ceilings 8-10 feet high w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. -
Page 3: Tools Needed
Tools Needed www.HunterFan.com 1.888.830.1326 Pliers Wire Strippers Screwdrivers Ladder Power Drill 9/64” Drill Bit (optional) (optional) If mounting to a support structure, you will also need these tools. M3512-01 • 01/29/13 • © Hunter Fan Company... -
Page 4: Mounting Options
You need BOTH You need ONLY a Longer a Longer Downrod & Downrod an Angled Mounting Kit *most common M3512-01 • 01/29/13 • © Hunter Fan Company M3512-01 • 01/29/13 • © Hunter Fan Company... -
Page 5: Ceiling Bracket
To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet Refer to warning w.1 on pg. 2 box associated with the wall switch location. M3512-01 • 01/29/13 • © Hunter Fan Company... - Page 6 Save the screws. They will be next couple of steps. needed for blade iron installation. Note: Some fans will have a shipping ring instead of shipping blocks. Please remove the ring and save the screws. M3512-01 • 01/29/13 • © Hunter Fan Company...
- Page 7 Steps 1-5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 10’ or higher Shorter Downrod for fans installed close to ceiling Steps 6-10 to reassemble with new pipe M3512-01 • 01/29/13 • © Hunter Fan Company...
- Page 8 4-5 full turns) until it stops. with pliers. DO NOT can be inserted. from the top of the downrod. HAND TIGHTEN. 8” 3/8” If the setscrew is not tightened securely, the fan may fall. M3512-01 • 01/29/13 • © Hunter Fan Company...
- Page 9 Put the wires and downrod through the canopy. Let the canopy sit loosely CANOPY OR WIRES. Place the downrod on top of the fan. ball into the slot in the ceiling bracket. M3512-01 • 01/29/13 • © Hunter Fan Company...
- Page 10 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M3512-01 • 01/29/13 • © Hunter Fan Company...
- Page 11 Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown. Note: Fan style may vary. M3512-01 • 01/29/13 • © Hunter Fan Company...
- Page 12 Your blades are shielded with Dust Armor® which is a nanotechnology coating that repels dust. For cleaning the fan, use soft brushes or cloths to prevent scratching. Cleaning agents may damage the finishes. M3512-01 • 01/29/13 • © Hunter Fan Company...
-
Page 13: Switch Housing
Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling. M3512-01 • 01/29/13 • © Hunter Fan Company... -
Page 14: Light Kit
Failure to properly secure all three Go to www.HunterFan.com/FAQs and click assembly screws could result in the light fixture falling. “How do I install my fan without the light kit?” M3512-01 • 01/29/13 • © Hunter Fan Company... -
Page 15: Operation Instructions
See next page for fan onto the lampholder. switch housing. operation instructions. Note: Glass shade style and number of lights may vary. M3512-01 • 01/29/13 • © Hunter Fan Company... -
Page 16: Maintenance And Cleaning
Cleaning products The light pull chain controls the may damage the finishes. light fixture: on and off. For questions regarding removing a light kit, call customer service 1-888-830-1326. M3512-01 • 01/29/13 • © Hunter Fan Company... -
Page 17: Troubleshooting
• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10. • Check the plug connection in the switch housing. M3512-01 • 01/29/13 • © Hunter Fan Company...
