INSTALLATION
INSTRUCTIONS
Attachment Kit (sold separately):
P/N 08B06-SEC-210
Right upper player bracket
Left upper player bracket
Lower player bracket
Right player bracket
Left player bracket
Player panel
Bus cable
2 Wire ties
Wire tie with clip
8 Flange nuts, 6 mm
© 2004 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
CASSETTE/MULTIMEDIA
PLAYER ATTACHMENT
Cassette Player (sold separately):
P/N 08A03-5E2-000
Cassette player
4 Washer-screws, 5 x 8 mm
Owner's Manual
Multimedia Player (sold separately):
P/N 08A06-4E2-200
Multimedia player
4 Washer-bolts, 5 x 8 mm
Owner's Manual
BII 28356 (0411)
Application
2005 TSX
2 Latches
Cushion tape
Publications No.
BII 28356
Issue Date
NOV 2004
1 of 7
08B06-SEC-2000-91
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acura 08A03-5E2-000
Summary of Contents for Acura 08A03-5E2-000
-
Page 1: Installation Instructions

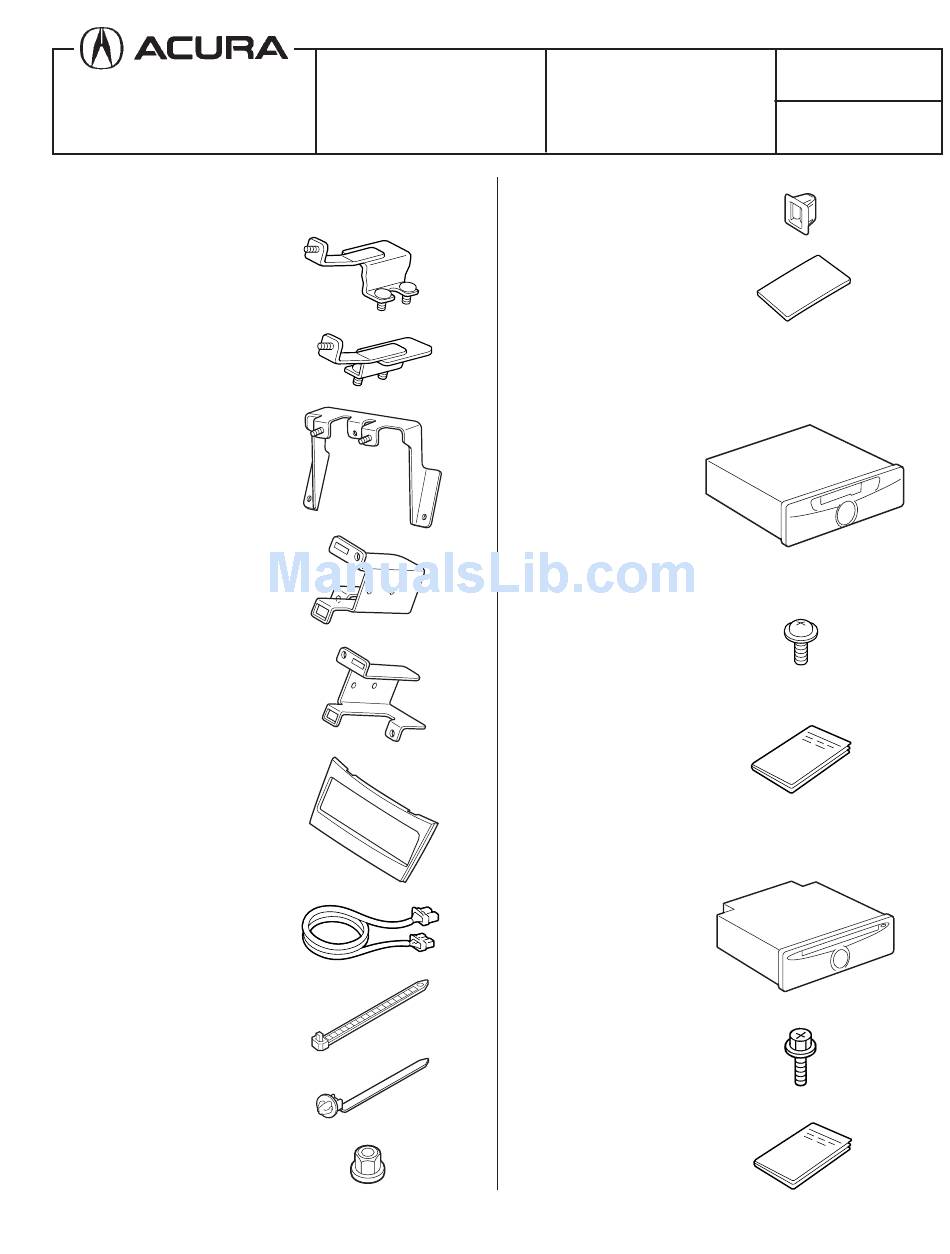

Attachment Kit (sold separately): P/N 08B06-SEC-210 2 Latches Right upper player bracket Cushion tape Left upper player bracket Cassette Player (sold separately): P/N 08A03-5E2-000 Lower player bracket Cassette player Right player bracket 4 Washer-screws, 5 x 8 mm Left player bracket Owner’s Manual... -
