INSTALLATION
INSTRUCTIONS

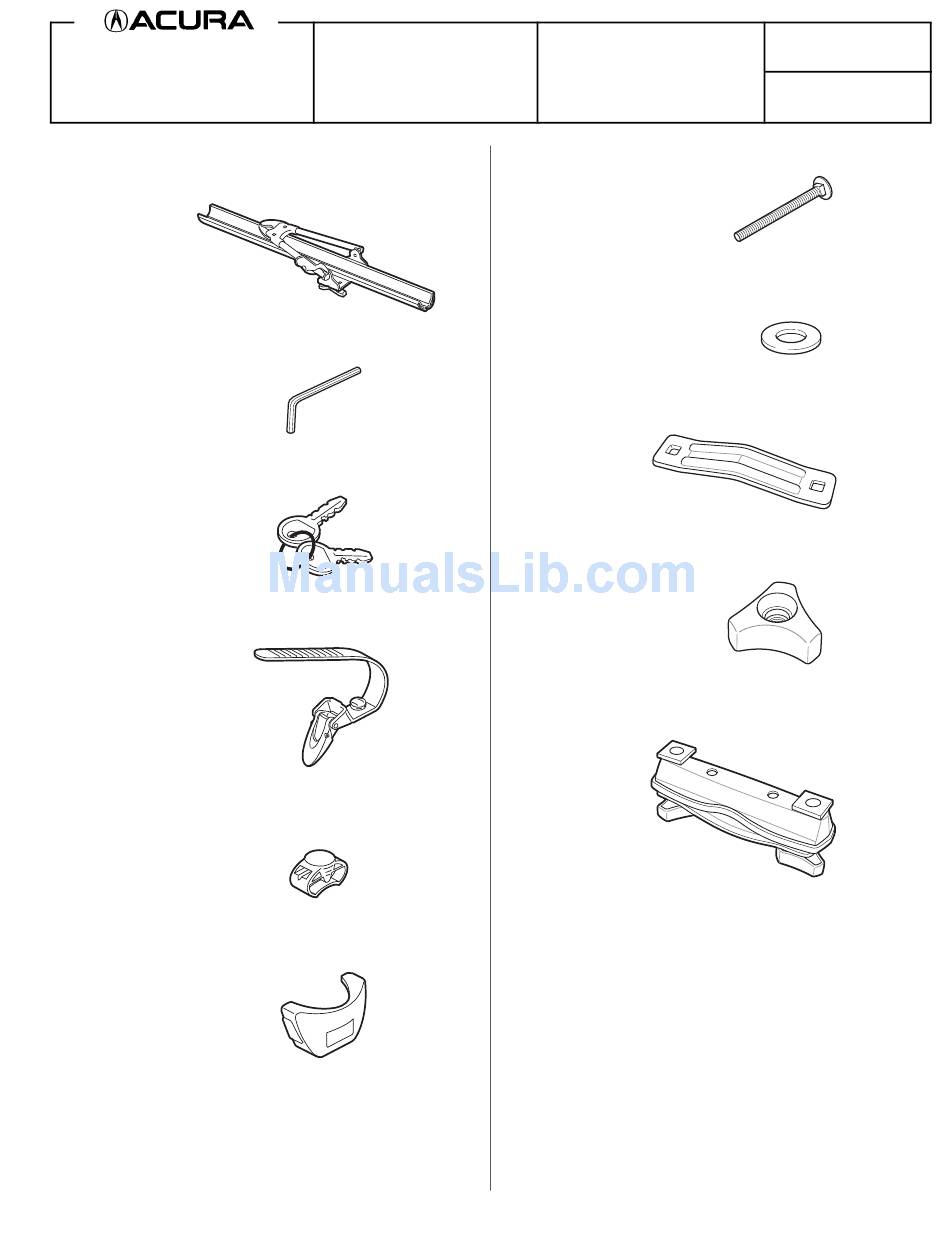

PARTS LIST

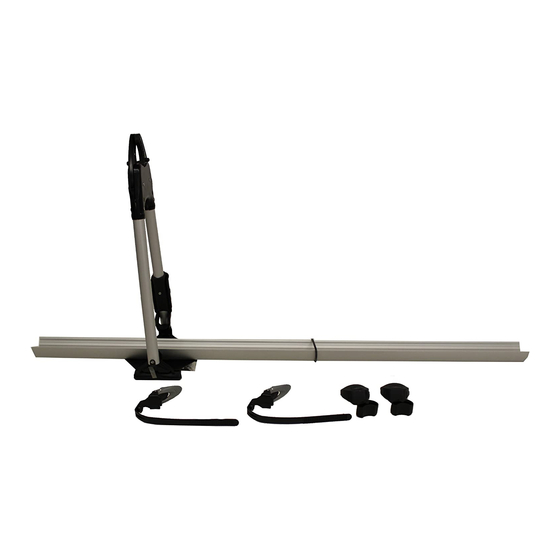

Bicycle attachment
Hex Wrench
2
Keys
2
Wheel straps
2
Tire adapters
2
End caps
© 2010 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
BICYCLE ATTACHMENT
(ROOF MOUNT)
P/N 08L07-E09-200
4
6
2
4
1
BII 42077 (1008)
Application
2011 MDX
Bolts
Washers
Brackets
Knobs
Rear Bracket Assy
Publications No.
BII 42077
Issue Date
AUG 2010
1 of 7
08L07-E09-2000-91
