INSTALLATION
INSTRUCTIONS

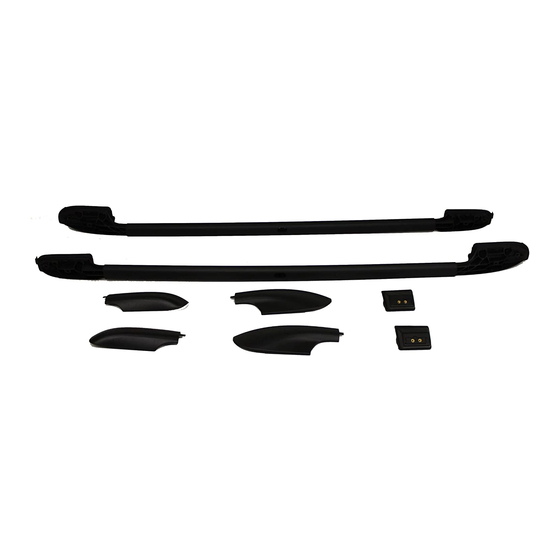

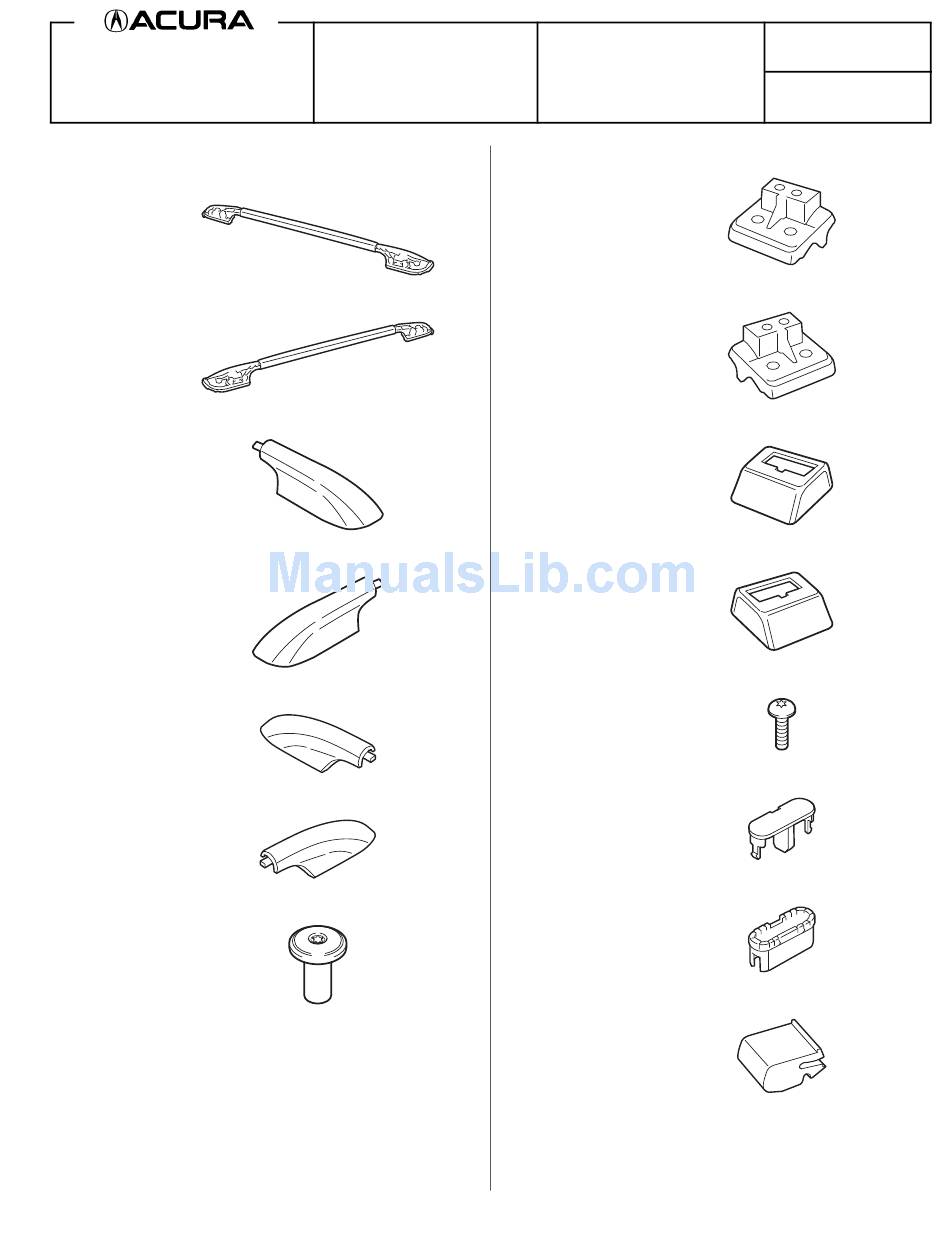

PARTS LIST
Right side rail
Left side rail
Right front rail cover
Left front rail cover
Right rear rail cover
Left rear rail cover
12 TORX nuts
© 2010 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
ROOF RACK (BLACK)
P/N 08L02-STX-210B
Right center stay
Left center stay
Right center stay cover
Left center stay cover
4
2
2
10 Spacers
BII 43678-45285 (1010)
Application
2011 MDX
TORX screws
Rail cover lids
Rail covers
Publications No.
BII 43678-45285
Issue Date
OCT 2010
1 of 6
08L02-STX-2B00-91
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acura 08L02-STX-210B
Summary of Contents for Acura 08L02-STX-210B
- Page 1 Application Publications No. INSTALLATION BII 43678-45285 ROOF RACK (BLACK) 2011 MDX Issue Date INSTRUCTIONS P/N 08L02-STX-210B OCT 2010 PARTS LIST Right center stay Right side rail Left center stay Left side rail Right front rail cover Right center stay cover...
-
Page 2: Tools And Supplies Required
TOOLS AND SUPPLIES REQUIRED Open the tailgate. Using a plastic trim tool, pry up on the left roof molding to release the clip. Eye protection (face shield, safety goggles, etc.) Plastic Trim Tool (T/N SILTRIMTL10) LEFT ROOF T30 TORX bit MOLDING Torque wrench Reciprocating saw (air saw) with 32 tpi blade... - Page 3 Tie a shop towel around the rear edge of the left roof Place an empty 75 mm (3 in.) box under the left roof molding to avoid scratching the roof. molding near the mark. LEFT ROOF LEFT ROOF MOLDING MOLDING SHOP TOWEL MARK...
- Page 4 Turn the left roof molding over, and remove the 12. Reinstall three of the seven clips removed in step 9. seven clips from the left roof molding. If any clip stayed to the roof, remove it. LEFT ROOF MOLDING CLIP SPACER 5 mm (0.2 in.) 3 CUT PIECES OF...
- Page 5 15. Place the left center stay over the two stud bolts at 17. Place the left side rail over the four remaining stud the center, and install two TORX nuts. Torque the bolts. TORX nuts to 12 to 15 N·m (9 to 11 lbf·ft). 2 TORX NUTS Torque to LEFT SIDE RAIL...
- Page 6 19. Install four TORX nuts to attach the front and rear of 22. Insert the tabs of the left front rail cover and left rear the left side rail. Torque the TORX nuts to 12 to 15 rail cover in first, and install the left front rail cover N·m (9 to 11 lbf·ft).
