INSTALLATION
INSTRUCTIONS
PARTS LIST
CD Changer Attachment Kit:
P/N 08B26-S3V-200
Right base bracket
Left base bracket
BUS Cable
4 Flange bolts, 6 x 12 mm
4 Flange nuts
Black cushion tape
Right changer bracket
Left changer bracket
2 Gray cushion tapes
© 2002 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
CD CHANGER
ATTACHMENT KIT
5 Wire ties
(One not used)
4 Washer-screws, 4 x 8 mm
2 Wire clips
CD Changer (sold separately):
P/N 08A26-1B2-101
CD changer
4 Washer-screws, 4 x 6 mm
(Not used)
Adhesive seal sheet
Locking covers
CD magazine
Owner's Manual
Small wire tie
(Not used)
BII 24550 (0209)
Application
2003 MDX
08B26-S3V-2000-91
Publications No.
BII 24550
Issue Date
SEP 2002
1 of 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acura 08B26-S3V-200
Summary of Contents for Acura 08B26-S3V-200
-
Page 1: Installation Instructions

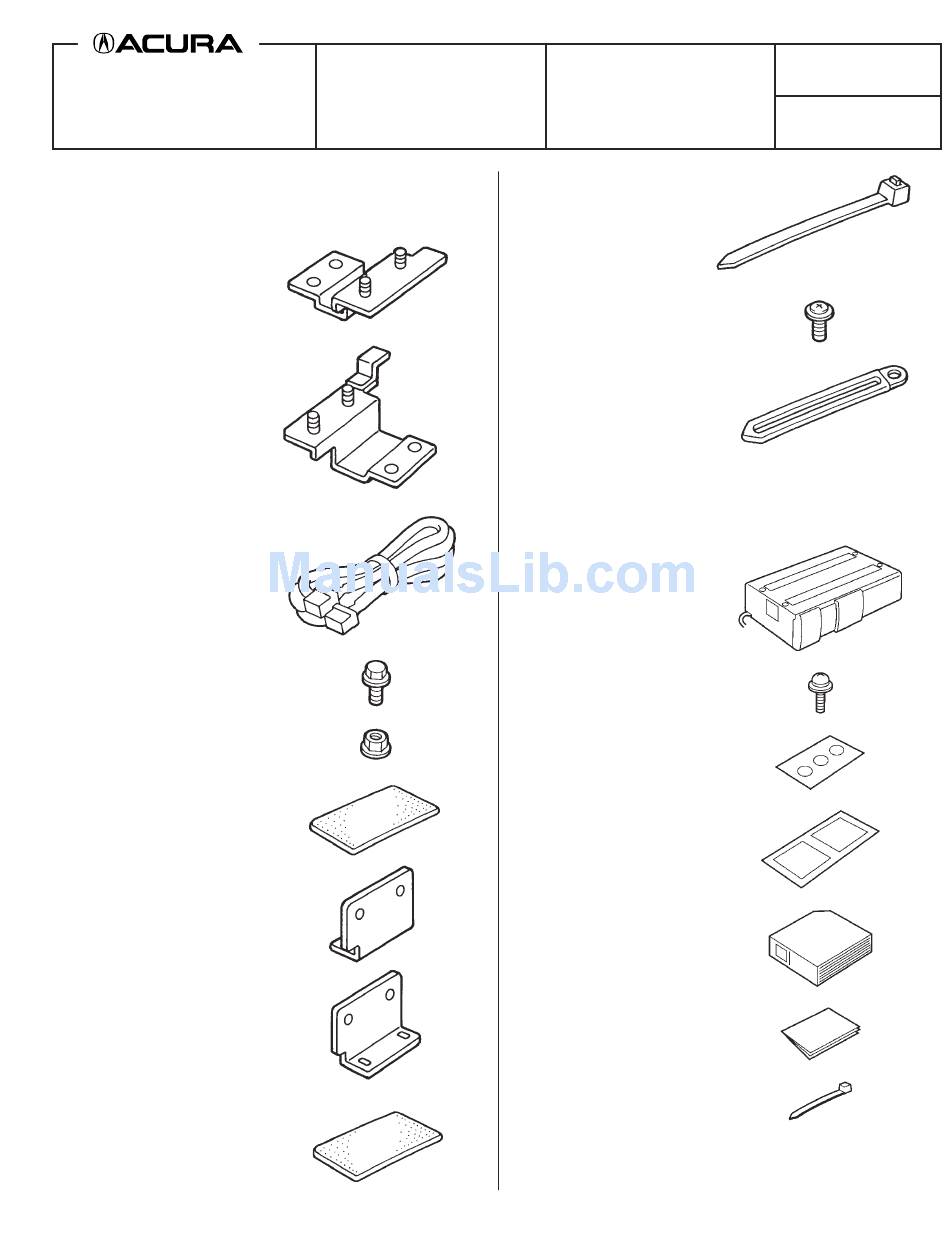

Accessory Application Publications No. BII 24550 INSTALLATION CD CHANGER 2003 MDX ATTACHMENT KIT Issue Date INSTRUCTIONS SEP 2002 PARTS LIST 5 Wire ties CD Changer Attachment Kit: (One not used) P/N 08B26-S3V-200 Right base bracket 4 Washer-screws, 4 x 8 mm 2 Wire clips Left base bracket CD Changer (sold separately):... -
Page 2: Tools And Supplies Required
TOOLS AND SUPPLIES REQUIRED Remove the screws fastening the audio brackets, then pull the audio unit out toward you. Unplug the Flat-tip screwdriver vehicle connectors and antenna lead from the rear Phillips screwdriver of the audio unit. Ratchet 8 mm, 10 mm, and 12 mm Sockets VEHICLE Shop towel HARNESS... - Page 3 Remove the driver’s seat front cover by pulling it Locate the slit in the floor carpet just under the toward you. Take care not to damage the clips. driver’s seat cushion, and pull the BUS cable 14-pin connector out about 300 mm through the slit. DRIVER’S SEAT SLIT in FLOOR...
- Page 4 11. At the radio opening, adjust the BUS cable so it's 14. Install the right and left base brackets into the holes the same length as the vehicle harness. in the driver’s seat risers, and install two 6 x 12 mm flange bolts into each bracket. Do not tighten the bolts yet.
- Page 5 Installing the CD Changer 18. Install the right changer bracket on the CD changer using two 4 x 8 mm washer-screws, and the two 15. Carefully unpack the CD changer. Remove the three wire clips. Install the left changer bracket on the CD shipping clips, and discard the shipping cover.
- Page 6 19. Attach one gray cushion tape to the rear of the CD 24. Connect the BUS cable connector to the CD changer leaving half of the cushion tape extended changer connector. past the CD changer. Using scissors, cut the cushion tape at the end of the CD changer. Fold the BUS CABLE ends down around the edges of the CD changer.
- Page 7 NOTE: Whenever the battery is disconnected, the driver's window AUTO function is disabled. 29. Start the engine. Push down on the driver's window switch until the window is fully open. 30. Pull up on the driver's switch to close the window completely, then hold the switch for 2 seconds.
