INSTALLATION
INSTRUCTIONS

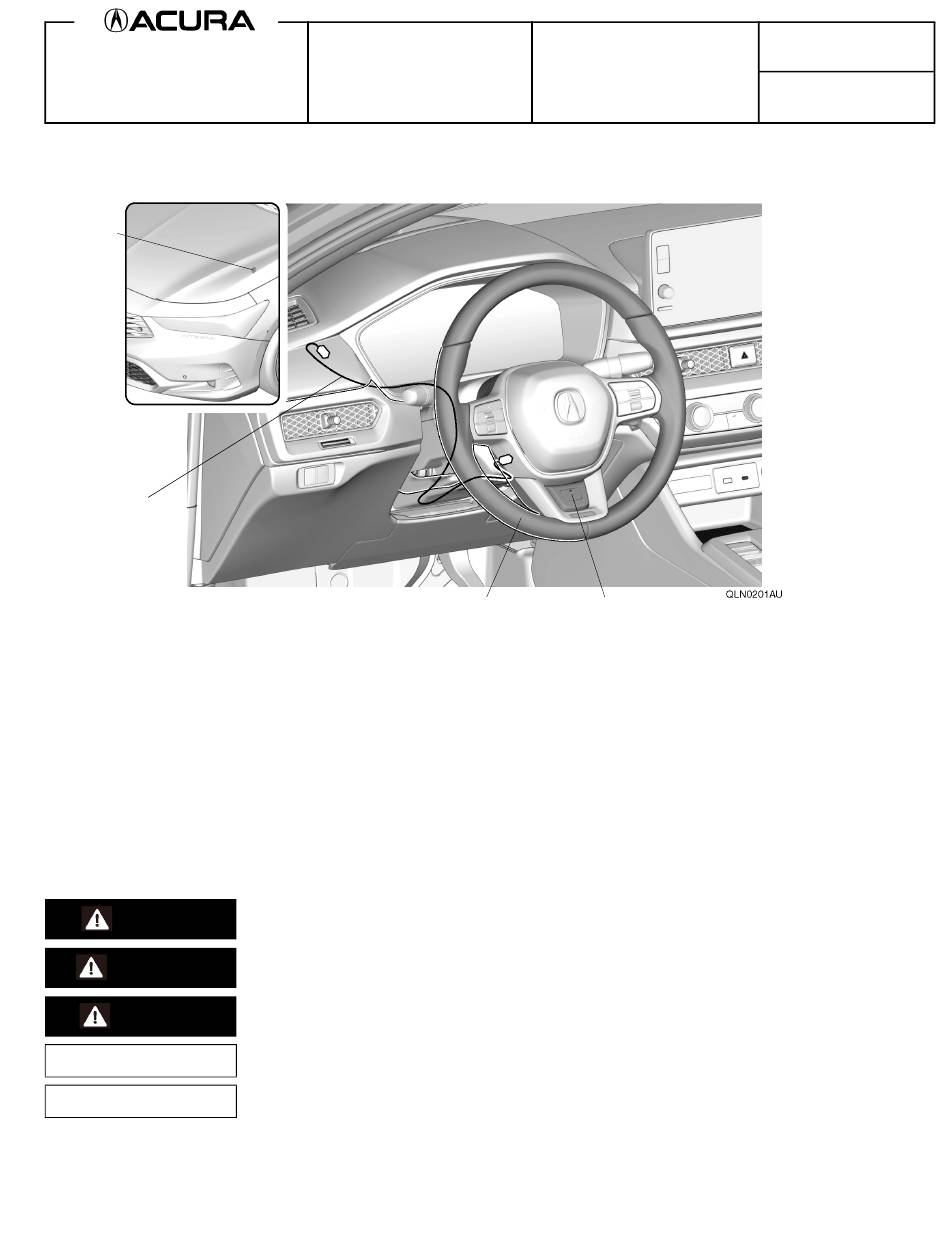

GENERAL VIEW
RELAY
HARNESS A
FOR YOUR SAFETY (Read carefully.)
Warning Symbols
Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service
procedures, we have provided safety messages where appropriate. Of course, it is not practical or possible to warn you
about all the hazards associated with servicing a vehicle - you must use your own good judgment.
You will find important safety messages preceded by one of following symbols:
*All symbols are not used in all installation instructions.
DANGER
WARNING
CAUTION
NOTICE
NOTE
© 2022 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory

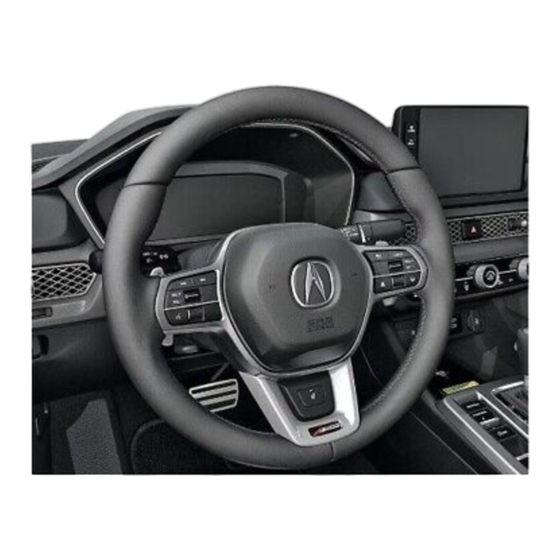

HEATED STEERING WHEEL
You will be killed or seriously hurt if you do not follow the instructions.
You can be killed or seriously hurt if you do not follow the instructions.
You can be hurt if you do not follow the instructions.
Gives advice to prevent damage to the product, vehicle, the environment or other property.
Gives helpful information or instructions to be followed when installing this product.
Application
2023 INTEGRA
MODEL SERIES
STEERING
HSW SWITCH
WHEEL
BII19600-23 (2205)
Publications No.
VERSION 1
Issue Date
MAY 2022
1 of 21
08U97-3S5-2000-90
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acura 08U97-3S5-200
Summary of Contents for Acura 08U97-3S5-200
- Page 1 Accessory Application Publications No. INSTALLATION VERSION 1 2023 INTEGRA HEATED STEERING WHEEL Issue Date INSTRUCTIONS MODEL SERIES MAY 2022 GENERAL VIEW RELAY HARNESS A STEERING HSW SWITCH WHEEL FOR YOUR SAFETY (Read carefully.) Warning Symbols Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service procedures, we have provided safety messages where appropriate.
- Page 2 Indicates a prohibited action. Procedure and Location Icons These icons indicate the work location and the worker’s point of view. *All icons are not used in all installation instructions. The location in the vehicle. The location on the vehicle. (instrument panel.) Wear eye protection.
-
Page 3: Parts List
Always disconnect the negative cable from the battery before beginning work. Safety: Accessory Always use the parts and tools specified in the installation instructions. PARTS LIST Heated Steering Wheel Kit (P/N 08U97-3S5-200) Heated Steering Wheel Kit (P/N 08U97-3S5-200A) *: The part differs depending on the kit. Steering wheel... -
Page 4: Required Tools And Supplies
Unit Cable reel Steering wheel bolt Information Self-tapping screws (9) Relay Wire ties (5) Bolts (2) Accessory User’s Information Manual REQUIRED TOOLS AND SUPPLIES 4 of 21 BII19600-23 (2205) © 2022 American Honda Motor Co., Inc. – All Rights Reserved. -
Page 5: Installation
• i-HDS • 10 mm Socket • Diagonal cutters • Ruler DOOR OPENING The following tools are available through the Acura Tool VEHICLE CONNECTORS SEAL and Equipment Program: • Trim Tool Set (T/N SOJATP2014) • Plastic Trim Tool (T/N SILTRIMTL10) INSTALLATION Disconnect the negative cable from the battery. - Page 6 STEERING WHEEL LOWER COLUMN COVER DRIVER’S MASKING KNEE AIRBAG TAPE INSTRUMENT PANEL Attach the masking tape to protect the vehicle. NOTE Do not remove the masking tape until after the parts are installed. Remove the driver’s knee airbag. NOTICE • Do not drop the removed knee airbag or hit it on an object.
- Page 7 BOLT 2 RETAINING TABS 2 BOLTS (Do not reuse.) CLIP DUCT Fix the tilt lever of the column in the lowest position the telescopic in the position that is pulled most. 2 RETAINING TABS AIRBAG 5 CLIPS VEHICLE CONNECTOR Remove the duct. 7 of 21 ©...
- Page 8 STEERING WHEEL 2 SPRINGS COVER (Push.) PUNCH (diameter of STEERING 5.5 mm) WHEEL OPPOSITE 2 HOLES SIDE VIEW AIRBAG SPRING (Push.) PUNCH HOLE (diameter of 5.5 mm) OPPOSITE SIDE VIEW Release the airbag. Unplug the vehicle connectors. NOTICE • Do not drop the removed airbag or hit it on an object. •...
- Page 9 OPPOSITE SIDE VIEW STEERING VEHICLE 2 LOCKING WHEEL BOLT CONNECTORS TABS (Loosen.) (Pull up.) STEERING WHEEL 2 LOCKING PULLER BOLTS TABS (Pull up.) STEERING WHEEL PULLER AIRBAG STEERING (inside) VEHICLE COLUMN CONNECTOR SHAFT STEERING WHEEL BOLT 11. Isolate the steering wheel and the column shaft. NOTICE If you thread the steering wheel puller bolts into the 10.
- Page 10 12. Confirm that the front wheels are aligned straight- 14. Release the upper column cover. ahead, and use a steering wheel puller to remove the steering wheel. MASKING TAPE 2 RETAINING TABS NOTE Remove the old sealant from the threads in the steering column shaft.
- Page 11 RETAINING TAB 2 SELF-TAPPING SCREWS CABLE REEL VEHICLE CONNECTORS 2 SELF-TAPPING 17. Remove the lower column cover. SCREWS 19. Install the cable reel. CLIP LOWER COLUMN COVER 18. Remove the cable reel. 11 of 21 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. BII19600-23 (2205)
- Page 12 RETAINING TAB HARNESS A HARNESS A VEHICLE 2-PIN 2-PIN CONNECTOR CONNECTOR VEHICLE 4-PIN CONNECTORS VEHICLE 20-PIN CABLE REEL CONNECTOR 2 SELF-TAPPING SCREWS VEHICLE 4-PIN CONNECTOR VEHICLE 20-PIN CONNECTOR OPPOSITE SIDE VIEW GREEN TAPE 21. Route the harness A. 20. Plug the harness A connector. 12 of 21 BII19600-23 (2205) ©...
- Page 13 HARNESS A VEHICLE COVER WIRE TIE SECTION VIEW END OF HARNESS A URETHANE TAPE VEHICLE COVER VEHICLE WIRE TIE SECTION VIEW Line up. VEHICLE HARNESS HARNESS A 22. Secure the harness A. LOCK OF VEHICLE 2 WIRE WIRE TIE HARNESS TIES GREEN 24.
- Page 14 RETAINING STEERING WHEEL CABLE REEL VEHICLE CONNECTORS SWITCH COVER LOWER TRIM HARNESS A 8 RETAINING 2 SCREWS 2-PIN CONNECTOR TABS 25. Install the lower column cover and upper column cover. 26. Remove the switch cover and lower trim. 14 of 21 BII19600-23 (2205) ©...
- Page 15 27. Choose one of these options. • With paddle shift Go to step 28 • Without paddle shift Go to step 29 28. Remove the left and right paddle shift switches. 4 RETAINING RIGHT PADDLE COVER TABS SHIFT SWITCH HARNESS B VEHICLE 4 RETAINING CONNECTOR...
- Page 16 32. Install the unit. • Without paddle shift 33. Plug the steering wheel connector. Go to step 38 37. Install the left and right paddle shift switches. 2 HARNESS B 4-PIN CONNECTORS 4 RETAINING RIGHT PADDLE (if equipped) TABS SHIFT SWITCH HARNESS B 4 RETAINING 2 HARNESS B...
- Page 17 RETAINING SWITCH COVER 4 SELF-TAPPING SCREWS LOWER TRIM 2 HARNESS B 40. Connect the harness B connector. 16-PIN CONNECTORS 2 SCREWS 8 RETAINING TABS 42. Install the switch cover. 43. Remove the locking pin. HARNESS B 5-PIN CONNECTOR 41. Plug the harness B connectors. 17 of 21 ©...
- Page 18 NOTICE • Do not tap on the steering wheel or the steering column shaft when installing the steering wheel. • Engage the steering wheel hole with the pin of the cable reel. CABLE REEL • Take sufficient care that the harness does not get caught.
- Page 19 NOTICE OPPOSITE SIDE VIEW AIRBAG (inside) HARNESS B • That straight-ahead position of the steering rack and 20-PIN steering wheel are the same. CONNECTOR 2 LOCKING • Tighten at the specified torque within 5 minutes. TABS 50. Plug the harness B connectors. CABLE REEL CORD 2-PIN...
- Page 20 57. Install the driver’s knee airbag. NOTE Make sure to use the replacement bolt provided in this COVER kit. 4 RETAINING TABS RELAY BOX 54. Install the relay. DRIVER’S 2 BOLTS RELAY KNEE AIRBAG (supplied) AIRBAG 5.1-11 lb-ft (6.9-14.4 N·m) VEHICLE 2 RETAINING CONNECTOR...
- Page 21 the new steering wheel is not in the straight-ahead position with the front wheels, adjust the front toe as described in the service information. 64. Make sure the accessory operates as described in the Accessory User’s Information Manual. 65. Make sure all accessories and systems operate properly.
