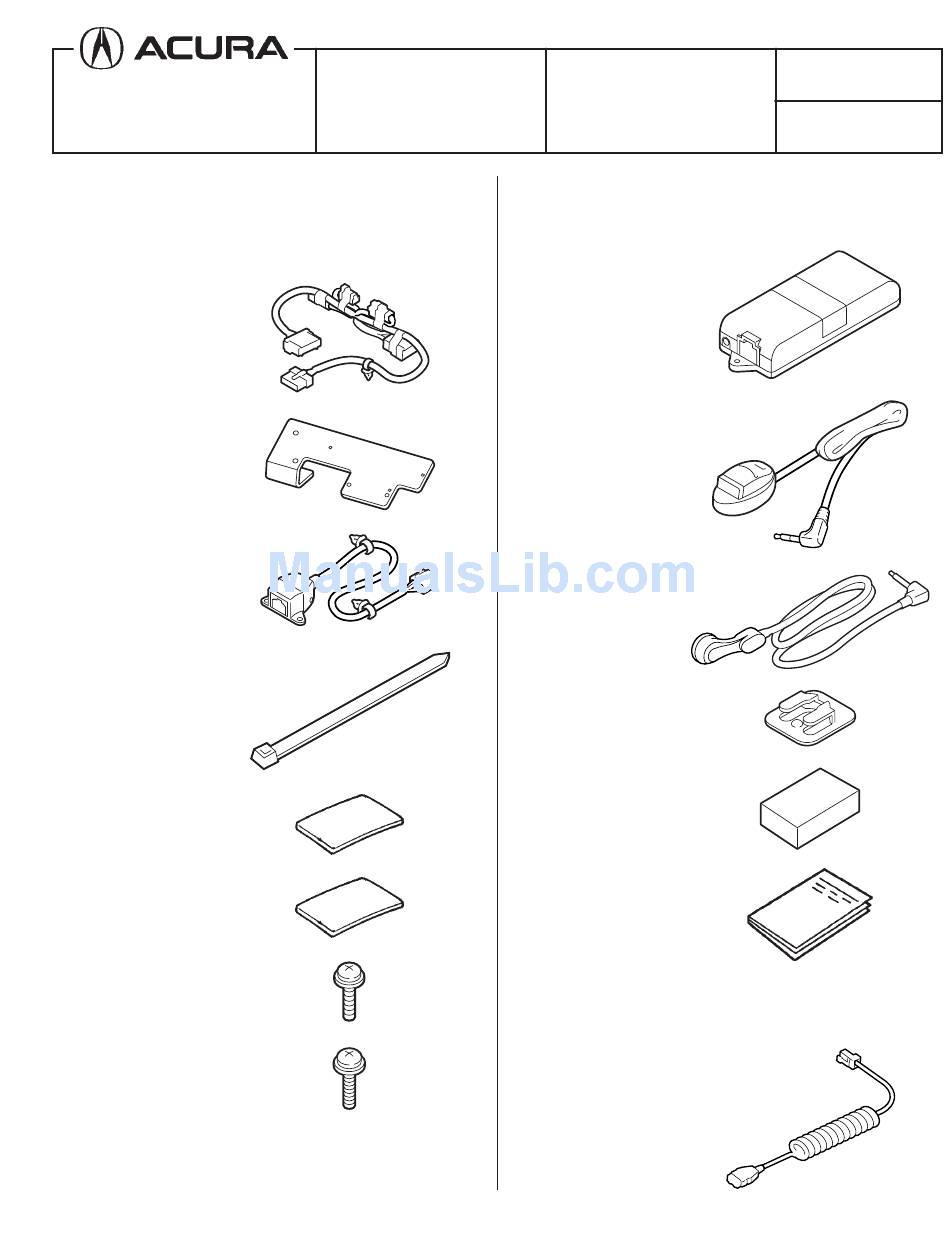

INSTALLATION HANDS-FREE TELEPHONE 2004 RSX INTERFACE Issue Date INSTRUCTIONS OCT 2003 PARTS LIST Hands-Free Telephone Kit (sold separately): P/N 08E00-ED0-200 Harness Kit (sold separately): P/N 08E02-S6M-200 Control unit Telephone harness Microphone Control unit bracket Modular jack Earphone 7 Wire ties...
Page 2
INSTALLATION TOOLS AND SUPPLIES REQUIRED Phillips screwdriver Customer Information: The information in this installation instruction is intended for use only by Stubby Phillips screwdriver skilled technicians who have the proper tools, Flat-tip screwdriver equipment, and training to correctly and safely add Isopropyl alcohol (Isopropyl alcohol, in a 60/40 with equipment to your vehicle.
Page 3
Remove the (two self-tapping screws, one screw, Using a stubby Phillips screwdriver, remove the and the steering column upper cover six retaining two bolts. Pull the center panel out toward you to tabs). release four clips. Unplug the vehicle connectors and antenna lead.
Page 4
Open the glove box. Squeeze the retaining tabs, Installing the Microphone Cord and remove the stoppers. Close the glove box. 10. Using isopropyl alcohol on a shop towel, clean the Remove the glove box by removing the two bolts. bonding surface of the steering column upper cover where the microphone will attach.
Page 5
13. Place the steering column upper cover on the Installing the Telephone Harness steering column, and route the microphone cord 17. Get a telephone harness from the kit. toward the audio unit opening. Secure the microphone cord to the vehicle harness with two •...
Page 6
19. Plug the telephone harness 20-pin connector into Installing the Control Unit the vehicle 20-pin connector. 22. Remove the glove box lamp case (two self- tapping screws and unplug the lamp harness MICROPHONE connector). CORD VEHICLE 20-PIN HARNESS GLOVE BOX LAMP CASE Plug-in TELEPHONE...
Page 7
25. Inside the glove box opening, plug the telephone 28. Install the control unit bracket and glove box lamp harness 14-pin connector and microphone jack case with two self-tapping screws removed in into the control unit. step 22. Align the pin with the hole of the control unit bracket.
Page 8
Installing the Telephone Cable and Earphone Installing the Audio Unit 32. Reinstall the glove box. 37. Plug the telephone harness 20-pin connector into the audio unit (There are two types). Reinstall the 33. Using isopropyl alcohol on a shop towel, clean the audio unit.
