INSTALLATION
INSTRUCTIONS
Put this information in the glove box with the vehicle owner's manual.

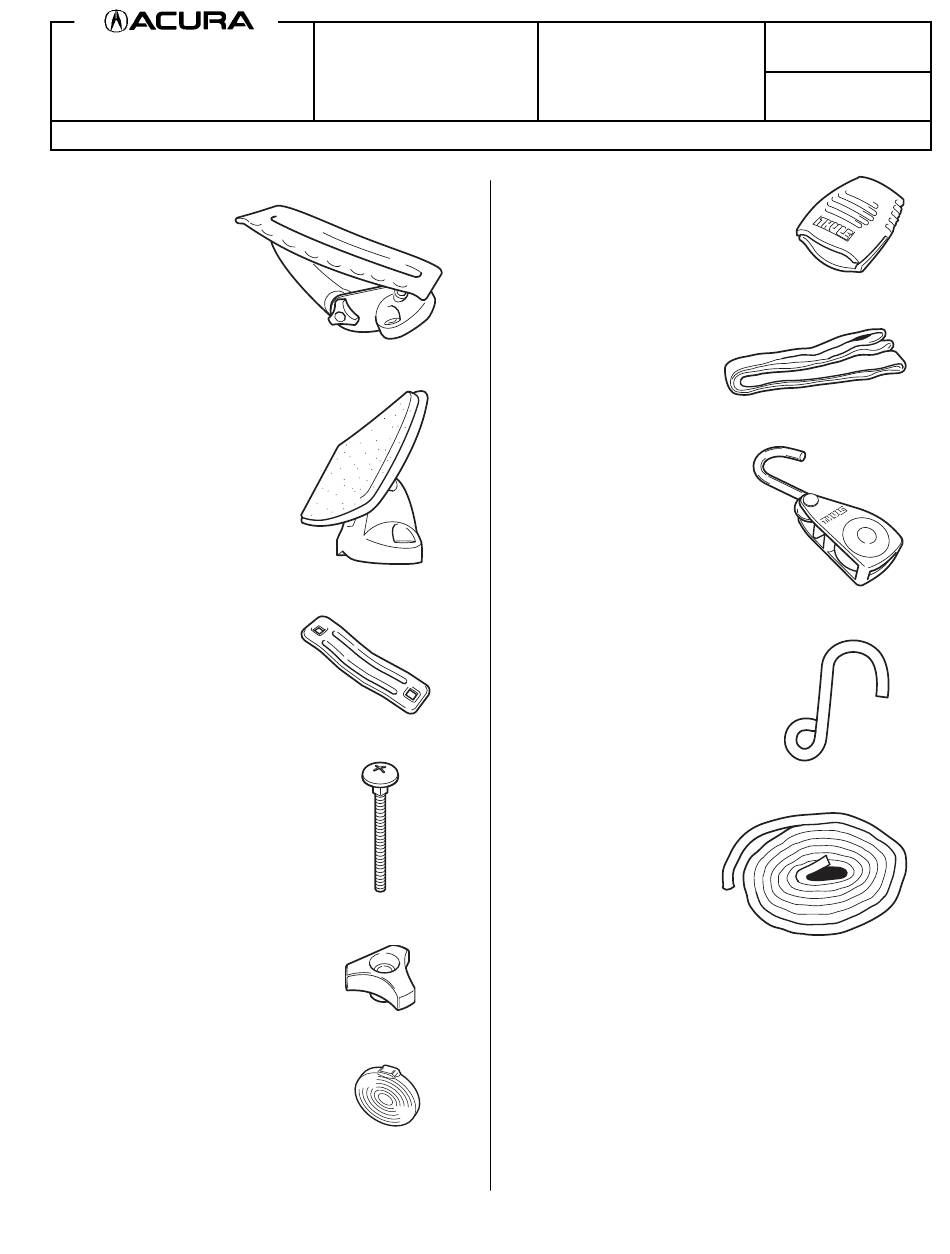

PARTS LIST
2
Saddles
2
Hydro-glide assemblies
4
Brackets
8
Bolts
8
Knobs
2
Straps with buckles
© 2019 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
KAYAK ATTACHMENT
P/N 08L09-TA1-200
2
2
2
2
2
INSTALLATION
NOTE: Be careful not to damage the finished surfaces of
the body when installing the kayak attachment.
BII12440-18 (1906)
Application
2020 MDX
Buckle covers
Attachment Straps
Ratchets (with hooks)
Hooks
Pieces of rope
Publications No.
VERSION 1
Issue Date
JUN 2019
1 of 6
08L09-TAI-1001-91
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acura 08L09-TA1-200
Summary of Contents for Acura 08L09-TA1-200
- Page 1 Accessory Application Publications No. INSTALLATION VERSION 1 KAYAK ATTACHMENT 2020 MDX P/N 08L09-TA1-200 Issue Date INSTRUCTIONS JUN 2019 Put this information in the glove box with the vehicle owner’s manual. PARTS LIST Buckle covers Saddles Attachment Straps Hydro-glide assemblies Ratchets (with hooks)
- Page 2 Position the two saddles on the front crossbar. Position the two hydro-glide assemblies on the rear Loosely install the saddles using one bracket, two crossbar. Loosely install the hydro-glide assemblies bolts and two knobs for each saddle. The distance using one bracket, two bolts, and two knobs for each between the two assemblies should be the same assembly.
- Page 3 Set the front of the kayak on the hydro-glide Adjust the distance between the saddles and the assemblies. Standing behind or alongside the kayak, hydro-glide assemblies to the same width as the lift up the rear of the kayak and push it forward onto kayak, then secure the saddles and the hydro-glide the hydro-glide assemblies and saddles.
- Page 4 Route each strap with buckle through a buckle cover Route the strap under the rear crossbar and around with the ribbed side facing up. the kayak as shown. Slide the buckle cover away from the buckle, route the strap thru the buckle, and tighten the strap.
- Page 5 10. With the hook facing in the direction shown, route the 12. Attach one ratchet hook to the front attachment strap other end of the rope through the bottom of a ratchet. and one ratchet hook to the rear attachment strap. Turn the spool until the rope end comes out of the Attach the front hook to the front bumper beam or to ratchet.
- Page 6 13. To loosen the rope, push up on the ratchet release lever, then pull on the rope. RATCHET RELEASE LEVER Push up. ROPE Pull to loosen the rope. 6 of 6 BII12440-18 (1906) © 2019 American Honda Motor Co., Inc. – All Rights Reserved.
