INSTALLATION
INSTRUCTIONS

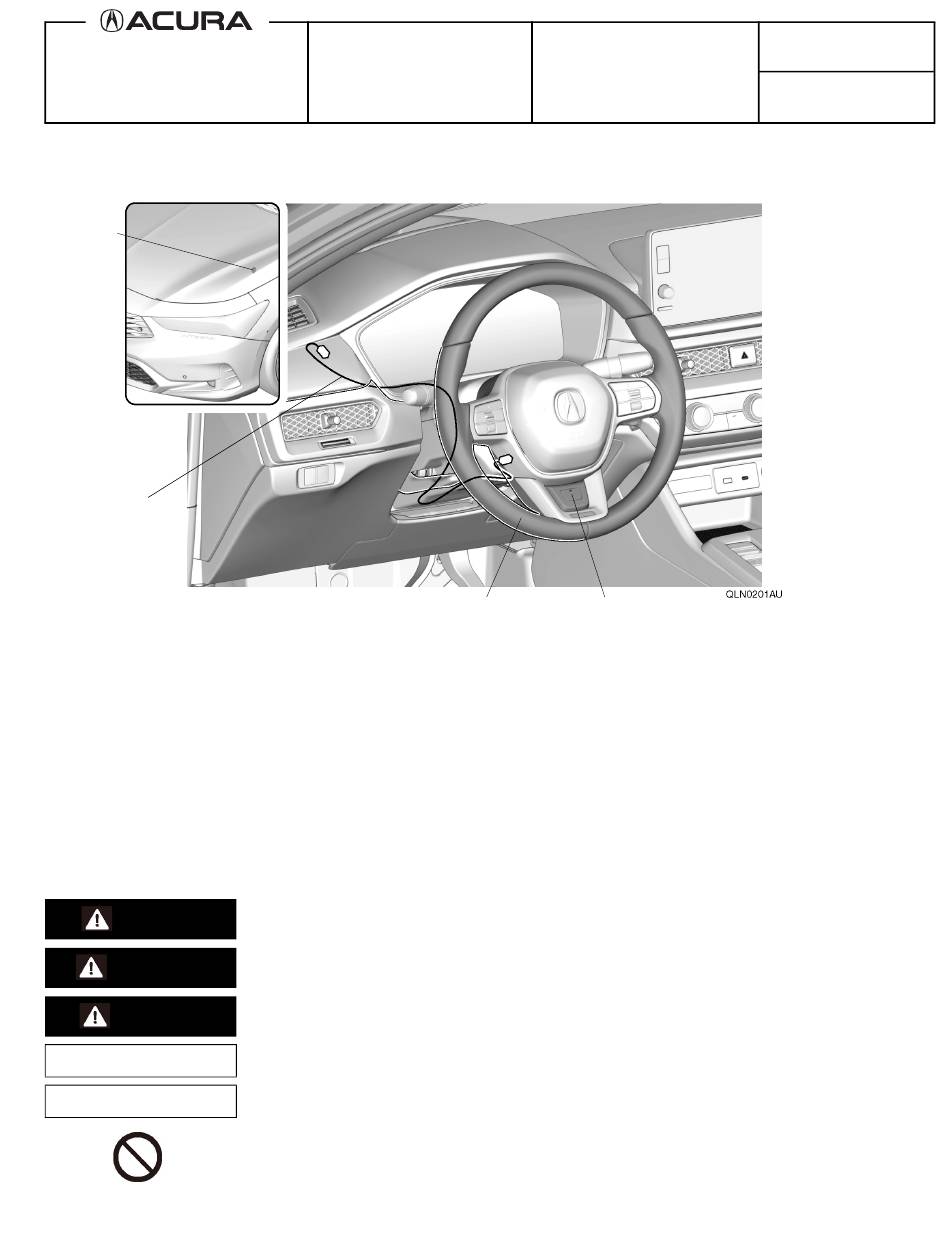

GENERAL VIEW
RELAY
HARNESS A
FOR YOUR SAFETY (Read carefully.)
Warning Symbols
Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service
procedures, we have provided safety messages where appropriate. Of course, it is not practical or possible to warn you
about all the hazards associated with servicing a vehicle - you must use your own good judgment.
You will find important safety messages preceded by one of the following symbols:
*All symbols are not used in all installation instructions.
DANGER
WARNING
CAUTION
NOTICE
NOTE
© 2023 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
HEATED STEERING WHEEL
You will be killed or seriously hurt if you do not follow the instructions.
You can be killed or seriously hurt if you do not follow the instructions.
You can be hurt if you do not follow the instructions.
Gives advice to prevent damage to the product, vehicle, the environment or other property.
Gives helpful information or instructions to be followed when installing this product.
Indicates a prohibited action.
Application
2024 INTEGRA
MODEL SERIES
STEERING
HSW SWITCH
WHEEL
BII19600-33
Publications No.
VERSION 1
Issue Date
JUN 2023
1 of 19
08U97-3S5-2002-90
Advertisement
Table of Contents
Related Manuals for Acura 08U97-3S5-201
Summary of Contents for Acura 08U97-3S5-201
- Page 1 Accessory Application Publications No. INSTALLATION VERSION 1 2024 INTEGRA HEATED STEERING WHEEL Issue Date INSTRUCTIONS MODEL SERIES JUN 2023 GENERAL VIEW RELAY HARNESS A STEERING HSW SWITCH WHEEL FOR YOUR SAFETY (Read carefully.) Warning Symbols Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service procedures, we have provided safety messages where appropriate.
- Page 2 Procedure and Location Icons These icons indicate the work location and the worker’s point of view. *All icons are not used in all installation instructions. The location in the vehicle. The location on the vehicle. (Instrument panel.) Wear eye protection. Wear heavy gloves.
-
Page 3: Safety: General
Always disconnect the negative cable from the battery before beginning work. Safety: Accessory Always use the parts and tools specified in the installation instructions. PARTS LIST Heated Steering Wheel Kit (P/N 08U97-3S5-201) Heated Steering Wheel Kit (P/N 08U97-3S5-201A) *: The part differs depending on the kit. Steering wheel... -
Page 4: Required Tools And Supplies
• Torque wrench • i-HDS • 10 mm Socket • Diagonal cutters • Ruler The following tools are available through the Acura Tool and Equipment Program: • Trim Tool Set (T/N SOJATP2014) • Plastic Trim Tool (T/N SILTRIMTL10) 4 of 19 BII19600-33 ©... -
Page 5: Installation
INSTALLATION Fix the tilt lever of the column in the most high position. Disconnect the negative cable from the battery. NOTE Wait at least 3 minutes before you start to install the STEERING heated steering wheel. WHEEL LOWER COLUMN COVER Lower. - Page 6 Remove the driver’s knee airbag. Remove the duct. NOTICE BOLT • Do not drop the removed knee airbag or hit it on an object. • Place the removed knee airbag on a safe place with the pad surface (top) facing upward. NOTE Release the clip of the dotted line part in order from the top.
- Page 7 Adjust the tilt of the steering column to its lowest Unplug the vehicle connectors. position. Then bring the telescope position to all the NOTICE way out. • Do not drop the removed airbag or hit it on an object. • Place the removed airbag on a safe place with the STEERING WHEEL 2 SPRINGS COVER...
- Page 8 10. Loosen the steering wheel bolt. 13. Attach the masking tape to protect the vehicle. NOTICE STEERING WHEEL BOLT Do not remove the masking tape until after the parts (Loosen.) are installed. STEERING WHEEL PULLER BOLTS MASKING TAPE UPPER COLUMN COVER STEERING WHEEL PULLER STEERING...
- Page 9 14. Release the upper column cover. 17. Remove the lower column cover. MASKING TAPE 2 RETAINING TABS CLIP LOWER COLUMN COVER 18. Remove the cable reel. RETAINING TAB PLASTIC TRIM TOOL RETAINING TAB RETAINING 15. Secure the upper column cover. 16.
- Page 10 19. Install the cable reel. 20. Plug-in the harness A connector. RETAINING TAB HARNESS A HARNESS A VEHICLE 2-PIN 2-PIN CONNECTOR CONNECTOR VEHICLE 4-PIN CONNECTORS VEHICLE 20-PIN CABLE REEL CONNECTOR 2 SELF-TAPPING SCREWS VEHICLE 4-PIN CONNECTOR VEHICLE 20-PIN CONNECTOR OPPOSITE SIDE VIEW GREEN TAPE 10 of 19 BII19600-33...
- Page 11 21. Route the harness A. 23. Secure the harness A. HARNESS A VEHICLE COVER WIRE TIE SECTION VIEW END OF HARNESS A URETHANE TAPE VEHICLE COVER VEHICLE WIRE TIE SECTION VIEW Line up. VEHICLE HARNESS HARNESS A 22. Secure the harness A. LOCK OF VEHICLE 2 WIRE...
- Page 12 26. Remove the switch cover and lower trim. 29. Remove the screw. RETAINING STEERING WHEEL VEHICLE CONNECTORS SWITCH COVER SCREW LOWER 30. Install the harness B. TRIM 8 RETAINING 2 PINS 2 SCREWS TABS 27. Choose one of these options. •...
- Page 13 31. Plug-in the harness B connector. 33. Plug-in the steering wheel connector. 2 HARNESS B 4-PIN 2 HARNESS B CONNECTORS 16-PIN (if equipped) CONNECTORS HARNESS B RETAINING RETAINING 14-PIN CONNECTOR (if equipped) (if equipped) UNIT 2 SELF-TAPPING SCREWS HARNESS B 4-PIN CONNECTOR 32.
- Page 14 36. Choose one of these options. 39. Install the switch trim. • With paddle shift Go to step 37 • Without paddle shift Go to step 38 37. Install the left and right paddle shift switches. 4 SELF-TAPPING 4 RETAINING RIGHT PADDLE SCREWS TABS...
- Page 15 41. Plug-in the harness B connectors. 43. Remove the locking pin. RETAINING CABLE REEL SWITCH COVER LOCKING PIN 2 HARNESS B 16-PIN CONNECTORS 2 SCREWS 8 RETAINING TABS 42. Install the switch cover. LOCKING PIN (Break.) ARROW MARK Rotate clockwise Rotate counterclockwise until it stops.
- Page 16 48. Install the steering wheel. 49. Install the steering wheel bolt. NOTICE NOTICE • Do not tap on the steering wheel or the steering • That straight-ahead position of the steering rack and column shaft when installing the steering wheel. steering wheel are the same.
- Page 17 51. Plug-in the cable reel cord connectors. 53. Remove the cover. OPPOSITE SIDE VIEW AIRBAG (inside) HARNESS B 1-PIN CONNECTOR 2 LOCKING COVER 4 RETAINING TABS TABS CABLE REEL CORD 2-PIN CONNECTOR (black) CABLE REEL CORD 2 LOCKING TABS 2-PIN CONNECTOR (light gray) RELAY BOX Equal...
- Page 18 <Installing the Driver’s Knee Airbag> 54. Install the relay. 57. Install the driver’s knee airbag. NOTE NOTE Make sure to secure the relay in the correct position. Make sure to use the replacement bolt provided in this kit. RELAY Install here. Install here.
- Page 19 59. Connect the negative cable to the battery. 60. Turn the ENGINE START/STOP button to ON; the SRS indicator should come on for about 6 seconds and then go off. 61. Make sure the horn and steering wheel switches work properly. 62.
