INSTALLATION
INSTRUCTIONS

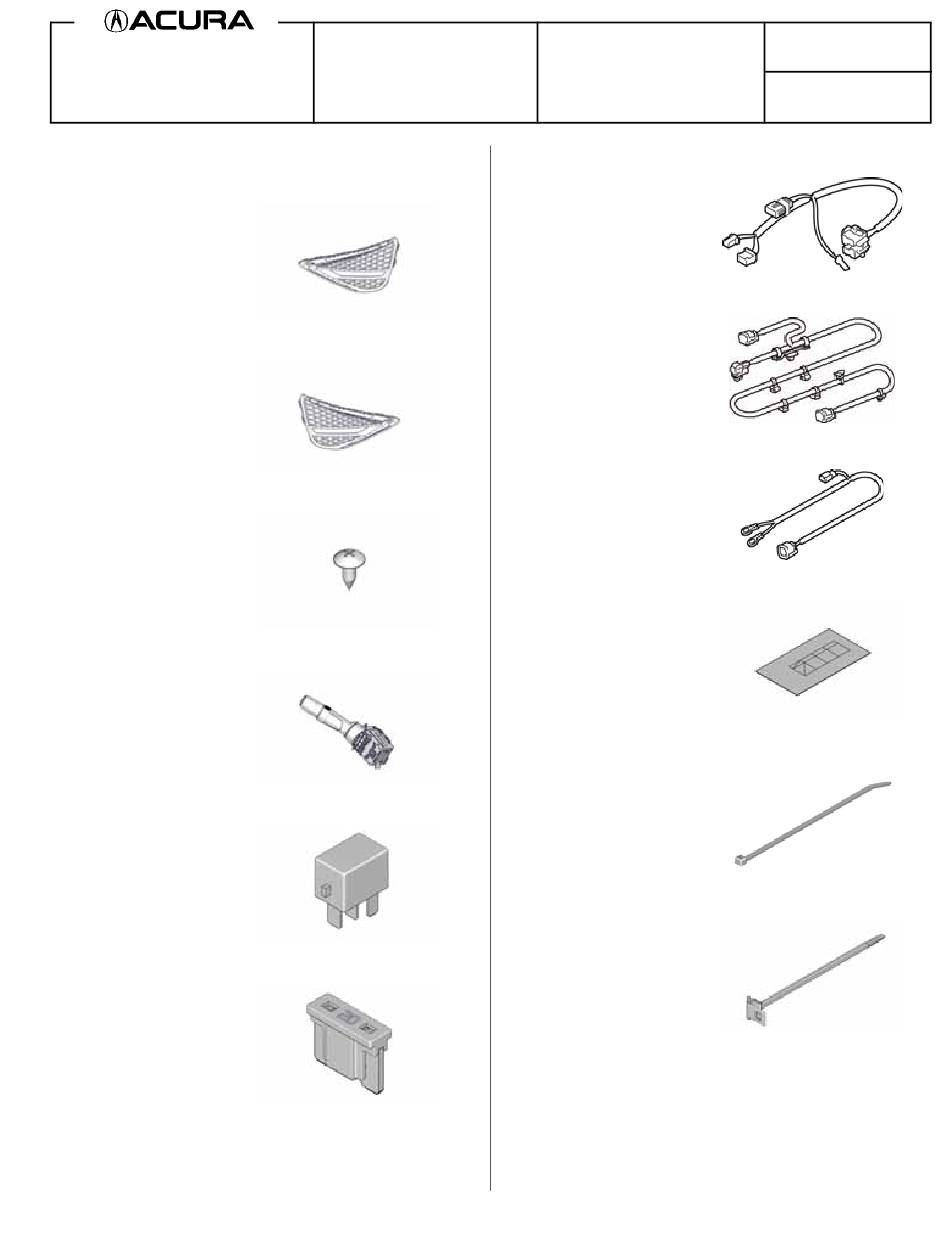

PARTS LIST
Left fog light cover
Right fog light cover
6
Self-tapping screws
Combination light switch
Relay
20A Fuse
© 2019 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
LED FOG LIGHTS
P/N 08V31-TX6-2B0
Fog light relay harness
Fog light harness
Fog light subharness
Fuse label
7
Wire tie with holder
BII13063-18 (1909)
Application
2020 ILX
Wire ties
Publications No.
VERSION 1
Issue Date
SEP 2019
1 of 16
08V31-TX6-2B00-90
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acura 08V31-TX6-2B0
Summary of Contents for Acura 08V31-TX6-2B0
- Page 1 Application Publications No. INSTALLATION VERSION 1 LED FOG LIGHTS 2020 ILX Issue Date INSTRUCTIONS P/N 08V31-TX6-2B0 SEP 2019 PARTS LIST Fog light relay harness Left fog light cover Fog light harness Right fog light cover Fog light subharness Self-tapping screws...
-
Page 2: Tools And Supplies Required
Remove one self-tapping screw. Using the key, Shop towel unlock the trunk lock. Blanket The following tools are available through the Acura Tool and Equipment Program. On the iN, click on Service > SELF-TAPPING SCREW Service Bay > Tool and Equipment Program, then enter the number under “Search.”... - Page 3 Remove the driver’s front door sill trim. Remove the driver’s dashboard lower cover, and unplug the vehicle connectors. DRIVER’S FRONT DOOR SILL TRIM VEHICLE 6 CLIPS CONNECTORS FRONT 2 HOOKS 4 RETAINING TABS DRIVER’S Pull away the door opening seal, and remove the DASHBOARD driver’s kick panel.
- Page 4 Release the column band. 2 RETAINING TABS UPPER COLUMN If necessary, reconnect the negative cable to the COVER battery, then press the engine start/stop button to select the ON mode. Turn the steering wheel 90° 2 HOOKS counterclockwise. Using a plastic trim tool, release the retaining tab.
- Page 5 14. Remove the lower column cover. • Remove the front bulkhead cover. CLIP (short) FRONT CLIP 6 CLIPS BULKHEAD (short) COVER LOWER COLUMN COVER SELF-TAPPING SCREW 15. Remove the front bumper: • Apply masking tape as shown. • Wrap a shop towel around the hood latch. •...
- Page 6 • Remove the two self-tapping screws, two bolts, • With the help of an assistant, release the nine and 14 clips. retaining tabs on each side. NOTE: Remove the retaining tabs from the outside in the order shown. Make sure to remove 2 SELF- the retaining tabs in the correct direction.
- Page 7 • With the help of an assistant, remove the front 16. Remove three clips, and pull back the right inner bumper. Place the front bumper on a blanket to fender as shown. prevent damage. 3 CLIPS RIGHT FRONT HEADLIGHT BUMPER FRONT SECTION VIEW VEHICLE...
- Page 8 18. Remove the left molding from the left cover. 20. Install the left fog light cover to the front bumper, and tighten two self-tapping screws. LEFT MOLDING 7 RETAINING TABS FRONT BUMPER (inside) 5 RETAINING LEFT TABS COVER (Do not reuse.) 2 SELF- TAPPING...
- Page 9 23. Plug the fog light harness 2-pin connector into the 24. Secure the five fog light harness clips to the five ribs left LED fog light, and secure the fog light harness on the front bumper as shown. clip to the hole in the front bumper. FRONT BUMPER (inside) 4 FOG LIGHT...
- Page 10 25. Plug the fog light harness 2-pin connector into the 28. Remove the vehicle harness from the washer tank. right LED fog light, and secure the two fog light Remove three bolts, and move the washer tank harness clips to the two holes in the front bumper. aside.
- Page 11 29. Remove the vehicle ground bolt. 32. Secure the fog light subharness and 1-pin connectors to the vehicle harness with three wire ties. Do not secure the fog light subharness to the washer tube. VEHICLE HARNESS 2 FOG LIGHT SUBHARNESS GROUND TERMINALS 1-PIN...
- Page 12 35. With the help of an assistant, bring the front bumper 37. Route the fog light relay harness as shown. close to the vehicle. Plug the fog light subharness 4-pin connector into the fog light harness 4-pin connector, then install the front bumper. FOG LIGHT SUBHARNESS 4-PIN CONNECTOR HOOD...
- Page 13 42. Unplug the vehicle 18-pin connector. 39. Unclip the vehicle connectors from the vehicle panel. HOOD OPENER VEHICLE PANEL CLIP VEHICLE 18-PIN CONNECTOR 43. Insert the fog light relay harness terminal into the VEHICLE vehicle 18-pin connector as shown. CONNECTORS 40.
- Page 14 47. Unplug the vehicle connector from the combination 45. Plug the fog light relay harness 4-pin and 6-pin light switch. connectors into the fuse box. STEERING COLUMN FOG LIGHT FOG LIGHT RELAY FUSE VEHICLE RELAY HARNESS 6-PIN HARNESS CONNECTOR CONNECTOR 4-PIN CONNECTOR...
- Page 15 49. Install the new combination light switch to the 52. Using isopropyl alcohol on a shop towel, thoroughly steering column. clean the area where the fuse label will attach. NOTE: Do not push on the lever when installing the switch. STEERING COLUMN VEHICLE CONNECTOR...
-
Page 16: Led Replacement
54. Remove the relay box upper cover. Check the Operation of the Fog Light 63. Perform operation check by referring to the vehicle 2 TABS owner’s manual. (Push.) Fog Light Aiming Adjustment RELAY BOX UPPER 64. Adjust the fog light: COVER •...
