INSTALLATION
INSTRUCTIONS

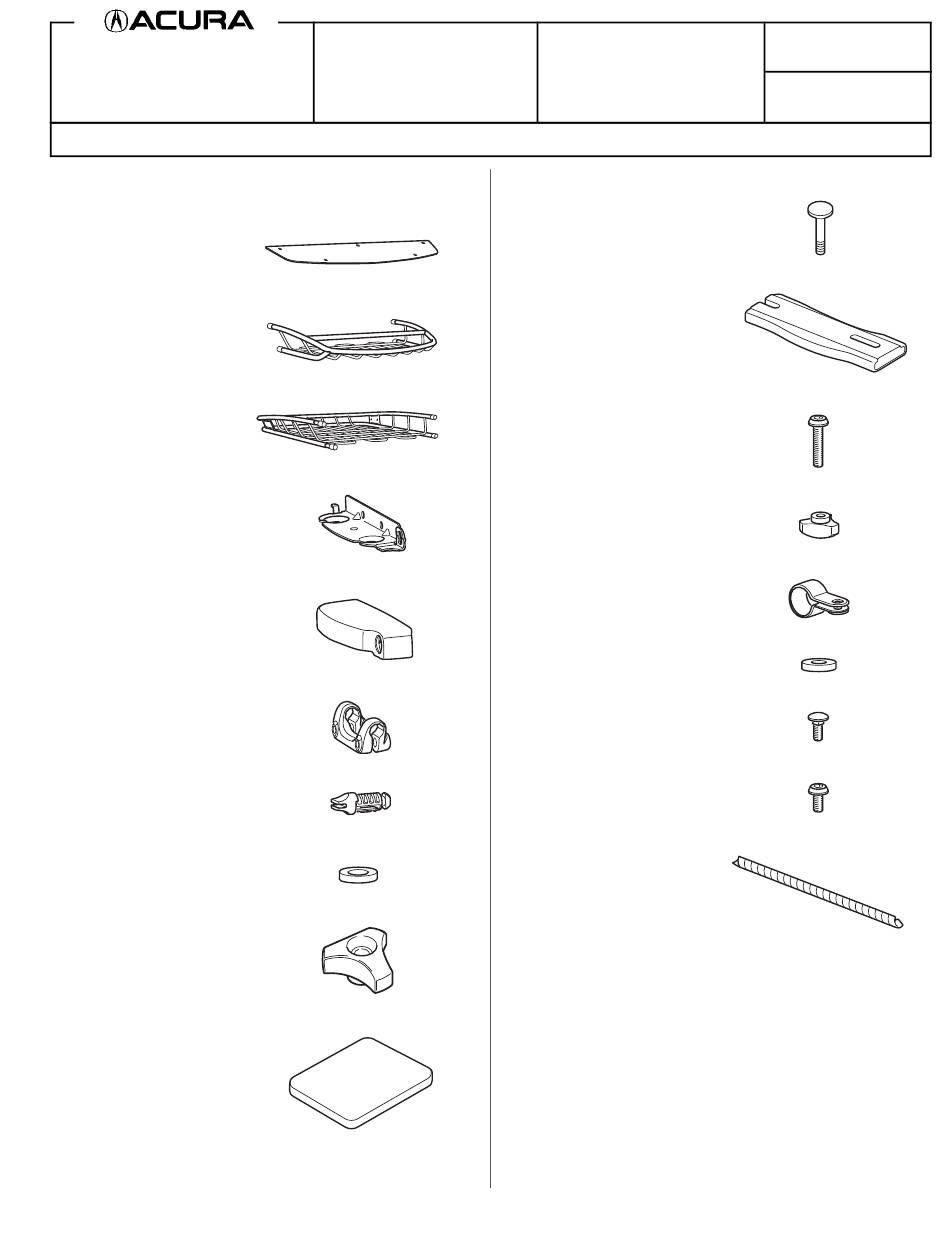

PARTS LIST
Basket fairing
Front basket
Rear basket
4
Mounting plates
4
Bracket covers
4
Mounting brackets
4
Lock plugs
20 Washers, 12 mm
8
Bracket thumbwheels
4
Foam pads
© 2017 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory

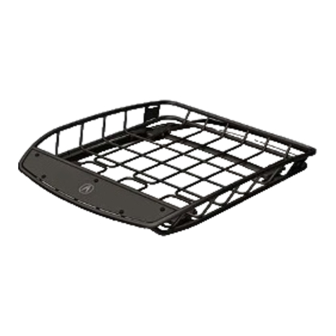

ROOF BASKET
P/N 08L20-E09-200C
Put this information in the glove box for future reference.
Application
ALL APPLICABLE MODELS
8
Carriage bolts A
4
Brackets
8
Bolts, 6 x 27 mm
5
Fairing thumbwheels
5
Fairing clamps
5
Washers, 20 mm
5
Carriage bolts B
4
Bolts, 6 x 12 mm
Spiral Sleeve
TOOLS AND SUPPLIES REQUIRED
Hex wrench
Ratchet
Socket
Scissors
Isopropyl alcohol
Shop towel
Torque wrench
Tape measure
Ruler
BII07632-08 (1711)
Publications No.
VERSION 1
Issue Date
NOV 2017
1 of 7
08L20-E09-2C00-90
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acura 08L20-E09-200C
Summary of Contents for Acura 08L20-E09-200C
- Page 1 Application Publications No. INSTALLATION VERSION 1 ROOF BASKET ALL APPLICABLE MODELS Issue Date INSTRUCTIONS P/N 08L20-E09-200C NOV 2017 Put this information in the glove box for future reference. PARTS LIST Carriage bolts A Basket fairing Brackets Front basket Rear basket...
-
Page 2: Installation
Illustration of the Roof Basket on the Vehicle Attach the front and rear baskets to each other with 6 x 12 mm bolts and 12 mm washers. Torque the bolts to 2.2 lb-ft (3 N·m). ROOF BASKET REAR BASKET ROOF BASKET FRONT BASKET QG41701BC INSTALLATION... - Page 3 Remove the protection film from the basket fairing, Using isopropyl alcohol on a shop towel, thoroughly and place it on top of the fairing clamps. Then, clean the mounting plates where the foam pads will secure the basket fairing to the fairing clamps with attach.
- Page 4 Place the mounting brackets onto the roof basket Using scissors, cut the spiral sleeve into four pieces bars as shown. The mounting brackets should be as as shown. far outboard as possible. NOTE: Make sure the roof basket is equally spaced front and rear.
- Page 5 10. Place the spiral sleeves around the roof basket 11. Place the roof basket on the crossbars. Firmly center bars as shown. secure the roof basket to the crossbars with carriage bolts A, brackets, 12 mm washers, and bracket thumbwheels as shown. 2 SPIRAL 30 mm SLEEVES...
- Page 6 12. Tighten the 6 x 27 mm bolts loosely installed in step 13. Attach the bracket covers to the mounting plates with 8. Torque the bolts to 2.2 lb-ft (3 N·m). lock plugs as shown. ROOF BASKET 4 MOUNTING PLATES 8 BOLTS, ...
- Page 7 • This product is designed to be used exclusively on Acura vehicles. Acura is not responsible if the product is used for anything other than its intended purpose. 7 of 7 ©...
