INSTALLATION
INSTRUCTIONS
Put this information in the glove box with the vehicle owner's manual.

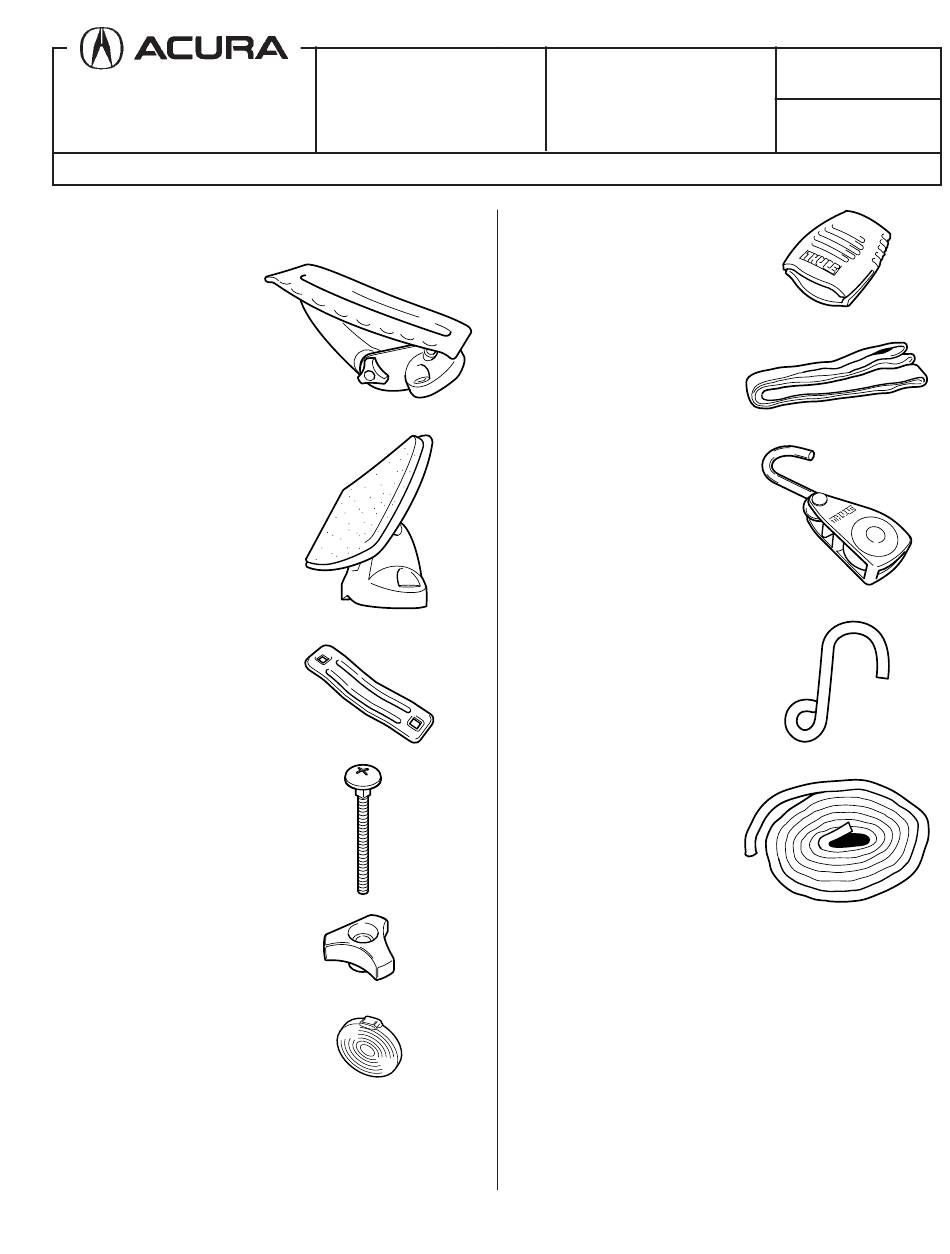

PARTS LIST
2 Saddles
2 Hydro-glide assemblies
4 Brackets
8 Bolts
8 Knobs
2 Straps with buckles
© 2007 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
KAYAK ATTACHMENT
P/N 08L09-TA1-200
2 Buckle covers
2 Attachment straps
2 Rachet hooks
2 Hooks
2 Pieces of rope
INSTALLATION
NOTE: Be careful not to damage the finished surfaces
of the body when installing the kayak attachment.
BII 37432 (0707)
Application
2008 RDX
08L09-TA1-1001-91
Publications No.
BII 37432
Issue Date
JUL 2007
1 of 6
