INSTALLATION
INSTRUCTIONS
GENERAL VIEW
FOR YOUR SAFETY (Read carefully.)
Warning Symbols
Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service
procedures, we have provided safety messages where appropriate. Of course, it is not practical or possible to warn you
about all the hazards associated with servicing a vehicle - you must use your own good judgment.
You will find important safety messages preceded by one of following symbols:
*All symbols are not used in all installation instructions.
DANGER
WARNING
CAUTION
NOTICE
NOTE
© 2022 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory

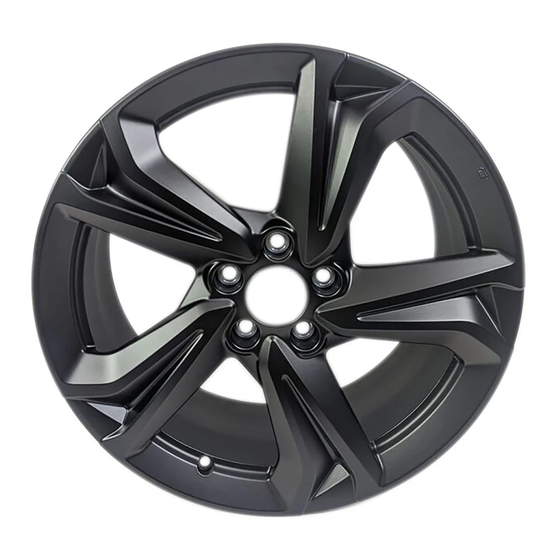

19" ALUMINUM WHEEL
ALUMINUM
WHEEL
You will be killed or seriously hurt if you do not follow the instructions.
You can be killed or seriously hurt if you do not follow the instructions.
You can be hurt if you do not follow the instructions.
Gives advice to prevent damage to the product, vehicle, the environment or other property.
Gives helpful information or instructions to be followed when installing this product.
Application
2023 INTEGRA
MODEL SERIES
BII19600-26 (2205)
Publications No.
VERSION 1
Issue Date
MAY 2022
1 of 7
08W19-3S5-2000-90
Advertisement
Related Manuals for Acura 08W19-3S5-200
Summary of Contents for Acura 08W19-3S5-200

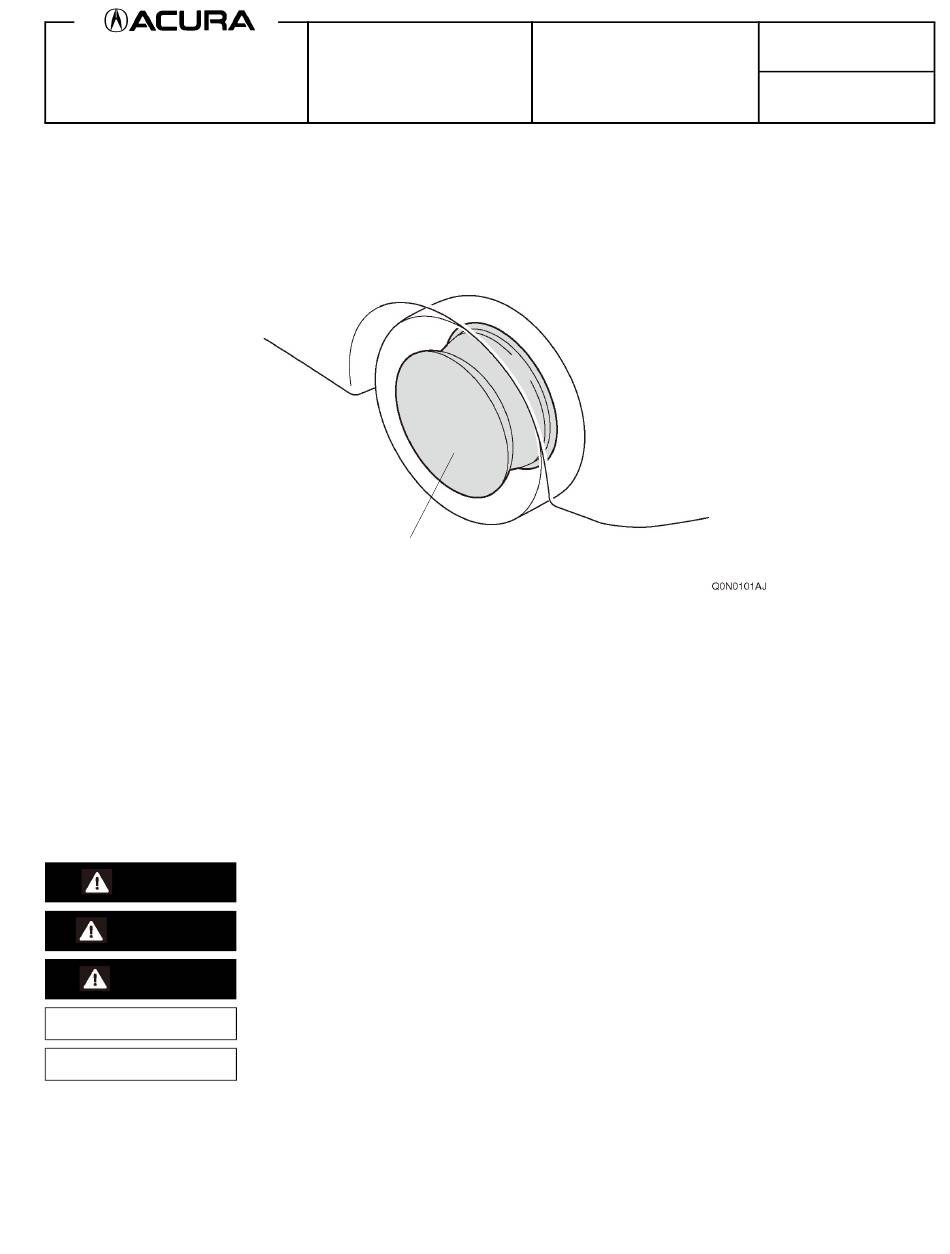

- Page 1 Accessory Application Publications No. INSTALLATION VERSION 1 2023 INTEGRA 19" ALUMINUM WHEEL Issue Date INSTRUCTIONS MODEL SERIES MAY 2022 GENERAL VIEW ALUMINUM WHEEL FOR YOUR SAFETY (Read carefully.) Warning Symbols Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service procedures, we have provided safety messages where appropriate.
- Page 2 Indicates a prohibited action. Procedure and Location Icons These icons indicate the work location and the worker’s point of view. *All icons are not used in all installation instructions. The location in the vehicle. The location on the vehicle. (instrument panel.) Wear eye protection.
-
Page 3: Parts List
If you do, you could damage the part. • Do not wash the vehicle for 24 hours to allow the adhesive to cure. PARTS LIST Aluminum Wheel Kit (P/N 08W19-3S5-200) (P/N 08W19-3S5-200A) (*: The part differs depending on the kit.) Aluminum wheel... -
Page 4: Installation
Tire size 235/35R19 91Y Bolt hole PCD 114.3 (5 holes) HOUSING Front 35 psi (240 kPa) ASSEMBLY VALVE RUBBER Tire pressure Rear 33 psi (230 kPa) INSTALLATION NOTICE This aluminum wheel is designed for use on a vehicle TPMS equipped with a tire pressure monitoring system LUBRICATING SENSOR AREA... - Page 5 ALUMINUM RIM HOLE WHEEL SECTION VIEW TPMS SENSOR OUTSIDE TPMS SENSOR VALVE Make sure there is no gap in this area. ALUMINUM WHEEL Insert the TPMS sensor. Pull. Install the valve insert tool. TPMS SENSOR VALVE INSERT TOOL VALVE (Screw.) Install the valve cap.
- Page 6 NOTICE Keep angle between the tangent of the rim drop-well and bottom surface of the housing within -10° to +10° after insertion. TIRE AND LOADING TIRE AND LOADING S529A S529B INFORMATION A INFORMATION B TPMS SENSOR 10-DIGIT TIRE T125/80R17 NONE INFORMATION CODE 10-DIGIT TIRE...
- Page 7 21. Click the check button. 22. Enter the 10-digit tire information code printed on the new tire and loading information label, then click the check button. 23. Check that the air pressure setting shown on the i-HDS and the new tire pressure information from the tire and loading information label are the same.
