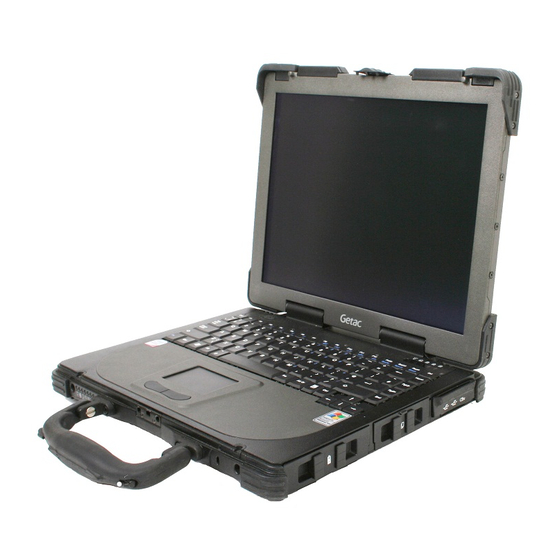

M230
USER'S MANUAL
Rugged Mobile Computing Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Getac M230

Summary of Contents for Getac M230

  • Page 1 M230 USER’S MANUAL Rugged Mobile Computing Solutions...
  • Page 2 May 2009 TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice.
  • Page 3 ® ENERGY STAR is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations. ® Please reference ENERGY STAR related information from www.energystar.gov. ® As an ENERGY STAR Partner, MiTAC Technology Corporation has ®...
  • Page 4 ® Over its lifetime, ENERGY STAR qualified equipment in a single home  office (e.g., computer, monitor, printer, and fax) can save enough electricity to light an entire home for more than 4 years.  Power management (“sleep settings”) on computers and monitors can result in much savings annually.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Getting Started ............. 1-1 Getting the Computer Running ..........1-2 Unpacking ................1-2 Connecting to AC Power ............ 1-2 Opening and Closing the Cover ........1-4 Turning On and Off the Computer ........1-5 Taking a Look at the Computer ..........1-6 Front Components ..............
  • Page 6 Using the Touchscreen (Optional) ........2-12 Using the Hard Disk Drive ............ 2-14 Using the Optical Drive............2-15 Installing the Optical Drive ..........2-16 Inserting and Removing a Disc ........2-17 Using the Video Features ............. 2-19 Configuring the Display Modes ........2-20 Using the Audio Features .............
  • Page 7 Connecting an IEEE 1394B Device (Optional) ....... 4-8 Using PC Cards ................. 4-9 Inserting and Removing a PC Card ........4-9 System Memory Upgrade ............. 4-11 Chapter 5 Using BIOS Setup and System Recovery ..... 5-1 BIOS Setup ................5-2 When to Use BIOS Setup ............
  • Page 8 Touchscreen Guidelines ............7-6 When Traveling ............... 7-8 Chapter 8 Troubleshooting ............8-1 Preliminary Checklist ............... 8-2 Solving Common Problems ............ 8-3 Battery Problems ..............8-3 Bluetooth Problems ............8-3 Display Problems ..............8-4 Hardware Device Problems ..........8-5 Hard Disk Drive Problems ........... 8-5 Infrared Problems ...............

  • Page 9: Chapter 1 Getting Started

    Chapter 1 Getting Started Congratulations on purchasing this rugged notebook computer. This chapter first tells you step by step how to get the computer up and running. Then, you will find a section briefly introducing the external components of the computer.

  • Page 10: Getting The Computer Running

    Getting the Computer Running This section guides you through the procedures for getting the computer ready for operation. Unpacking After unpacking the shipping carton, you should find these standard items: Notebook computer  Accessories:   AC adapter (100~240 VAC, 50/60 Hz) ...
  • Page 11 Power Supply Cord: Alternative: 1. Make sure that the computer is turned off. 2. Plug the DC cord of the AC adapter to the power connector of the computer (  ). 3. Plug the female end of the AC power cord to the AC adapter and the male end to an electrical outlet ( ...

  • Page 12: Opening And Closing The Cover

    4. When the AC adapter is connected, power is being supplied from the electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer.   Opening and Closing the Cover Open the top cover by pulling on the cover latch and lifting up the cover. You can tilt the cover forward or backward for optimal viewing clarity.

  • Page 13: Turning On And Off The Computer

    Turning On and Off the Computer Turning On 1. Make sure that the computer is connected to AC power. 2. Press the power button ( 3. Each time the computer is turned on, it performs a Power-On Self Test (POST), and the operating system such as Windows should start. Turning Off To turn off the computer power, use the “Shut Down”...

  • Page 14: Taking A Look At The Computer

    Taking a Look at the Computer Front Components Component Description See Also  Top Cover Latch Locks the top cover. P. 1-4  Kensington Locks the computer to a stationary object P. 7-3 Lock for security.  Touchscreen Provides a convenient way to use the P.
  • Page 15 Component Description See Also Battery Charge Indicator P. 3-3 Glows green when the battery is fully charged and connected to AC power. Glows amber when the battery is being charged. Battery Power Indicator P. 3-3 Glows green when computer is using battery power.

  • Page 16: Rear Components

    Rear Components Component Description See Also  IR Port Connects an IrDA-compliant device for P. 4-6 wireless data transfer.  Power Connector Connects the AC adapter. P. 1-2  Serial Port Connects a serial device, such as an P. 4-5 external modem.

  • Page 17: Right-Side Components

    Right-Side Components Component Description See Also  Primary Battery Supplies power to your computer when P. 3-3 Pack external power is not connected.  PC Card Slot Accepts a PC card for additional P. 4-9 functions.  USB Ports Each of the two ports connects a USB P.

  • Page 18: Left-Side Components

    Left-Side Components Component Description See Also  Combo / DVD Accepts a compact disc for installing or P. 2-15 Dual Drive loading software, accessing data, and playing music/video. - or - Secondary You can purchase a secondary battery P. 3-6 Battery Pack pack to be installed here for prolonged battery operating time.

  • Page 19: Bottom Components

    Bottom Components Component Description See Also  Stereo Speaker Sends out sound and voice from the P. 2-21 computer.  Memory Slot Contains the memory slot for expanding P. 4-11 the memory size of your computer.  Docking For connecting to a Port Replicator or Connector Car Mount (both are available as an (POGO)

  • Page 20: Top-Open Components

    Component Description See Also  Docking Antenna Connects to an external antenna from Connector docking.  SIM Card Slot Contains the SIM card slot for using the P. 2-28 GSM/ GPRS/CDMA/WCDMA function. Top-open Components...
  • Page 21 Component Description See Also  Power Button Turns the computer power ON and OFF. P. 1-5  Keyboard Serves as the data input device of the P. 2-4 computer.  Touchpad Serves as the pointing device of the P. 2-9 computer.

  • Page 23: Operating Your Computer

    Chapter 2 Operating Your Computer This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user, you may choose to read only the parts containing information unique to your computer.

  • Page 24: Starting And Stopping The Computer

    Starting and Stopping the Computer There are a number of ways to start and stop the computer. Starting the Computer You always start the computer using the power button. A computer starts up with an operating system (OS) existing on the storage device such as the hard disk.
  • Page 25 To stop in this Do this... To start up or mode... resume again Standby/Sleep Depending on your settings in Press any key. Windows, you can place the computer in Standby/Sleep mode by:  Closing the display cover  Pressing the Fn+F12 hot key ...

  • Page 26: Using The Keyboard

    Using the Keyboard Fn+F8 Your special shower-proof and dust-proof rubber keyboard has all the standard functions of a full-sized computer keyboard plus an Fn key added for specific functions. The standard functions of the keyboard can be further divided into four major categories: Typewriter keys ...

  • Page 27: Cursor-Control Keys

    Cursor-Control Keys Numeric Keypad A 15-key numeric keypad is embedded in the typewriter keys as shown next:...

  • Page 28: Function Keys

    Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals.   Function Keys On the top row of the keys are the function keys: F1 to F12. Function keys are multi-purpose keys that perform functions defined by individual programs.
  • Page 29 Description Switches the optional keyboard backlight function on/off with 20 levels of brightness in between. Decreases the sound volume. Increases the sound volume. Decreases the LCD backlight. Increases the LCD backlight. Switches the LCD on and off. Switches the display output to one of the following when an external device is connected.

  • Page 30: Euro Symbol

    Description Switches the wireless LAN radio on and off. Switches the optional GPS function on and off. Euro Symbol You can press the euro dollar sign on various keyboards. To press the euro sign on a standard United States keyboard, hold down ...

  • Page 31: Using The Touchpad

    Using the Touchpad The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons. The touchpad consists of a rectangular pad (work surface) and a left and right buttons.
  • Page 32 Here are some common terms that you should know when using the touchpad: Term Action Point Move your finger on the pad until the cursor points to the selection on the screen. Click Press and release the left button. –or– Tap gently anywhere on the pad.

  • Page 33: Configuring The Touchpad

    Configuring the Touchpad You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.

  • Page 34: Using The Touchscreen (Optional)

    Using the Touchscreen (Optional) Serial Port COM3 (Touchscreen)   The touchscreen is a touch-sensitive device that allows you to easily use the computer without a mouse or touchpad.
  • Page 35 Here are some common terms that you should know when using the touchscreen: Term Action Click/Point Tap gently on the touchscreen. Double-click Tap twice on the touchscreen rapidly. Drag and drop Press lightly on the touchscreen and move your finger until you reach your destination (drag).

  • Page 36: Using The Hard Disk Drive

    Using the Hard Disk Drive Your computer comes with a removable hard disk drive as drive C. A hard disk drive is a storage device with non-removable, rotating, magnetic storage platters inside it. It is where your operating system and application software programs are stored.

  • Page 37: Using The Optical Drive

    Using the Optical Drive Depending on the model, your computer comes with a Combo drive or DVD dual recorder located on the left side of the computer. This drive is usually configured as drive D. Depending on the model, your drive is one of the following: Combo drive can read CDs, audio CDs, CD-R, CD-RW, and DVD discs, and ...

  • Page 38: Installing The Optical Drive

    Installing the Optical Drive To install the optical drive: 1. Make sure that the computer is off. 2. Locate the optical drive bay on the left side of the computer. 3. Gently place the computer upside down. 4. Open the optical drive bay cover by pressing on both sides of the release ...

  • Page 39: Inserting And Removing A Disc

    7. Insert the optical drive all the way into the drive bay and close the release knob. 8. Close the optical drive bay cover. Inserting and Removing a Disc Follow this procedure to insert or remove a disc. 1. Turn on the computer. 2.
  • Page 40 4. Press the eject button and the drive tray will slide out partially. Gently pull on it until it is fully extended. 5. To insert a disc, place down the disc in the tray with its label facing up. Slightly press the center of the disc until it clicks into place. To remove a disc, hold the disc by its outer edge and lift it up from the tray.

  • Page 41: Using The Video Features

    Using the Video Features The video subsystem of your computer features: 14.1-inch TFT (Thin-Film Transistor) color LCD display with XGA  (Extended Video Graphics Array) resolution, or 15-inch TFT color LCD display with SXGA+ (Super Extended Video Graphics Array) resolution 128 MB shared with system memory ...

  • Page 42: Configuring The Display Modes

    Configuring the Display Modes Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information. For displaying in higher resolutions, you can connect an external CRT monitor that supports higher resolutions.

  • Page 43: Using The Audio Features

    Using the Audio Features   The audio subsystem of your computer features: External audio connectors (  )  A set of speakers (  )  Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

  • Page 44: Connecting Audio Devices

    Connecting Audio Devices For higher audio quality, you can send or receive sound through external audio devices. Audio Output Connector ( ) can be connected to the line-in  connector of powered speakers with built-in amplifiers, headphones, or earphone set. ...

  • Page 45: Using The Communication Features

    Using the Communication Features Using the LAN The internal 10/100/1000Base-T LAN (Local Area Network) module allows you to connect your computer to a network. It supports data transfer rate up to 1000 Mbps. To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub.

  • Page 46: Using The Wireless Lan (Optional)

    Using the Wireless LAN (Optional) Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may have been pre-installed by your computer manufacturer at the factory. This card allows you to access corporate networks or the Internet in a wireless environment.

  • Page 47: Configuring The Wlan

    Turning Off/On the WLAN Radio    Your computer has a built-in Fn+F11 WLAN hot key to switch the WLAN on/off. The WLAN indicator ( ) glows to indicate that the computer is ready for WLAN connection. If you need to temporarily turn off the radio, press Fn+F11. To resume network connection, press Fn+F11 again.
  • Page 48 4. Click to select a wireless network to connect to, and then click Connect. 5. Depending on the settings, you may be asked to enter a wireless security password (encryption key). For more information on the Intel PROSet Wireless utility, click Help? in the Intel(R) PROSet/Wireless window.

  • Page 49: Using The Modem

    Using the Modem The internal 56 K fax/data modem allows you to use the telephone line to communicate with others by fax, email, or connect to an online service or bulletin board. To connect the telephone line to the modem, connect one end of the modem cable to the RJ-11 connector on the computer and the other end to the phone line.

  • Page 50: Using The Wireless Modem (Optional)

    Using the Wireless Modem (Optional) Depending on your model, your computer includes an integrated GSM (Global System for Mobile Communications) / GPRS (General Packet Radio Service) feature. After you establish a subscription with a GSM/GPRS service provider, you can use the wireless data features of your computer. Check with your service provider for a list of available wireless data services.

  • Page 51: Using The Bluetooth Feature (Optional)

    Connecting Using GPRS Your computer can receive General Packet Radio Services (GPRS), a high-speed data-only service that transmits data over a mobile telephone network. In addition, GPRS provides permanent on-line connection. To use GPRS, you must have a subscription to the function with a service provider that supports GPRS.

  • Page 52: Connecting To Another Bluetooth Device

    Connecting to another Bluetooth Device 1. Make sure that the target Bluetooth device is turned on, discoverable and within close range. (See the documentation that came with the Bluetooth device.) 2. Double-click the icon, then click New Connection or click Bluetooth, then Add New Connection .
  • Page 53 4. Select the device to connect to and click on Next. 5. Depending on the type of Bluetooth device that you want to connect to, you will need to enter the pertinent information. Sending a File 1. Right-click the icon, and then click Wireless File Transfer. The following screen appears.

  • Page 54: Using The Gps Feature (Optional)

    Using the GPS Feature (Optional) GPS (Global Positioning System) is a constellation of 24 well-spaced satellites that orbit the Earth and make it possible for devices enabled with GPS receivers to pinpoint their location. You need to install third-party GPS navigation software to take advantage of the GPS feature.

  • Page 55: Chapter 3 Managing Power

    Chapter 3 Managing Power Your computer operates either on external AC power or on internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

  • Page 56: Ac Adapter

    AC Adapter     The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

  • Page 57: Battery Pack

    Battery Pack The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter. The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

  • Page 58: Initializing The Battery Pack

    Initializing the Battery Pack You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected. Initializing is the process of fully charging, discharging, and then charging. It can take several hours.

  • Page 59: Replacing The Primary Battery Pack

    You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the battery icon on the system tray. Replacing the Primary Battery Pack   If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.

  • Page 60: Installing The Secondary Battery Pack

    5. Slide the new battery pack all the way into the slot. Make sure to observe the correct orientation (the ribbon strip must face outward for future battery back removal). 6. Close the compartment cover to secure the battery pack. Installing the Secondary Battery Pack For prolonged battery operating time, you may consider the purchase of an secondary battery pack from your dealer.

  • Page 61: Battery Low Signals And Actions

    6. Slide the secondary battery pack all the way into the bay and close the release knob. 7. Close the cover. Battery Low Signals and Actions When the battery is low, Windows gives warning messages and the Battery Charge Indicator ( ) blinks amber to alert you.
  • Page 62 If you do not take any action, the computer will automatically hibernate (Windows default setting) and turn off.  ...

  • Page 63: Power Management

    Power Management Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving. With an ACPI-compliant operating system such as Windows, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

  • Page 64: Hibernation Mode

    Hibernation Mode Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off. When you use the hibernation feature, you do not have to close the applications.

  • Page 65: Power-Saving Tips

    Power-Saving Tips In addition to your computer’s automatic power management, you can do your part to maximize the battery’s operating time by following these suggestions. Do not disable Power Management. Choose a Windows power plan that  saves power. A power plan is a collection of hardware and system settings that control how your computer manages power.

  • Page 67: Expanding Your Computer

    Chapter 4 Expanding Your Computer You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.

  • Page 68: Connecting An External Monitor

    Connecting an External Monitor If you want the benefits of a larger display screen with higher resolution, you can connect an external display monitor to your computer. Follow this procedure to connect an external monitor: 1. Make sure that the computer is not turned on. 2.

  • Page 69: Connecting A Usb Device

    Connecting a USB Device Your computer has two USB ports for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse. The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices. To connect a USB device, simply plug the device cable to one of the USB ports.

  • Page 70: Connecting A Parallel Device

    Connecting a Parallel Device Your computer has a parallel port for connecting a parallel device such as printer. The port supports ECP (Extended Capabilities Port) and EPP (Enhanced Parallel Port) modes that turn the standard parallel port into a high-speed bi-directional peripheral port. Follow this procedure to connect a parallel device: 1.

  • Page 71: Connecting A Serial Device

    Connecting a Serial Device Your computer has a serial port for connecting a serial device such as a serial mouse or modem. Follow this procedure to connect a serial device: 1. Make sure the Serial Port COM1 item is set properly in the BIOS Setup program.

  • Page 72: Connecting An Ir Device

    Connecting an IR Device  Serial Port COM2 (FIR)  Your computer has an IR (infrared) port for connecting an infrared- equipped device wirelessly such as another computer, printer, or PDA (Personal Digital Assistant). When using the IR port of your computer to receive data: ...
  • Page 73     ...

  • Page 74: Connecting An Ieee 1394B Device (Optional)

    Connecting an IEEE 1394B Device (Optional) Your computer may come with an IEEE 1394B port for connecting IEEE 1394B devices. IEEE 1394B is the next-generation serial bus standard, featuring high-speed data transfer that doubles the throughput of the original IEEE 1394A interface (from 400 Mbit/sec to 800 Mbit/sec) and dramatically increases the maximum distance of connections (up to 15 feet away, while a FireWire 800 optical repeater will connect devices up to 1000 meters (3300 feet) away).

  • Page 75: Using Pc Cards

    Using PC Cards Your computer has a PC card slot that supports the CardBus specifications. Your computer’s PC card slot can accommodate a type II card. Typical type II cards are flash memory, SRAM, modem, LAN, and SCSI cards. Inserting and Removing a PC Card ...
  • Page 76 3. Slide the PC card, with its label facing up, into the slot until the eject button pops out. Eject button 4. When a new card is seated, the computer will detect it and try to install the appropriate driver. Follow the on-screen instructions to complete the process.

  • Page 77: System Memory Upgrade

    System Memory Upgrade You can upgrade your computer by changing system memory to a maximum of 2 GB on the two 200-pin 533/667 MHz DDR2 SO-DIMM slots. To install the RAM module: 1. Remove the battery pack (see chapter 3) and make sure that the computer is not connected to AC power.
  • Page 78 4. To install the RAM module, match the module's notched part with the socket's projected part and firmly insert the module into the socket at a 20-degree angle. Then push down until the retaining clips lock the module into position. 5.

  • Page 79: Using Bios Setup And System Recovery

    Chapter 5 Using BIOS Setup and System Recovery BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer. BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand.

  • Page 80: Bios Setup

    BIOS Setup When to Use BIOS Setup When to Use You need to run BIOS Setup Utility when: You see an error message on the screen requesting you to run BIOS  Setup Utility. You want to restore the factory default BIOS settings. ...

  • Page 81: Moving Around And Making Selections

    The BIOS Setup Utility screen can be divided into four areas: On the top is the menu bar containing the titles of the available menus.  Each menu title brings a specific menu. The left column of the menu displays the menu items. ...

  • Page 82: Main Menu

    Function  ,  Selects a menu title.  ,  Selects an item or option. + / – Changes the value. Enter 1) Brings up the sub-menu when available. 2) Opens or closes the option window when an item is selected. 1) Exits BIOS Setup Utility.

  • Page 83: Advanced Menu

    IDE Channel 0 / Secondary Master/Slave sets the type of storage device installed. Advanced Menu The Advanced menu contains the I/O (input/output) configuration settings of the system. Serial Port COM1 enables or disables the serial (COM1) port. The options are Enabled Disabled Serial Port COM2 (FIR) enables or disables the infrared (COM2) port.

  • Page 84: Security Menu

    AHCI Configuration allows you to enable the enhanced AHCI function Windows XP Service Pack 1 + IAA driver supports AHCI mode). This item only Enhanced appears if the previous item SATA – Device 31, Function 2 is set at Enabled Disabled The options are Boot-time Diagnostic Screen sets if the system diagnostic screen would be...
  • Page 85 TPM is shipped without an owner installed.  – Ownership configured to be taken remotely or locally – Owner may be: User of the system (consumer PC) – IT department (corporate PC) owner authorizes privileged operations – Creating keys, making identities, key migration Proves integrity of a command.

  • Page 86: Boot Menu

     Fixed disk boot sector allows you to set if a warning message will appear when the hard disk boot sector (partition table) has been changed. Fdisk Format Password on Boot allows you to enable or disable the entering of password for booting up your system.
  • Page 87 The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS uses to look for a device from which to load the OS. Below is a brief description of keyboard usage: Function ...

  • Page 88: Exit Menu

    Exit Menu The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your settings, you must save and exit so that the changes can take effect. Exit Saving Changes saves the changes you have made and exits BIOS Setup Utility.

  • Page 89: System Recovery

    System Recovery You need to run System Recovery when: Your computer does not start correctly.  Your Windows operating system does not start at all.  You want to restore the factory default Windows settings.  To run System Recovery: 1.
  • Page 90 You must accept the following terms before performing the recovery process: 1. The recovery software is solely the purpose of reinstalling or restoring software associated with the hard disk of this operating GETAC machine. 2. Except the above, no other use is granted hereunder.
  • Page 91 5. After the recovery process has been completed successfully, the GSI (GETAC Smart Installer) screen is displayed at the first boot-up of Windows operating system. 6. GSI will automatically perform system hardware detection and driver installation. After GSI has completed the whole process successfully,...

  • Page 93: Installing Software Drivers And Utilities

    Chapter 6 Installing Software Drivers and Utilities To take full advantage of the unique features of your computer, drivers and utilities must be installed. If you purchased the computer with Windows pre-installed, your dealer may have already installed the drivers and utilities. If not, you need to install them using the disc supplied with your computer.

  • Page 94: How To Use The Driver Disc

    How to Use the Driver Disc     An autorun program is provided on the driver disc to help you easily install the drivers. As you insert the disc, the autorun program automatically starts. If you need to start the program manually, run the Autorun.exe program from the driver disc.

  • Page 95: Installation For Windows Xp

    Installation for Windows XP After selecting the operating system Windows XP from the main screen, the driver installation screen appears as shown next: To install a driver, just click the particular button and follow the onscreen instructions to continue and complete installation. Drivers on the First Page Device Driver Ensures the full function of the following drivers.
  • Page 96 PROSet Installs the WLAN driver that allows your system to connect wirelessly to the Internet. Hotfix Allows you to install the Microsoft hotfix (for Windows XP Service Pack 2 only). TouchScreen Allows you to use your fingers as a pointing device on the LCD screen.

  • Page 97: Drivers On The Second Page

    Driver Allows you to install the driver for using the TPM (Trusted Platform Module) support for security. Application Allows you to install the TPM application. TouchScreen Allows you to use your fingers (or optional touchscreen pen) as a pointing device on the LCD screen (refer to the next section for further instructions).
  • Page 98 Vehicle Dock Upon clicking on this, the following screen appears. Video Capture Allows you to install the video capture driver (STK1120/STK1160) to connect a video capture device through the AV input port (option). USB-to-COM Allows you to use the optional wireless modem and GPS features to transmit information wirelessly.
  • Page 99 Option Driver Upon clicking on this, the following screen appears. Optional Hotfix Upon clicking on this, the following screen appears. The items on this screen allow you to install the hotfix for using USB, WCDMA, and Bluetooth devices. WCDMA Allows you to install the Novatel EU740 / Sierra 8775V WCDMA driver and application.
  • Page 100 Module Switch Allows you to power ON/OFF the Bluetooth® wireless feature / WLAN radio as well as set the power ON/OFF state during system startup. Battery Calibration Upon clicking on this, the following screen appears. Utility Installs the battery pack automatic calibration utility that includes the Battery Monitor and Battery Learning programs.

  • Page 101: Installation For Windows Vista

    Installation for Windows Vista After selecting the operating system Windows Vista from the main screen, the driver installation screen appears as shown next: To install a driver, just click the particular button and follow the onscreen instructions to continue and complete installation. Drivers on the First Page Chipset Ensures the full function of the following drivers.
  • Page 102 Audio Installs the audio driver that allows you to take full advantage of the audio subsystem. Upon clicking on this, the following screen appears. TPM Support Security Driver Allows you to install the driver for using the TPM (Trusted Platform Module) support for security.
  • Page 103 Vehicle Dock Upon clicking on this, the following screen appears: Video Capture Allows you to install the video capture driver (STK1160) to connect a video capture device through the AV input port (option). USB-to-COM Allows you to use the wireless modem and GPS features to transmit information wirelessly.

  • Page 104: Drivers On The Second Page

    Drivers on the Second Page Upon clicking on Next Page from page 1, the following screen appears. IrDA Installs the IR driver that allows you to use the infrared function of the computer. MTCCTRL Allows you to use the built-in heater feature that automatically turns on for low temperature hard disk drive operation.
  • Page 105 Option Driver Upon clicking on this, the following screen appears. WCDMA Installs the Novatel EU740 / Sierra 8775V WCDMA driver and application. CDMA Install the Sierra 5720/25V CDMA driver and application. Smart Card Installs the smart card driver for using the smart card reader feature.
  • Page 106 Battery Upon clicking this button, the following screen Calibration appears. Utility Installs the battery pack automatic calibration utility that includes the Battery Monitor and Battery Learning programs. Help Displays the instructions for performing a battery calibration.

  • Page 107: Using Special Utilities

    Using Special Utilities Touchscreen Utility After installing the touchscreen driver/utility, you can use PenMount Monitor to configure your touchsreen. 1. Cick the PenMount Monitor icon located on the system tray bring up the PenMount Control Panel. 2. Click Standard Calibration. 3.

  • Page 108: Osd For Hot Key Operations

    OSD for Hot Key Operations With the OSD driver installed, it is activated every time Windows starts up. A graphic display will appear on the screen to indicate the current status when you perform a hot key operation (as listed next). The OSD disappears after a few seconds.
  • Page 109 Icon OSD Description Hot Key/Button Operation Icon appears on the screen to indicate that AC power cord has been connected or unplugged. The OSD disappears after a few seconds. AC In AC Out...

  • Page 111: Caring For The Computer

    Chapter 7 Caring for the Computer Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer. This chapter gives you guidelines covering areas such as protecting, storing, cleaning, and traveling.

  • Page 112: Protecting The Computer

    Protecting the Computer To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section. Using an Anti-Virus Strategy You can install a virus-detecting program to monitor potential viruses that could damage your files.

  • Page 113: Using The Cable Lock

    Using the Cable Lock You can use a Kensington-type cable lock to protect your computer against theft. The cable lock is available in most computer stores. To use the lock, loop the lock cable around a stationary object such as a table.

  • Page 114: Taking Care Of The Computer

    Taking Care of the Computer Location Guidelines  For optimal performance, use the computer where the recommended temperature is between 0 C (32 F) and 55 C (131 F) – actual operating temperature depending on product specifications. Avoid placing the computer in a location subject to high humidity, ...

  • Page 115: Cleaning Guidelines

    a screen saver or other software that prevents the power management from working. Cleaning Guidelines  Never clean the computer with its power on.  Use a soft cloth moistened with water or a non-alkaline detergent to wipe the exterior of the computer. Gently wipe the display with a soft, lint-free cloth.

  • Page 116: Touchscreen Guidelines

    It is recommended that you do not charge the battery pack more than  once a day. It is recommended that you charge the battery pack with the computer’s  power off.  To maintain the battery pack’s operating efficiency, store it in a cool dark place removed from the computer and with 30 % ~ 40 % charge remaining.
  • Page 117 To remove hard to remove dirt, blow some steam on the particular area and gently wipe away using a soft cloth. Turn off the computer power when cleaning the display. Cleaning the  display with the power on may cause improper operation. ...

  • Page 118: When Traveling

    When Traveling Before traveling with your computer, make a backup of your hard disk  data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data. Make sure that the battery pack is fully charged. ...

  • Page 119: Chapter 8 Troubleshooting

    Chapter 8 Troubleshooting Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved. This chapter tells you what actions to take when solving common computer problems.

  • Page 120: Preliminary Checklist

    Preliminary Checklist Here are helpful hints to follow before you take further actions when you encounter any problem: Try to isolate which part of the computer is causing the problem.  Make sure that you turn on all peripheral devices before turning on the ...

  • Page 121: Solving Common Problems

    Solving Common Problems Battery Problems The battery does not charge (Battery Charge indicator does not light yellow). Make sure that the AC adapter is properly connected.  Make sure that the battery is not too hot or cold. Allow time for the ...

  • Page 122: Display Problems

    Make sure that the other device is not in “Hidden” mode.  Make sure that both devices are compatible.  I cannot end a Bluetooth connection.  If another device is connected to your computer, you can either end the connection using the other device or by deactivating Bluetooth.

  • Page 123: Hardware Device Problems

    Resolution cannot be adjusted to desired setting.  Make sure that the VGA driver is installed correctly. The external monitor displays nothing. Make sure that the monitor is turned on.  Make sure that the monitor’s signal cable is properly connected. ...

  • Page 124: Infrared Problems

    The hard disk drive operations seem slow.  The data files stored on the hard disk drive may be fragmented. Use a tool such as Window’s Disk Defragmenter to defragment the files. The hard disk drive in-use indicator glows without blinking. The data files stored on the hard disk drive may be fragmented.

  • Page 125: Keyboard, Mouse, And Touchpad Problems

    Keyboard, Mouse, and Touchpad Problems The keyboard does not respond. Try connecting an external keyboard. If it works, contact an authorized  dealer, as the internal keyboard cable might be loose. The numeric keypad is disabled.  Make sure that the Num Lock is switched on. (Check if the Num Lock Indicator glows or not.) The external keyboard does not work.
  • Page 126 Make sure that the WLAN feature is turned on (Fn+F11).  Transmission quality is poor.  Your computer may be in an out-of-range situation. Move your computer closer to the Access Point or another WLAN device it is associated with. Check if there is high interference around the environment and solve the ...

  • Page 127: Modem Problems

    Use the Web Manager/Telnet of the Access Point to check whether it is  connected to the network. Reconfigure and reset the Access Point.  I cannot access the network. Make sure that the necessary driver(s) is correctly installed.  Make sure that the network configuration is appropriate.

  • Page 128: Pc Card Problems

    You cannot eject a disc.  The disc is not properly seated in the drive. Manually release the disc following the method described next: 1. Turn off the system. 2. Insert a small rod, such as a straightened paperclip, into the drive’s manual eject hole and push firmly to release the tray.

  • Page 129: Power Management Problems

    Power Management Problems The computer does not enter Standby/Sleep or Hibernation mode automatically. If you have a connection to another computer, the computer does not  enter Standby/Sleep or Hibernation mode if the connection is actively in use. Make sure that the Standby/Sleep or Hibernation time-out is enabled. ...

  • Page 130: Software Problems

    Make sure that you have assigned the printer port correctly in your  operating system or application program. Make sure that the printer port is enabled in the BIOS SETUP program.  The printer prints garbled information. Make sure that the printer driver is correctly installed. ...

  • Page 131: Startup Problems

    The external microphone or audio device does not work.  Make sure that the microphone is connected to the proper connector on the computer. Make sure that your computer is equipped with the driver needed.  Click the speaker symbol on the taskbar and check the Windows volume ...

  • Page 132: Resetting The Computer

    Resetting the Computer You may have to reset (reboot) your computer on some occasions when an error occurs and the program you are using hangs up. If the computer operation seems to hang up, first wait. It is possible that the computer is processing data.

  • Page 133: Appendix A Specifications

    Appendix A Specifications Parts Specifications ® Intel core duo LV processor, 1.66 GHz ® Core logic Intel 945GMS chipset + ICH7-M System 512 MB DDR2 Video 128 MB (shared system memory) Display Panel 14.1/15-inch TFT XGA/SXGA LCD Touchscreen (option), sunlight-readable (option) Touchscreen + sunlight-readable (option) ®...
  • Page 134 Parts Specifications Power AC adapter Input: 100240 V AC, 5060 Hz universal adapter Primary Li-ion 9-cell 7800 mAh / 11.1 V Battery Secondary Li-ion 3700 mAh / 11.1 V – option via optical drive bay Battery Dimension (W×D×H) 12.9× 10.7× 1.81 inch (328× 272.1× 46 mm) for 14.1-inch model 13.3×...

  • Page 135: Appendix B Regulatory Information

    Appendix B Regulatory Information This appendix provides regulatory statements and safety notices on your computer.

  • Page 136: On The Use Of The System

    On the Use of the System Class B Regulations Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 137: Safety Notices

    Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This Class B digital apparatus meets all requirements of the Canada Interference-Causing equipment regulations. Cet appareil numérique de Classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouileur. This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 138 FINNISH VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. ENGLISH CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer.

  • Page 139: About The Modem

    paper or other objects that will reduce cooling. Do not use the AC adapter while it is inside a carrying case. Connect the adapter to a proper power source. The voltage  requirements are found on the product case and/or packaging. ...

  • Page 140: On The Use Of The Rf Device

    On the Use of the RF Device USA and Canada Safety Requirements and Notices IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 141 The use of wireless devices on airplanes is governed by the Federal  Aviation Administration (FAA). The use of wireless devices in hospitals is restricted to the limits set forth  by each hospital. Antenna use: In order to comply with FCC RF exposure limits, low gain integrated ...
  • Page 142 EMC Requirements This device uses, generates and radiates radio frequency energy. The radio frequency energy produced by this device is well below the maximum exposure allowed by the Federal Communications Commission (FCC). This device complies with the limits for a Class B digital device pursuant to Part 15 subpart C of the FCC Rules and Regulations.

  • Page 143: European Union Ce Marking And Compliance Notices

    shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal.
  • Page 144 Icelandic Þessi vara stenst reglugerð Evró pska Efnahags Bandalagsins nú mer 1999/5/EC. Italian Questo prodotto è conforme alla Direttiva Europea 1999/5/EC. Norwegian Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC. Portuguese Este produto cumpre com as normas da Diretiva Européia 1999/5/EC. Spanish Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
  • Page 145 Belgium and the Netherlands In Belgium and the Netherlands, the product may not be used outdoors. See the instructions next under the heading “Turning Off the Wireless LAN Radio.” France Departments in Which the Wireless LAN Module Can Be Used (Indoors Only) The wireless LAN module can currently be used indoors only in the following 38 departments of mainland France.
  • Page 146 Frequency Ranges Indoors Outdoors (MHz) 2400 – 2446.5 10 mW Not permitted 2446.5 – 2483.5 100 mW 100 mW on private property with Ministry of Defense approval Turning Off the Wireless LAN Radio NOTE: Turning the wireless LAN radio off is not the same as disabling the wireless LAN card.

Table of Contents
