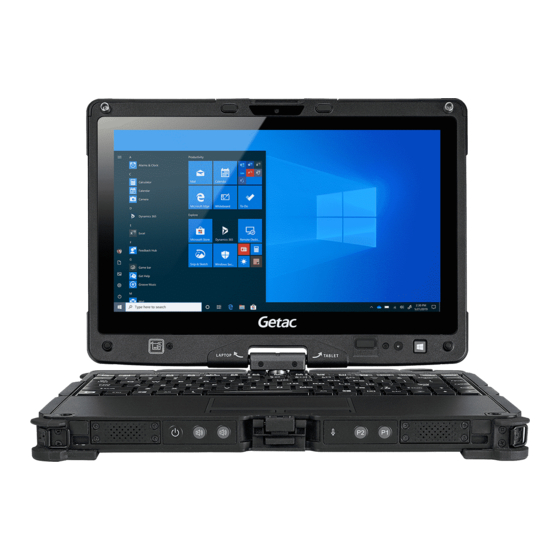

Getac V110 User Manual

Hide thumbs Also See for V110:
Table of Contents

Advertisement

Quick Links

See also: User Manual
V110
USER MANUAL
Rugged Mobile Computing Solution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V110 and is the answer not in the manual?

Questions and answers

Jacquelyn Dalbero
May 22, 2025

The function keys are not working

0

Subscribe to Our Youtube Channel

Related Manuals for Getac V110

Summary of Contents for Getac V110

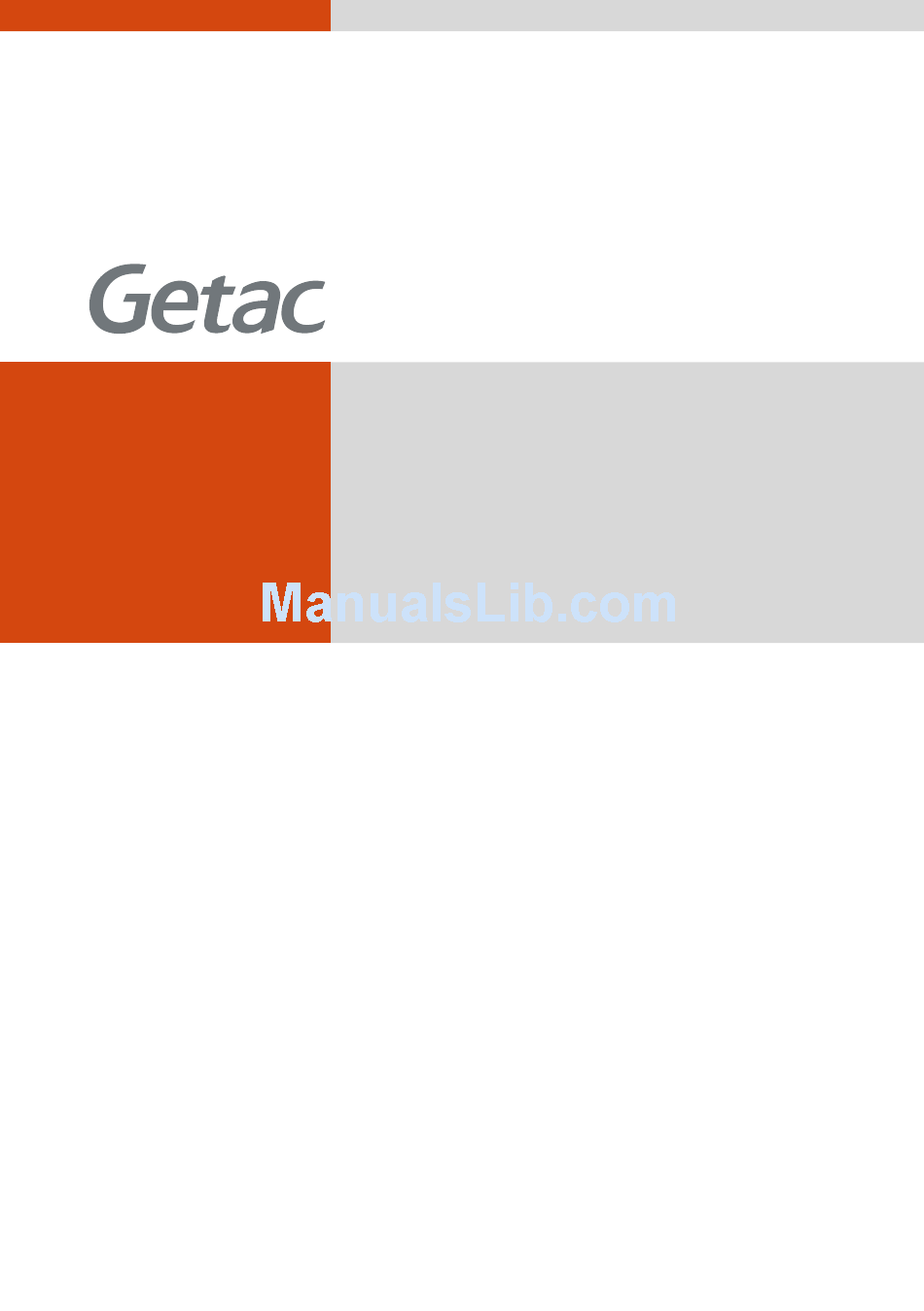

  • Page 1 V110 USER MANUAL Rugged Mobile Computing Solution...
  • Page 2 All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice. For the latest version of the manual, please visit the Getac website at www.getac.com.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Getting Started .............. 1-1 Getting the Computer Running ..........1-2 Unpacking ................1-2 Connecting to AC Power ............ 1-3 Opening and Closing the Cover ......... 1-4 Operating in Tablet Mode ..........1-5 Turning On and Off the Computer ........1-7 Taking a Look at the Computer ..........
  • Page 4 Using the Touchpad ..............2-7 Configuring the Touchpad ..........2-9 Navigating on the Screen ............. 2-10 Using the Touchscreen ............. 2-10 Using the Dual Mode Display (Optional) ......2-13 Using the Network Features ..........2-14 Using the LAN ..............2-14 Using the Wireless LAN ............
  • Page 5 Using Getac Software ........... 6-1 OSD Control Panel ..............6-2 G-Manager ................6-3 Getac Camera (Optional) ............6-5 Getac Smart Tag (Optional) ............ 6-6 Chapter 7 Caring for the Computer ..........7-1 Protecting the Computer ............7-2 Using an Anti-Virus Strategy ..........7-2 Using the Cable Lock ............
  • Page 6 System Restore, Refresh, or Reset (for Windows 8 Models) ................8-12 System Recovery (a Tool for Windows 7 Models) ... 8-13 Appendix A Specifications ............... A-1 Appendix B Regulatory Information ..........B-1 On the Use of the System ............B-2 Class B Regulations .............

  • Page 7: Chapter 1 Getting Started

    Chapter 1 Getting Started Congratulations on purchasing this rugged computer. This chapter first tells you step by step how to get the computer up and running. Then, you will find a section briefly introducing the external components of the computer. Getting Started...

  • Page 8: Getting The Computer Running

    Getting the Computer Running Unpacking After unpacking the shipping carton, you should find these standard items: Notebook computer  Accessories:  − Battery pack x 2 − AC adapter − AC power cord − Stylus or digitizer pen (optional) − Tether (optional) −...

  • Page 9: Connecting To Ac Power

    Connecting to AC Power It is suggested that you use AC power when you start up the computer for the very first time. 1. Plug the DC cord of the AC adapter to the power connector of the computer ( ...

  • Page 10: Opening And Closing The Cover

    Opening and Closing the Cover To open the top cover:   1. Pull loose the cover latch ( ) and release the clamp (  2. Lift up the cover ( ). You can tilt the cover forward or backward for optimal viewing clarity.

  • Page 11: Operating In Tablet Mode

    Operating in Tablet Mode In addition to being used as a regular notebook computer (Laptop mode), your computer can also be operated in Tablet mode. In Tablet mode, you operate the computer with a stylus or digitizer pen, or a fingertip, instead of a keyboard or mouse.
  • Page 12 4. Lift the cover latch and engage the clamp on the display. Then, push in the cover latch to click it into place. Getting Started...

  • Page 13: Turning On And Off The Computer

    Turning On and Off the Computer Turning On Press the power button ( ). The Windows operating system should start. Turning Off When you finish a working session, you can stop the system by turning off the power or leaving it in Sleep or Hibernation mode: Do this...

  • Page 14: Taking A Look At The Computer

    Taking a Look at the Computer NOTE: Depending on the model you purchased, the appearance of your computer may not be exactly the same as those shown in this manual. CAUTION: You need to open the protective covers to access the connectors. When not using a connector, make sure to close the cover completely for water- and dust-proof integrity.
  • Page 15 Locks the top cover. P. 1-4 Latch  P2 Button Starts the Getac Camera program and serves P. 6-5 as the shutter release button. When Function Lock is on: Enables or disables the touchscreen feature. Can be changed to another set of predefined functions using G-Manager.

  • Page 16: Rear Components

    Rear Components To access a connector, open its protective cover by lifting up the tab of the cover. When closing the cover, push the tab downward until the cover clicks into place. Component Description See Also  Power Connects the AC adapter. P.

  • Page 17: Right-Side Components

    Right-Side Components To access a connector, open its protective cover by lifting up the tab of the cover. When closing the cover, push the tab downward until the cover clicks into place. To access a device bay, slide the cover latch toward the unlocked position ) and then lift up the tab to release the cover.

  • Page 18: Left-Side Components

    Component Description See Also  ExpressCard Accepts an ExpressCard for additional P. 4-7 Slot functions. Left-Side Components To access a device bay, slide the cover latch toward the unlocked position ) and then lift up the tab to release the cover. When closing the cover, push the tab downward until the cover clicks into place and then slide the latch toward the locked position ( Component...

  • Page 19: Top-Open Components

    Top-open Components Component Description See Also  RFID Antenna Scans and reads RFID (Radio-frequency P. 6-6 (optional) identification) tags. NOTE: For optimal results when reading an RFID tag, have the tag face the antenna in the same orientation as indicated by the icon on the exterior of the computer.
  • Page 20 Component Description See Also  Camera Lens Allows you to use your computer’s camera P. 6-5 (optional) function. When the camera lens is in use, the LED beside it lights up.  Microphone Receives sound and voice to record voice. ...

  • Page 21: Bottom Components

    Component Description See Also Lights green when the RF radio of any RF RF (Radio feature (WLAN/BT/WWAN) is on. Frequency)  Keyboard Serves as the data input device. P. 2-2  Touchpad Serves as the pointing device. P. 2-7 Bottom Components Component Description See Also...
  • Page 22 Component Description See Also  Memory Slots Inside are the memory slots for expanding P. 4-10 the memory size of your computer. SIM Card Slot Inside is the SIM card slot. P. 2-18 (optional)  Antenna Pass- Connects to the docking station for using through external WWAN/GPS/WLAN antenna.

  • Page 23: Installing The Accessories

    Installing the Accessories Attaching the Carrying Strap  Insert one end of the strap into one strap holder ( ) on your computer and   feed it through the slider buckle ( ). Use the fastener ( ) to fix the strap end in place.

  • Page 24: Using The Tether (Optional)

    Using the Tether (Optional) A tether is available for attaching the stylus to your computer. 1. Insert one of the tether’s loop ends through the hole of the stylus (as  indicated by below). Then, insert the other end through the first loop ...

  • Page 25: Attaching The Handgrip Strap (Optional)

    Attaching the Handgrip Strap (Optional) 1. Insert a hook to each of the computer’s four bottom corners. Secure each hook with a screw. 2. Attach the four loops of the handgrip strap to the four hooks. Make sure the loops are securely hooked. When you need to operate and hold your computer at the same time, insert your hand through the strap for a firm grip.

  • Page 27: Operating Your Computer

    Chapter 2 Operating Your Computer This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user, you may choose to read only the parts containing information unique to your computer.

  • Page 28: Using The Internal Keyboard

    Using the Internal Keyboard Your keyboard has all the standard functions of a full-sized computer keyboard plus an Fn key added for specific functions. The standard functions of the keyboard can be further divided into four major categories: Typewriter keys ...

  • Page 29: Numeric Keypad

    Numeric Keypad A 15-key numeric keypad is embedded in the typewriter keys as shown next: Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals.

  • Page 30: Function Keys

    Function Keys On the top row of the keys are the function keys: F1 to F12. Function keys are multi-purpose keys that perform functions defined by individual programs. Fn Key The Fn key, at the lower left corner of the keyboard, is used with another key to perform the alternative function of a key.
  • Page 31 Description Switches the display output to the next choice if an external display is connected. Choices are: LCD only LCD + External display (Duplicate) LCD + External display (Extend) External display only The hot keys are equivalent to Windows logo key + P. Decreases the LCD brightness.

  • Page 32: Windows Keys

    Windows Keys The keyboard has two keys that perform Windows-specific functions: Windows Logo key and Application key. Windows Logo key opens the Start menu and performs software- specific functions when used in combination with other keys. The Application key usually has the same effect as a right mouse click. Operating Your Computer...

  • Page 33: Using The Touchpad

    Using the Touchpad CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface. NOTE: Press Fn+F9 to toggle the touchpad on or off.  For optimal performance of the touchpad, keep your fingers and the ...
  • Page 34 Here are some common terms that you should know when using the touchpad: Term Action Point Move your finger on the pad until the cursor points to the selection on the screen. Click Press and release the left button. –or– Tap gently anywhere on the pad.

  • Page 35: Configuring The Touchpad

    Gestures Actions Descriptions Two-finger pinch Zoom Swipe in from the Open the Charms bar. right edge Swipe down from Perform the same function the top edge as a right-click. Swipe in from the Switch to the previous left edge application. Configuring the Touchpad You may want to configure the touchpad to suit your needs.

  • Page 36: Navigating On The Screen

    Navigating on the Screen The screen of your computer is touch-sensitive. You can operate the computer by touching the screen with your finger (or the stylus/digitizer pen if purchased). CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the touchscreen.
  • Page 37 Using Multi-touch Gestures You can interact with your computer by placing two fingers on the screen. The movement of the fingers across the screen creates “gestures,” which send commands to the computer. Here are the multi-touch gestures that you can use: Actions Gestures Descriptions...
  • Page 38 Actions Gestures Descriptions = finger down; = finger up) Press and Use press and tap to access the shortcut menu. Press on target and tap using a second finger. Two- The function is defined finger by applications that support the specific gesture.

  • Page 39: Using The Dual Mode Display (Optional)

    Using the Dual Mode Display (Optional) Dual mode display (if your model has the feature) incorporates both touchscreen and digitizer functions. The display is set to Touchscreen mode by default. Touchscreen mode provides all the functionalities that an ordinary touchscreen has. When the computer receives signals from the digitizer pen, the display automatically switches to Digitizer mode.

  • Page 40: Using The Network Features

    Using the Network Features Using the LAN To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub. Using the Wireless LAN The WLAN module of your computer supports IEEE 802.11a/b/g/n/ac.
  • Page 41 • For Windows 7: Use either Windows Mobility Center or Getac Quick Bar. To open Getac Quick Bar, tap and hold the Getac Utility icon on Windows taskbar and select Quick Bar. Tap the WLAN button in the Quick Bar (an X over the button means the radio is currently off).

  • Page 42: Using The Bt Feature

    Change PC Settings  Wireless. Slide the BT switch to the On position. • For Windows 7: Use Getac Quick Bar. To open Getac Quick Bar, tap and hold the Getac Utility icon on Windows taskbar and select Quick Bar. Tap the BT button in the Quick Bar (an X over the button means the radio is currently off).

  • Page 43: Connecting To Another Bt Device

    To turn off the BT radio: You can turn off the BT radio the same way you turn it on. If you want to quickly turn off all wireless radio, simply switch on Airplane mode. Connecting to another BT Device 1.

  • Page 44: Using The Wwan Feature (Optional)

    Using the WWAN Feature (Optional) A WWAN (Wireless Wide Area Network) uses mobile telecommunication cellular network technologies to transfer data. The WWAN module of your computer supports 3G and 4G LTE. NOTE: Your model only supports data transmission. Voice transmission is not supported.

  • Page 45: Turning On/Off The Wwan Radio

    On position. • For Windows 7: Use the WWAN utility software or Getac Quick Bar. To open Getac Quick Bar, tap and hold the Getac Utility icon Windows taskbar and select Quick Bar. Tap the WWAN button in the Quick Bar (an X over the button means the radio is currently off).

  • Page 46: Setting Up A Wwan Connection

    To turn off the WWAN radio: You can turn off the WWAN radio the same way you turn it on. If you want to quickly turn off all wireless radio, simply switch on Airplane mode. Setting up a WWAN Connection 1.

  • Page 47: Chapter 3 Managing Power

    Chapter 3 Managing Power Your computer operates either on external AC power or on internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

  • Page 48: Ac Adapter

    AC Adapter CAUTION: The AC adapter is designed for use with your computer only. Connecting  the AC adapter to another device can damage the adapter. The AC power cord supplied with your computer is for use in the  country where you purchased your computer.

  • Page 49: Battery Pack

    Battery Pack Your computer has two battery packs. The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter. NOTE: Care and maintenance information for the battery is provided in the “Battery Pack Guidelines” section in Chapter 7. Charging the Battery Pack NOTE: Charging will not start if the battery’s temperature is outside the allowed...

  • Page 50: Initializing The Battery Pack

    Initializing the Battery Pack You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected. Initializing is the process of fully charging, discharging, and then charging. It can take several hours.

  • Page 51: Battery Low Signals And Actions

    Switch The value of the corresponding green segment indicates the relative percentage of the battery charge. The battery pack is fully discharged when you see no segment glowing green. Battery Low Signals and Actions The battery icon changes appearance to display the current state of the battery.

  • Page 52: Replacing The Battery Pack

    Replacing the Battery Pack CAUTION: There is danger of explosion if the battery is incorrectly replaced.  Replace the battery only with the computer manufacturer’s battery packs. Discard used batteries according to the dealer’s instructions. Do not attempt to disassemble the battery pack. ...
  • Page 53 CAUTION: To unlock or lock, always hold the battery latch itself to move it. Never use the ribbon strip to pull the battery latch. The wrong method can cause a broken strip or an incorrect battery pack installation. 3. Remove the battery pack out of the slot by pulling the ribbon strip. 4.

  • Page 54: Power-Saving Tips

    Power-Saving Tips Aside from enabling your computer’s power saving mode, you can do your part to maximize the battery’s operating time by following these suggestions. Do not disable Power Management.  Decrease the LCD brightness to the lowest comfortable level. ...

  • Page 55: Expanding Your Computer

    Chapter 4 Expanding Your Computer You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter. Expanding Your Computer...

  • Page 56: Connecting An Hdmi Display Monitor

    Connecting an HDMI Display Monitor If you want the benefits of a larger display screen with higher resolution, you can connect an external display monitor to your computer. Your computer supports an HDMI connector. HDMI (High-Definition Multimedia Interface) is an audio/video interface that transmits uncompressed digital data and therefore delivers true HD quality.

  • Page 57: Connecting A Usb Device

    Connecting a USB Device Your computer has three USB ports (two USB 3.0 ports at the rear and one USB 2.0 port at the right side) for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse. USB 3.0 supports a transfer rate up to 5 Gbit/s and USB 2.0 a transfer rate up to 480 MB/s.

  • Page 58: Connecting A Serial Device

    Connecting a Serial Device Your computer has a serial port for connecting a serial device such as a serial mouse or serial communication device. Expanding Your Computer...

  • Page 59: Connecting An Audio Device

    Connecting an Audio Device For higher audio quality, you can send sound through an external audio device. The combo connector is the “4-pole TRRS 3.5mm” type (Apple iPhone Recessed) so you can connect a compatible headset microphone. SAFETY WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.

  • Page 60: Using Smart Cards

    Using Smart Cards Your computer has a smart card slot. With an embedded microcontroller, smart cards have the unique ability to store large amounts of data, carry out their own on-card functions (e.g., encryption and mutual authentication), and interact intelligently with a smart card reader.

  • Page 61: Using Expresscards

    Using ExpressCards Your computer has an ExpressCard slot. The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm (ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive range of applications including memory, wired and wireless communication cards, and security devices. To insert an ExpressCard: 1.
  • Page 62 3. Open the cover. 4. Pull the card out of the slot. 5. Close the cover. Expanding Your Computer...

  • Page 63: Replacing The Hard Disk Drive

    Replacing the Hard Disk Drive 1. Turn off the computer and disconnect the AC adapter.  2. Slide the cover latch toward the unlocked position ( ) and then lift  up the tab ( ) to release the cover. 3.

  • Page 64: To Install Ram Module

    CAUTION: It is not recommended that you buy and install RAM modules by  yourself. If you want to expand system memory, please ask Getac service center to install DRAM modules for you so that full compatibility can be guaranteed.
  • Page 65 4. Remove the plastic bar by unfastening two screws. 5. To install the RAM module, match the module's notched part with the socket's projected part and firmly insert the module into the socket at a  20-degree angle ( ). Then push down until the retaining clips lock the ...

  • Page 67: Using Bios Setup

    Chapter 5 Using BIOS Setup BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer. BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand.

  • Page 68: When And How To Use

    When and How to Use You need to run BIOS Setup Utility when: You see an error message on the screen requesting you to run BIOS  Setup Utility. You want to restore the factory default BIOS settings.  You want to modify some specific settings according to the hardware. ...

  • Page 69: Menu Descriptions

    Menu Descriptions Information Menu The Information menu contains the basic configuration information of the system. There are no user-definable items in this menu. NOTE: The “Asset Tag” information appears when you have entered the asset number for this computer using the asset management program. The program is provided in the Asset tag folder of the Driver disc.

  • Page 70: Advanced Menu

    Advanced Menu The Advanced menu contains the advanced settings. Wake Up Capability  Any-key Wake Up From S3 allows any key to wake up the system from S3 (Sleep) state. USB Wake-Up From S3 allow a USB device activity to wake up the system from S3 (Sleep) state.

  • Page 71: Security Menu

    Security Menu The Security menu contains the security settings, which safeguard your system against unauthorized use. NOTE: You can set the user password only when the supervisor password has  been set. If both the supervisor and user passwords are set, you can enter any of ...

  • Page 72: Boot Menu

    TPM Setup Menu  TPM Support enables or disables TPM (Trusted Platform Module) support. TPM (Trusted Platform Module) is a component on your computer’s mainboard that is specifically designed to enhance platform security by providing a protected space for key operations and other security critical tasks.

  • Page 73: Using Getac Software

    Chapter 6 Using Getac Software Getac software includes application programs for specific computer components and utility programs for overall management. This chapter briefly describes the programs. Using Getac Software...

  • Page 74: Osd Control Panel

    To open the OSD Control Panel, start the program named OSDC. If you have a Windows 7 model, you can also press the Windows Logo button on your computer to open it. The following screen appears. Help For detailed information on the program, see the program’s online help. Using Getac Software...

  • Page 75: G-Manager

    Monitor the system.  View the GPS information (select models only).  Tap and hold the Getac Utility icon located on Windows taskbar and select G-Manager to start the program. The G-Manager window appears, containing several tabs. NOTE: Depending on your model, the actual items and information appearing on the screen may differ from those shown in this manual.
  • Page 76 Help For detailed information on the program, see the program’s online help. Using Getac Software...

  • Page 77: Getac Camera (Optional)

    Getac Camera (Optional) Getac Camera is a geo-tagging camera program, which allows you to stamp geographical information on photos as watermarks and embed such information into JPEG files as EXIF 2.2 metadata. NOTE: Getac Camera works with Virtual-GPS (a separate application ...

  • Page 78: Getac Smart Tag (Optional)

    Getac Smart Tag (Optional) If your model has the RFID reader/writer module, you can use Getac Smart Tag to read UID numbers from RFID tags (14443-A, 14443-B, and 15693 types). Start Getac Smart Tag. The Getac Smart Tag floating button appears and is always on top of the screen.

  • Page 79: Caring For The Computer

    Chapter 7 Caring for the Computer Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer. This chapter gives you guidelines covering areas such as protecting, storing, cleaning, and traveling. Caring for the Computer...

  • Page 80: Protecting The Computer

    Protecting the Computer To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section. Using an Anti-Virus Strategy You can install a virus-detecting program to monitor potential viruses that could damage your files.

  • Page 81: Taking Care Of The Computer

    Taking Care of the Computer Location Guidelines For optimal performance, use the computer where the recommended  temperature is between 0 °C (32 °F) and 55 °C (131 °F). Actual operating temperature depends on product specifications. Avoid placing the computer in a location subject to high humidity, ...

  • Page 82: General Guidelines

    General Guidelines Do not expose your skin to the computer when operating it in a very hot  or cold environment. Do not place heavy objects on top of the computer as this may damage  the display. The screen surface is easily scratched. Avoid touching it with a sharp ...

  • Page 83: Battery Pack Guidelines

    Battery Pack Guidelines Recharge the battery pack when it is nearly discharged. When  recharging, make sure that the battery pack is fully charged. Doing so may avoid harm to the battery pack. The battery pack is a consumable product and the following conditions ...

  • Page 84: Touchscreen Guidelines

    – charging time will be prolonged when the computer is turned on. To shorten the charging time, it is recommended that you place the computer in Sleep or hibernation mode. – a low temperature will prolong the charging time as well as hasten the discharge time.

  • Page 85: When Traveling

    When Traveling Before traveling with your computer, make a backup of your hard disk  data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data. Make sure that the battery pack is fully charged. ...

  • Page 87: Chapter 8 Troubleshooting

    Chapter 8 Troubleshooting Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved. This chapter tells you what actions to take when solving common computer problems.

  • Page 88: Preliminary Checklist

    Preliminary Checklist Here are helpful hints to follow before you take further actions when you encounter any problem: Try to isolate which part of the computer is causing the problem.  Make sure that you turn on all peripheral devices before turning on the ...

  • Page 89: Solving Common Problems

    Solving Common Problems Battery Problems The battery does not charge (Battery Charge indicator does not light amber). Make sure that the AC adapter is properly connected.  Make sure that the battery is not too hot or cold. Allow time for the ...

  • Page 90: Display Problems

    Make sure that the other device is not in “Hidden” mode.  Make sure that both devices are compatible.  Display Problems Nothing appears on the screen. During operation, the screen may automatically turn off as a result of  power management.

  • Page 91: Hardware Device Problems

    Hardware Device Problems The computer does not recognize a newly installed device. The device may not be correctly configured in the BIOS Setup program.  Run the BIOS Setup program to identify the new type. Make sure if any device driver needs to be installed. (Refer to the ...

  • Page 92: Lan Problems

    LAN Problems I cannot access the network. Make sure that the LAN cable is properly connected to the RJ-45  connector and the network hub. Make sure that the network configuration is appropriate.  Make sure that the user name or password is correct. ...

  • Page 93: Sensor Problems (For Windows 8 Models Only)

    Sensor Problems (for Windows 8 Models Only) The built-in digital compass doesn’t seem to be accurate. Rotating the display can affect the accuracy of the digital compass. This is  normal, not a malfunction. The sensors for the compass require periodic recalibration.

  • Page 94: Software Problems

    Software Problems An application program does not work correctly. Make sure that the software is correctly installed.  If an error message appears on the screen, consult the software  program’s documentation for further information. If you are sure the operation has stop, reset the computer. (See ...

  • Page 95: Wireless Lan Problems

    When you turn on the computer, it stops after POST. Reset your computer. (See “Resetting the computer” later in this  chapter.) Wireless LAN Problems I cannot use the wireless LAN feature. Make sure that the wireless LAN feature is turned on. ...

  • Page 96: Other Problems

    I cannot communicate with the computer in the network when Infrastructure mode is configured. Make sure that the Access Point your computer is associated with is  powered on and all the LEDs are working properly. If the operating radio channel is in poor quality, change the Access Point ...

  • Page 97: Resetting The Computer

    Resetting the Computer You may have to reset (reboot) your computer on some occasions when an error occurs and the program you are using hangs up. If you are sure the operation has stopped and you cannot use the “restart” function of the operating system, reset the computer.

  • Page 98: System Recovery

    System Recovery System Restore, Refresh, or Reset (for Windows 8 Models) If you're having problems with your Windows 8 computer, you can try to restore, refresh, or reset it. To restore your computer to an earlier point in time: 1. Enter Recovery in the search box. 2.

  • Page 99: System Recovery (A Tool For Windows 7 Models)

    System Recovery (a Tool for Windows 7 Models) Use System Recovery when: The Windows 7 operating system does not start at all.  You want to restore the system to the factory state.  WARNING: Using this feature will reinstall Windows to your system and configure it ...
  • Page 100 5. The progress bar shows the percentage completed. When it reaches 100%, the system turns off. 6. Turn on the computer. The Windows setup wizard starts. Follow the onscreen prompts to continue. 7. When the system restarts, the installer screen appears. The installer will perform system hardware detection and driver installation.

  • Page 101: Appendix A Specifications

    Appendix A Specifications NOTE: Specifications are subject to change without any prior notice. Parts Specifications Haswell Intel® Core™ i5/i7 processor BIOS Phoenix, Flash EEPROM, supporting UEFI, NIST, ACPI, and TPM 4GB/8GB DDR3L 1600MHz SO-DIMM Video Controller UMA - Intel® GT2 Display Panel 11.6-inch (16:9) TFT LCD, HD 1366x768, sunlight readable, 800 Nits maximum brightness Audio...
  • Page 102 Parts Specifications Wireless LAN + BT IEEE 802.11ac, compatible with 802.11a/b/g/n, BT 4.0 + EDR GPS (option) NMEA0183 WWAN (option) 3G/4G LTE Camera (option) Front: HD Rear: 5M pixel, autofocus, LED, video capture RFID Reader (option) Contactless, UART, supporting ISO14443A/B and 15693 Security Kensington lock...

  • Page 103: Appendix B Regulatory Information

    Appendix B Regulatory Information This appendix provides regulatory statements and safety notices on your computer. NOTE: Marking labels located on the exterior of your computer indicate the regulations that your model complies with. Please check the marking labels and refer to the corresponding statements in this appendix. Some notices apply to specific models only.

  • Page 104: On The Use Of The System

    On the Use of the System Class B Regulations Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 105: Ansi Warning

    Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This Class B digital apparatus meets all requirements of the Canada Interference-Causing equipment regulations. Cet appareil numérique de Classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouileur. This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

  • Page 106: Safety Notices

    Safety Notices About the Battery Caution Texts Concerning Lithium Batteries DANISH ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. NORWEGIAN ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten.
  • Page 107 type équivalent recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant. Attention (for USA Users) The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream.

  • Page 108: On The Use Of The Rf Device

    On the Use of the RF Device USA and Canada Safety Requirements and Notices IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 109 environment. However, there is no guarantee that interference will not occur in a particular commercial installation, or if operated in a residential area. If harmful interference with radio or television reception occurs when the device is turned on, the user must correct the situation at the user’s own expense.

  • Page 110: European Union Ce Marking And Compliance Notices

    European Union CE Marking and Compliance Notices Statements of Compliance English This product follows the provisions of the European Directive 1999/5/EC. Danish Dette produkt er i overensstemmelse med det europæiske direktiv 1999/5/EC. Dutch Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC.
  • Page 111 Portuguese Este produto cumpre com as normas da Diretiva Européia 1999/5/EC. Spanish Este producto cumple con las normas del Directivo Europeo 1999/5/EC. Swedish Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC. Restrictions This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range.

Table of Contents

Save PDF
