Panel Descriptions

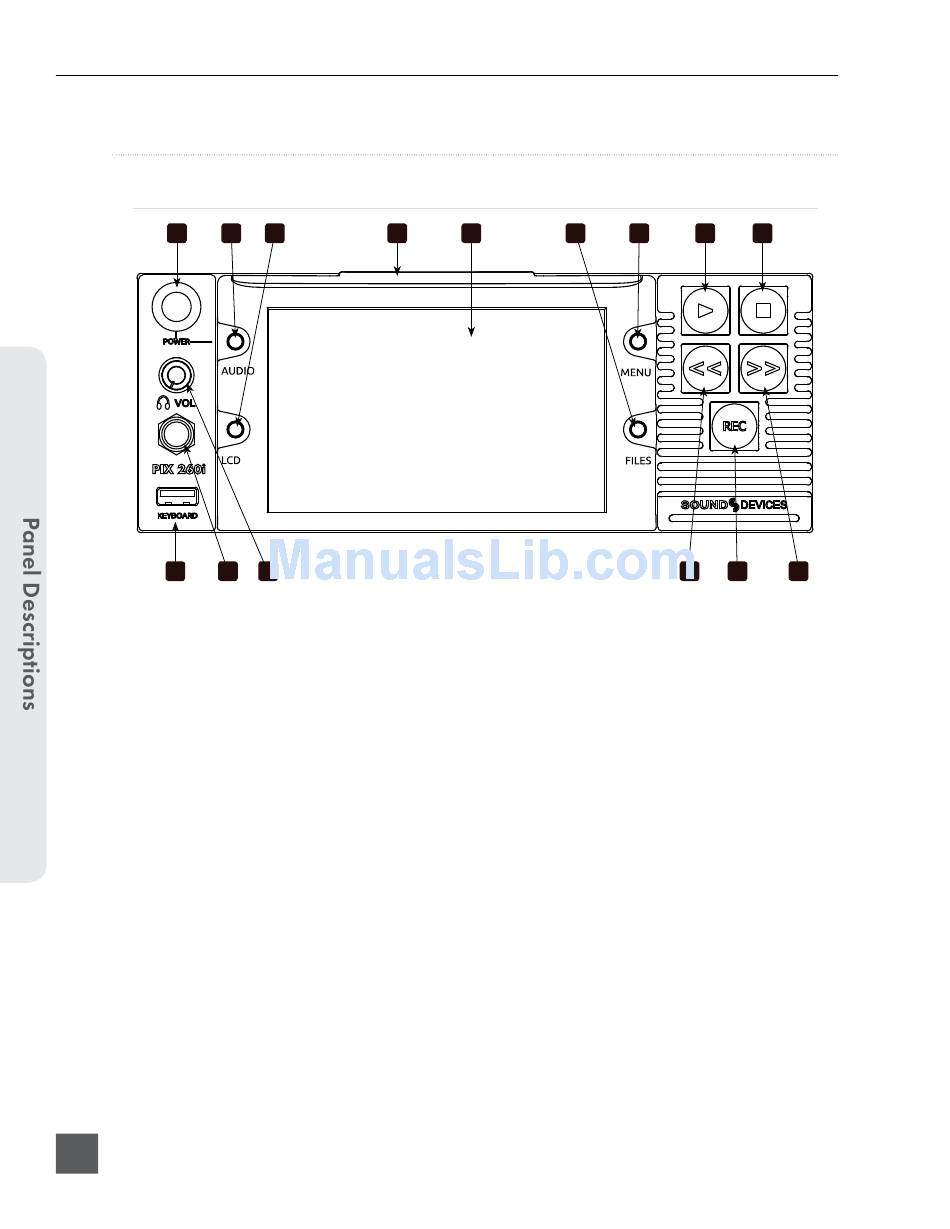

Front Panel

1 2
15 14
Control Knob
1)
The Control Knob can be both turned and
pressed. Use the Control Knob to navi-
gate between menu settings and to select
menu items. Pressing during playback or
stop will toggle to Shuttle mode. Turning
while playback is paused will jog forward
or backward by single frames.
AUDIO Button
2)
Displays the Audio Setup Screen or
Audio Recording Screen. From the Audio
Setup Screen: Select audio input sources,
Arm/disarm tracks, Set audio input gain
and delay,View audio input levels, and
Edit audio track names.
LCD Button
3)
Toggles the On-Screen Display. Hold for 2
seconds to toggle LCD on/off.
Handle
4)
This handle is designed to provide a grip-
ping point for tilting down the LCD.
2
v. 1.50 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
3 4
13
5 6 7
LCD Display
5)
Displays operating information when the
On-Screen Display (OSD) is
"On-screen Display", page
terface, source video, and playback video.
5-inch display; 800x480 resolution.
FILES Button
6)
Displays the File Browser Screen. Press
FILES + Fast Forward (>>) during record
or playback to add a Cue Marker. Press
FILES + Rewind (<<) to delete a Cue
Marker (Video Mode).
MENU Button
7)
Displays the Setup Menu.
PLAY Button
8)
Plays the most recently recorded file
when pressed. In the File List View, plays
the selected video file from the File List.
Pauses video during playback. Press and
hold Play to activate Loop Play.
STOP Button
9)
Stops an active recording or playback.
When Stopped, hold the Stop button to
display the next filename.
8 9
12 11 10
active(See
6), user in-
