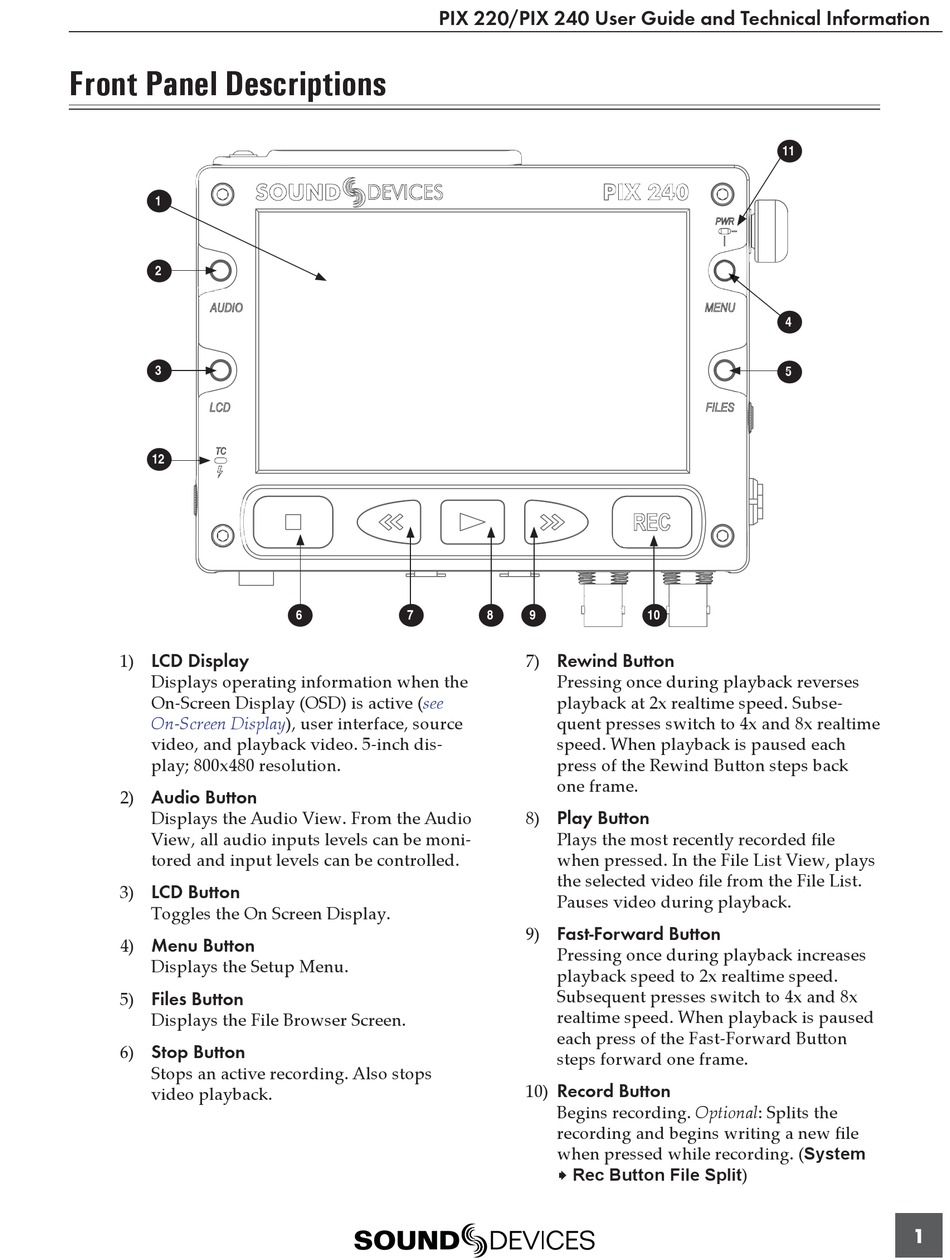

Front Panel Descriptions

1
2
3
12
LCD Display
1)
Displays operating information when the
On-Screen Display (OSD) is active
On-Screen Display), user interface, source
video, and playback video. 5-inch dis-
play; 800x480 resolution.
Audio Button
2)
Displays the Audio View. From the Audio
View, all audio inputs levels can be moni-
tored and input levels can be controlled.
LCD Button
3)
Toggles the On Screen Display.
Menu Button
4)
Displays the Setup Menu.
Files Button
5)
Displays the File Browser Screen.
Stop Button
6)
Stops an active recording. Also stops
video playback.
PIX 220/PIX 240 User Guide and Technical Information
6 7
(see
8 9 10
Rewind Button
7)
Pressing once during playback reverses
playback at 2x realtime speed. Subse-
quent presses switch to 4x and 8x realtime
speed. When playback is paused each
press of the Rewind Bu on steps back
one frame.
Play Button
8)
Plays the most recently recorded  le
when pressed. In the File List View, plays
the selected video  le from the File List.
Pauses video during playback.
Fast-Forward Button
9)
Pressing once during playback increases
playback speed to 2x realtime speed.
Subsequent presses switch to 4x and 8x
realtime speed. When playback is paused
each press of the Fast-Forward Bu on
steps forward one frame.
Record Button
10)
Begins recording. Optional: Splits the
recording and begins writing a new  le
when pressed while recording. (System
Rec Button File Split)
11
4
5
